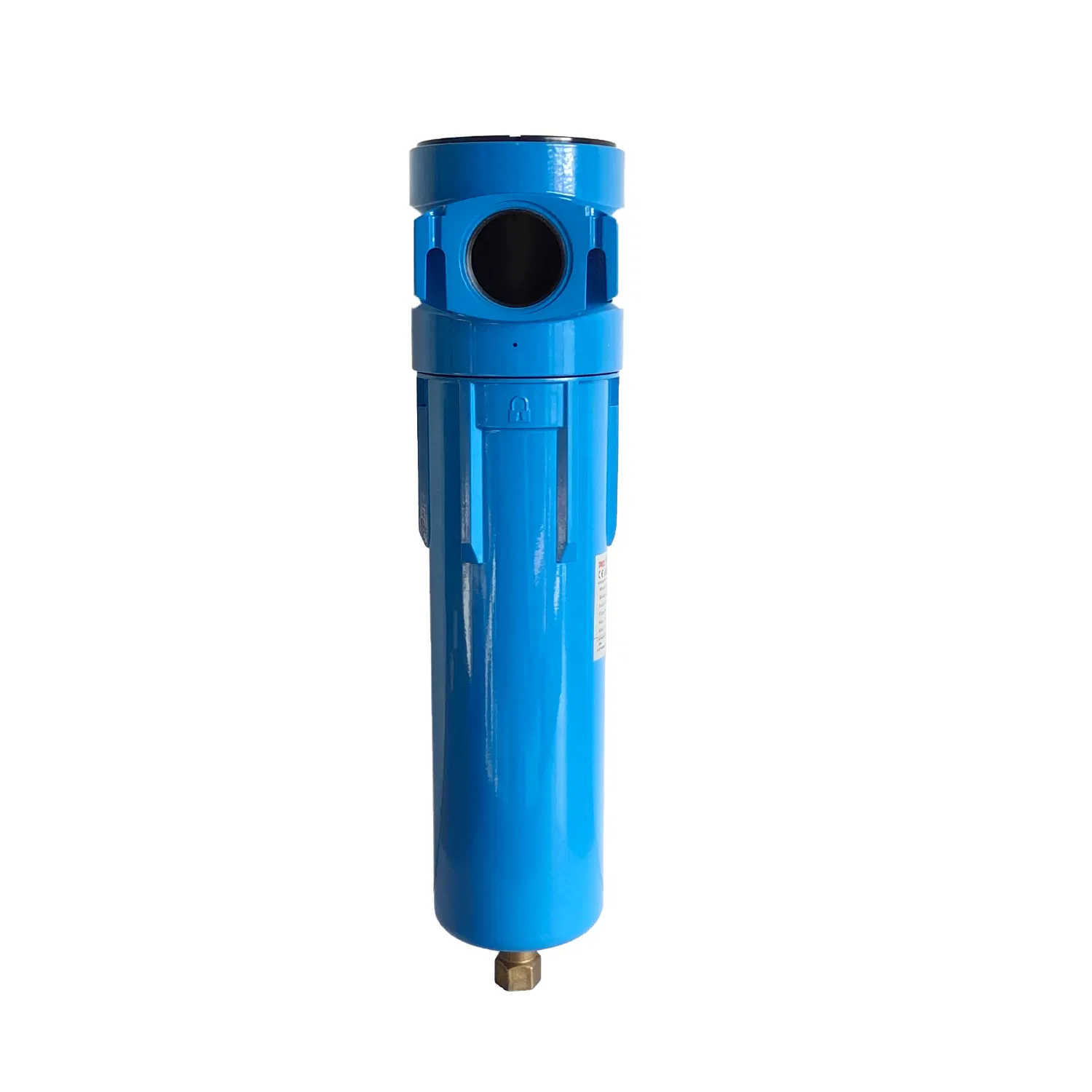

Product Description

How to choose your Apposite Air Filter?

The below step will will help you to choose the situable filter for your application.
If there is any point you do NOT understand, please contact YUKA's application engineers.

1. Assess the requirements of your application. Different industry require different solution.

2. What type of filtration is needed? Coalecent filter material removes solid and liquied contaminants from gas streams.
Particulate filter media removes solid from gas streams. Absorber media removes hydrocarbon vapors from gas streams.

3. Any specific micron of filtration performance you required?

4. What are the working conditions of your application? Mainly criteria of consider :
Flow, working pressure, temperature,pressure loss,material of structure (stainless steel, aluminum alloy, mild steel, carbon steel)

5. Filter flow rate from how much SCFM? Pressure drop should be less than **bar? For saving the cost and protect environment.

YUKA Product's Feature & Benefit

1. Aluminum alloy material, 15 years service life for filter housing in working condition from 1.5ºC to 80ºC.
Maxi. The pressure is 1.6Mpa.
2. 6000 ~ 8000 hours life time for filter element, filter performance up to 99%
3. Integrated die-cast filter up to 3 inches, flow rate up to 37.2 m³ / min.
4. Alternative for the Domnick Hunter Oil X Plus series.

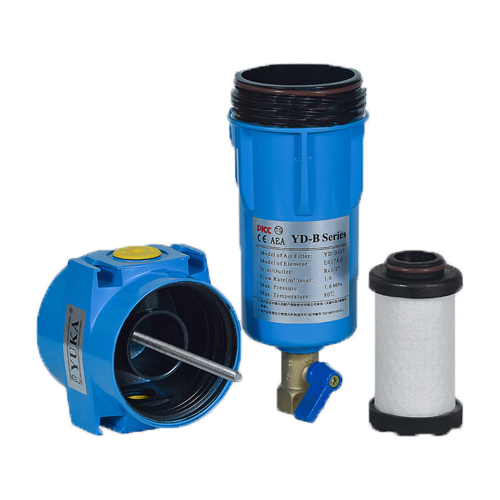

7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR

PF	AO	AA	AX	ACS	AR	AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible	High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w).	High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w)	Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w)	Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w)	Dust particles whose diameter more than 1μm can be removed	Dust particles whose diameter more than 0.01μm can be removed

Technical Specification
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For application in other working pressure, please refer to the correction factors.

Model	Pipe Size	Max Flow rates			Dimension(mm)
Model	Pipe Size	L/S	m³/min	cfm	W (Width)	D (Diameter)	H (Height)	A	B	C(clearance for housing)
YD-B017	RC1/2"	16.7	1.0	35.3	89	79	239	40	197	182
YD-B025	RC3/4"	25.0	1.5	53.0	89	79	239	40	197	182
YD-B030	RC1/2"	30.0	1.8	63.6	89	79	273	40	232	217
YD-B035	RC3/4"	33.3	2.0	70.6	89	79	273	40	232	217
YD-B058	RC3/4"	46.7	2.8	98.9	120	110	349	55	290	264
YD-B068	RC1"	60.0	3.6	127.1	120	110	369	55	310	264
YD-B080	RC1"	80.0	4.8	169.5	120	110	468	55	410	357
YD-B145	RC1-1/2"	120.0	7.2	254.2	120	110	468	55	410	357
YD-B220	RC2"	200.0	12.0	423.7	162	151	593	64	526	485
YD-B260	RC2-1/2"	233.3	14.0	494.4	162	151	593	64	526	485
YD-B330	RC2"	267.2	16.0	564.8	162	151	873	64	806	760
YD-B360	RC2-1/2"	317.3	19.0	670.7	162	151	873	64	806	760
YD-B405	RC2-1/2"	367.4	22.0	776.6	200	189	637	78	558	508
YD-B430	RC3"	467.6	28.0	988.4	200	189	637	78	558	508
YD-B620	RC3"	620.0	37.2	1313.6	200	189	892	78	815	762
Technical requirements	Maximum operating pressure: 16 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C

Pressure	Barg	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
Pressure	Psig	15	29	44	59	73	87	100	116	131	145	160	174	189	203	219	232
Correction factor		0.38	0.53	0.65	0.76	0.85	0.93	1.00	1.07	1.13	1.19	1.23	1.31	1.36	1.41	1.46	1.51

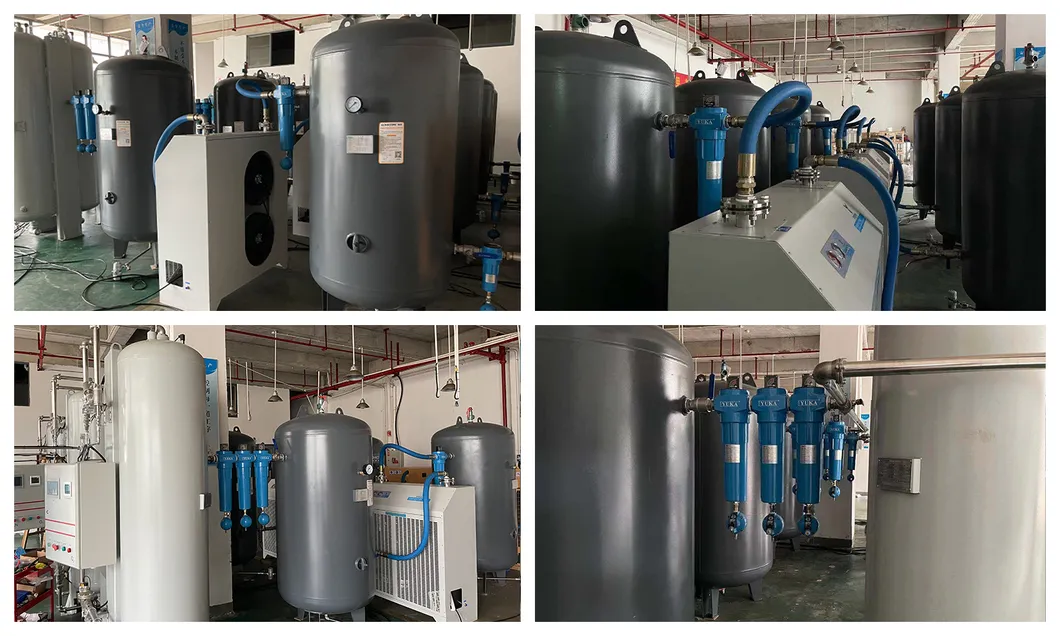

Product Application
Customized Air Compressor Filter with High Quality Air Filtration System From China Supplier

YUKA Certificates
Customized Air Compressor Filter with High Quality Air Filtration System From China Supplier

YUKA Patents

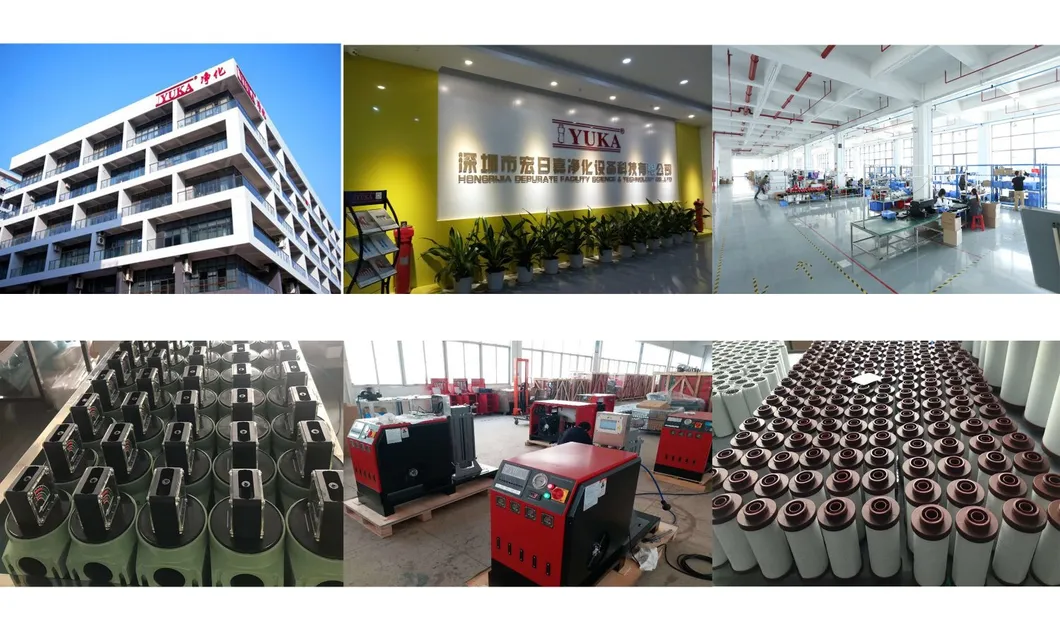

YUKA Factory
Customized Air Compressor Filter with High Quality Air Filtration System From China Supplier

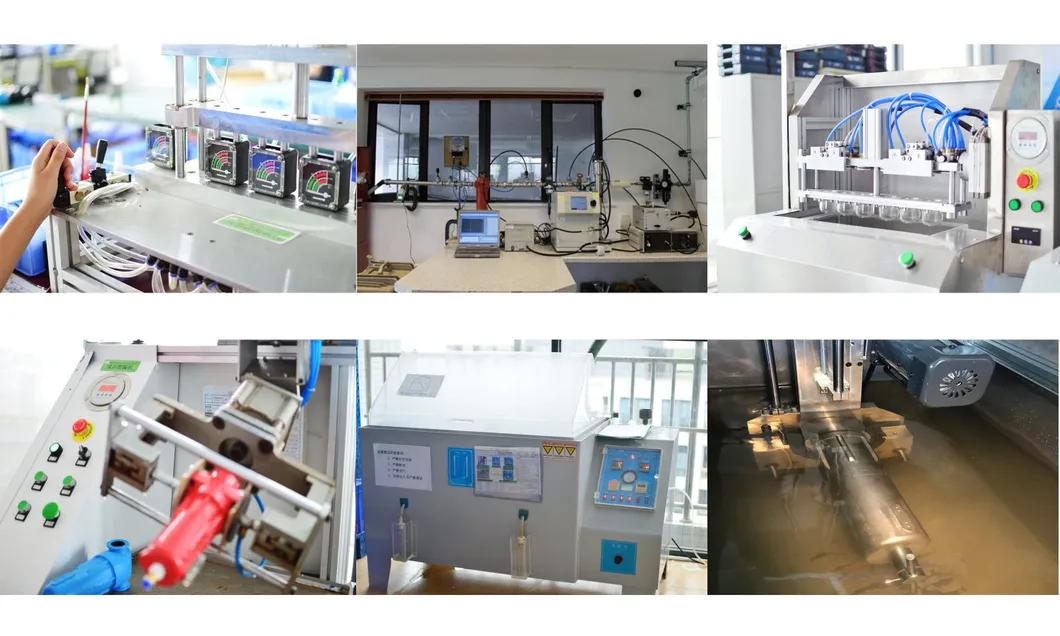

YUKA Facility

YUKA in Shanghai ComVac Asia & Hannover Messe Exhibition

YUKA Delivery

Customized Air Compressor Filter with High Quality Air Filtration System From China Supplier

YUKA service
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty

Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.

Frequently Asked Questions
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
