Product Description

Fiberglass Media in 200degress Temperature Resistance

Application
Suitable as pre-filter in general air conditioning system. Applies to mist exhaust system of dry coating engineering such as painting booth and car painting room. Also plays as exhaust gas filter in spray booth.
Advantages
Adopt non-woven ways, use long glass fiber to make into a conformation that density of fiber increase gradually.
The glass fibers are strong and resilient, will catch paint mist with high efficiency and low resistance.
Density of fibers increases gradually, which will block particles of various sizes in different density layers. It has a large dust-holding capacity.
Low cost together with long service life, will keep original shape under definitive air flow.
Good temperature resistance, will tolerance as high as 170ºC.
Good wet fastness, will tolerance as high as 100%RH.

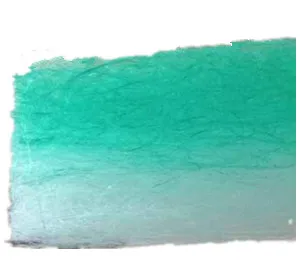

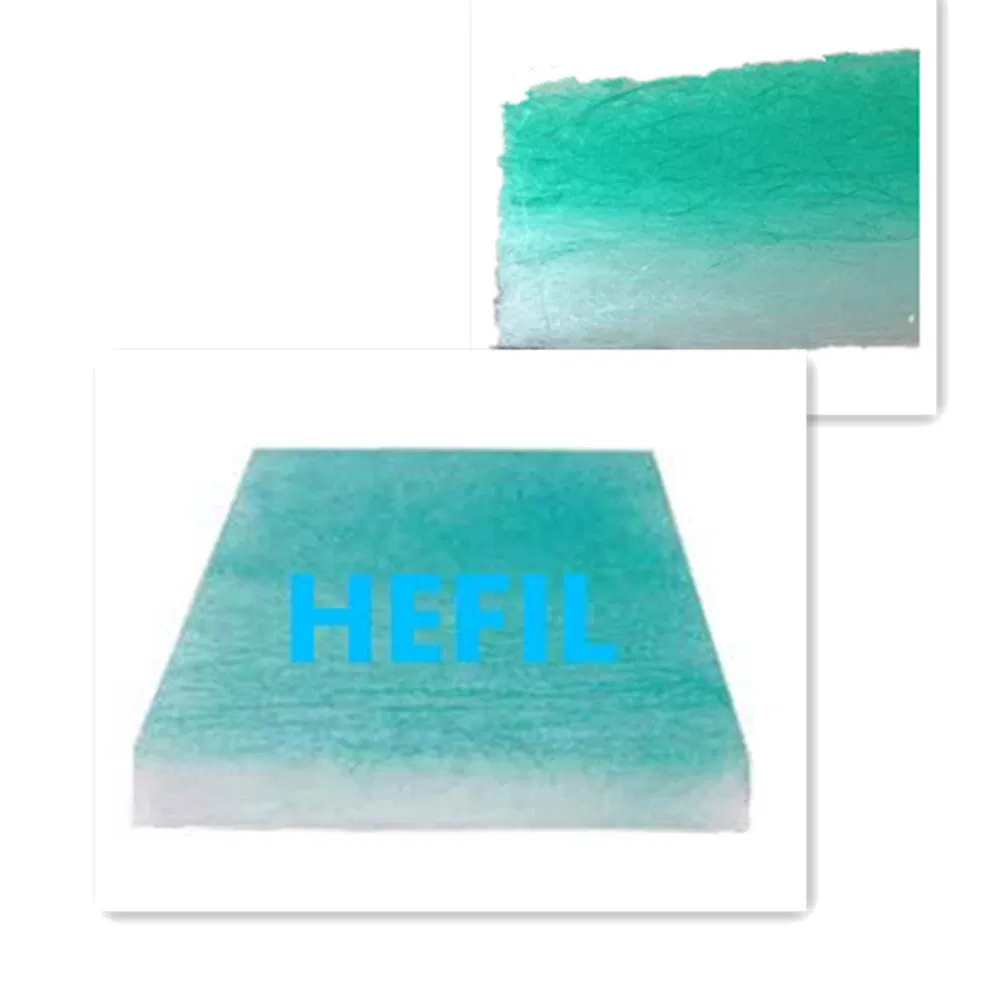

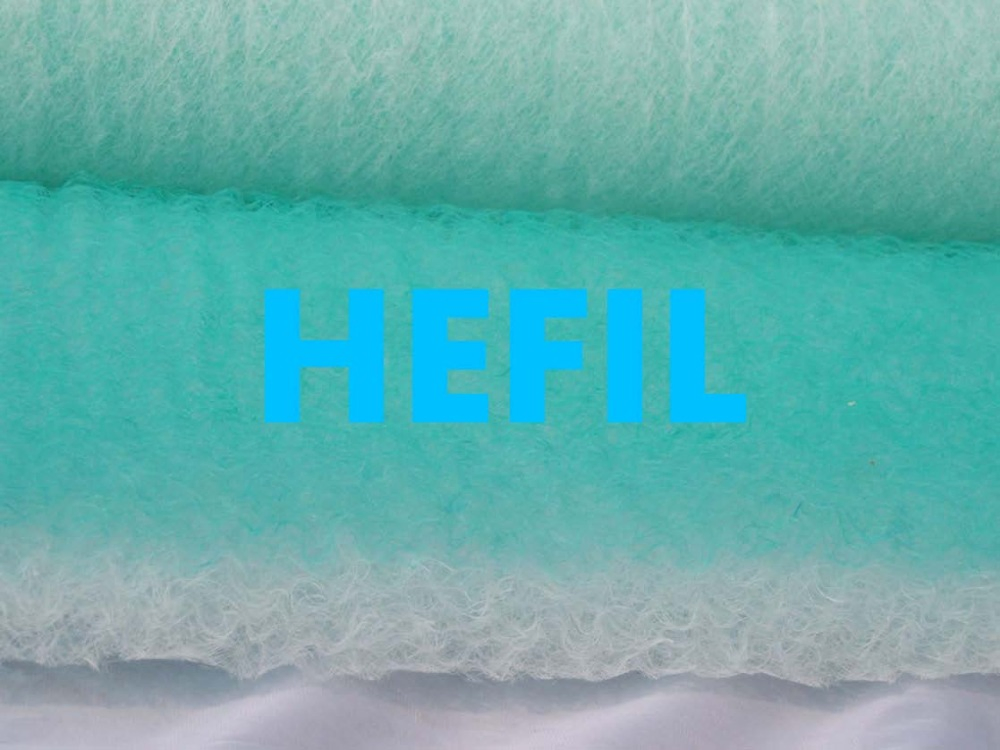

The direction of catching dust is distinguished by color, the white color is air inlet side and the green is air outlet side.

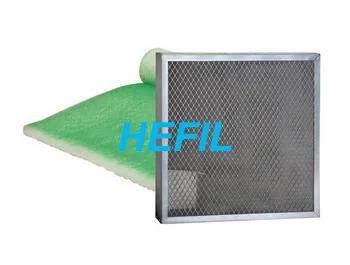

Can be with galvanized steel or aluminum alloy frame and metal mesh as supporter on the exhaust side, effectively prevent deformation of the separator under high-speed airflow.
Meet EN779:2012.

Material Instructions
Media: Long fiberglass.
Frame: Galvanized steel, aluminum alloy frame and metal mesh in the air outlet side.
Common Specifications & Performance Parameters

Model	HGF-50	HGF-100

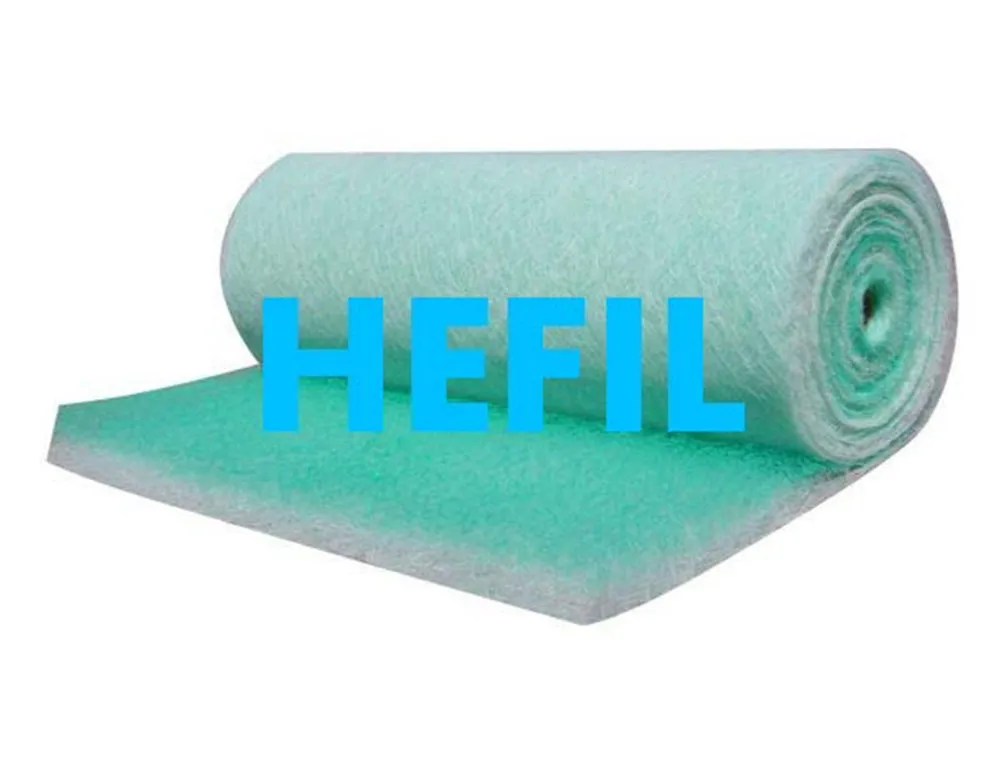

Common Size	50mmT×1m×20m 50mmT×2m×20m	100mmT×1m×20m 100mmT×2m×20m
Average Trapping Efficiency	92~97%	97~99%
Initial Pressure Drop	10 Pa	15 Pa
Final Pressure Drop	130 Pa	150 Pa
Heat Resistance	170 .Pa

Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: www.hefilter.com.
2. HEFIL makes various of other models' HGF separator not listed in above table. Please consult with us if you need.
