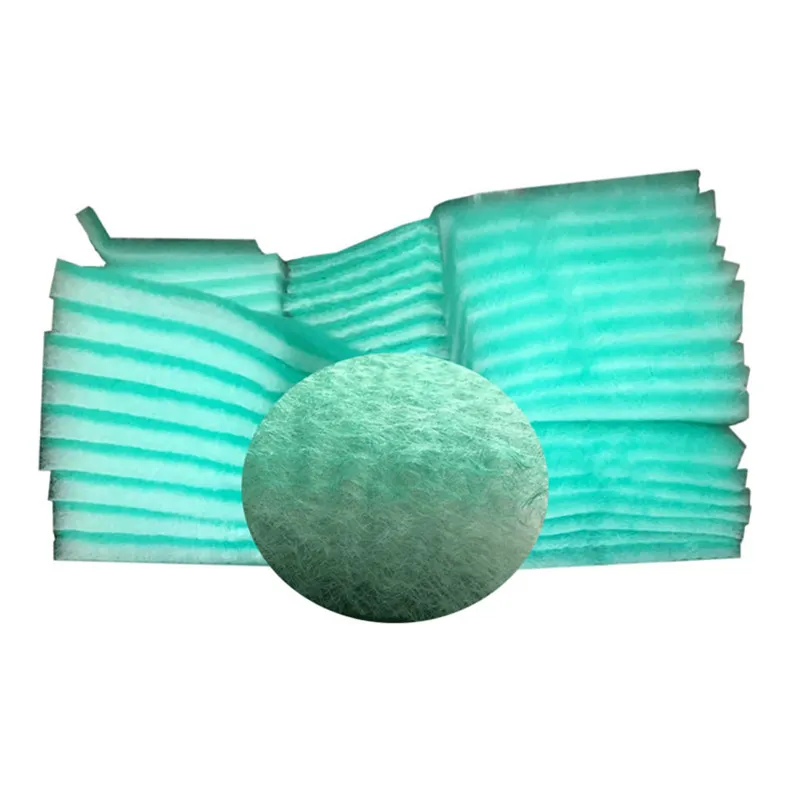

Fire Proof Fiber Glass Floor Filter
Fire proof fiber glass floor filter/paint mist arrestor rollProduct Description:It is a high-arrestance filter made of high strength glass fiber with gradual density. Low compressibility keeps its shape and makes fiber purified air effectively. It can absorb the excess particles during paint-sprayin......
Send Inquiry
Product Description
Product Description:
It is a high-arrestance filter made of high strength glass fiber with gradual density. Low compressibility keeps its shape and makes fiber purified air effectively. It can absorb the excess particles during paint-spraying operation and reducing pollution to the environment, makes the exhausted air more
environmental-friendly and inner circulating air more clean.
Fetures
·Low initial resistance
·High separation efficiency
·Different color on inlet and outlet side
·Flexible
·Economical and practical
Application
used in the spray booth or filter mist in the kitchen
Type: supply pads or rolls size

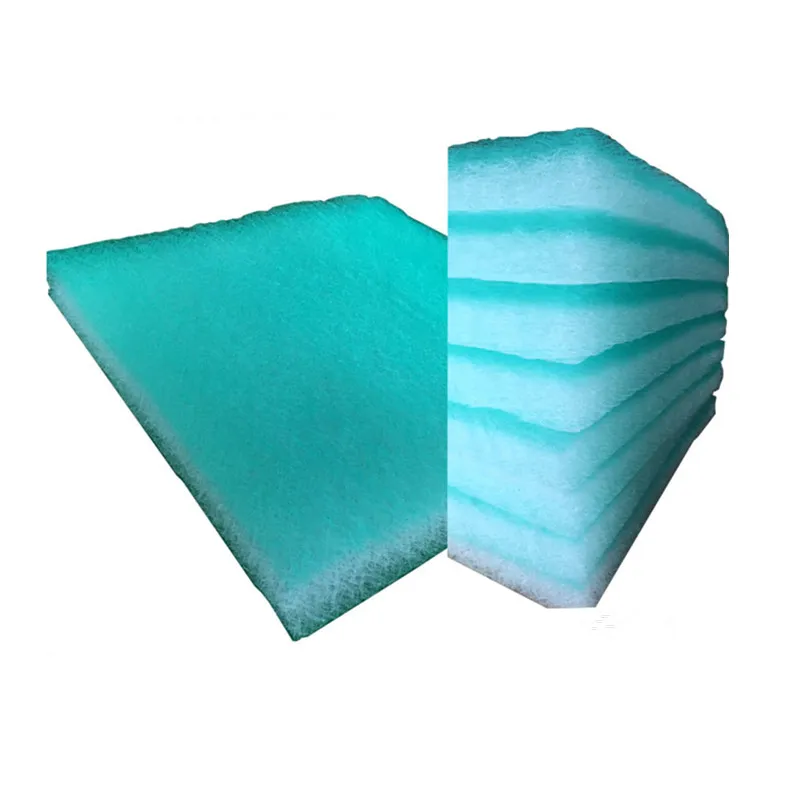

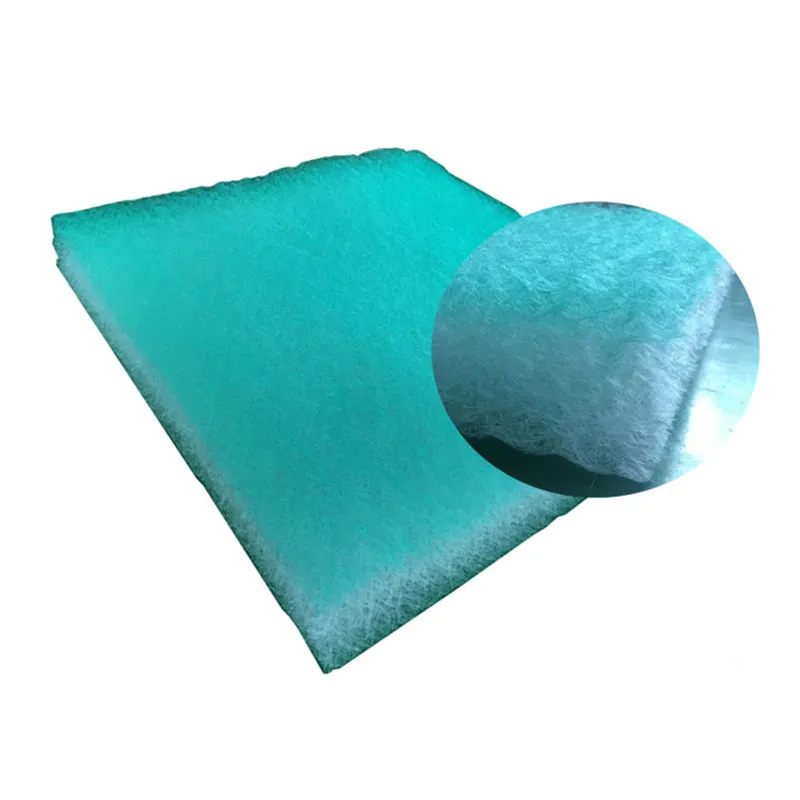

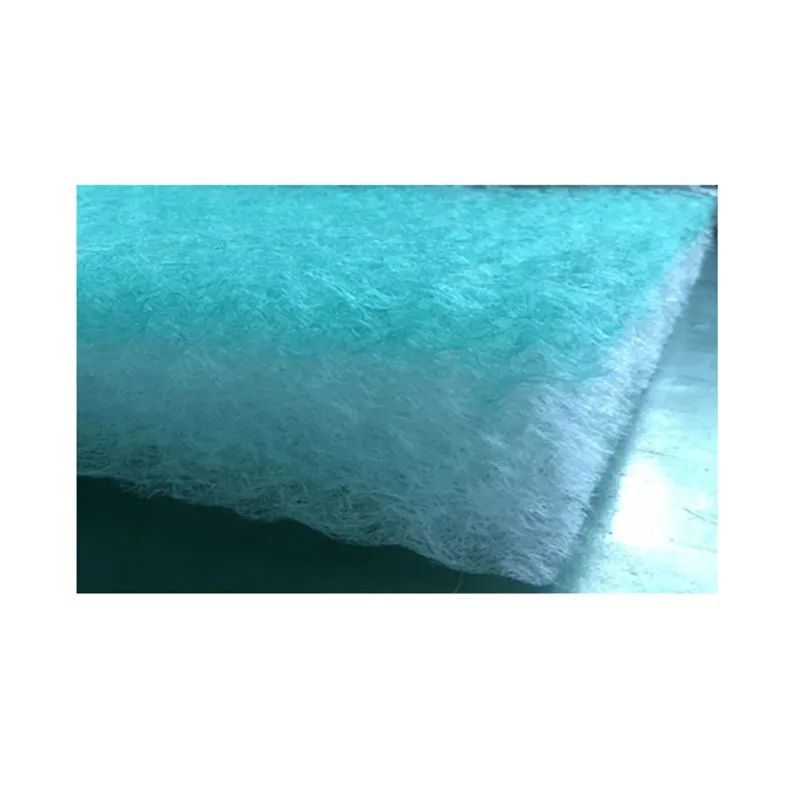

Media: fiber glass with gradual density, inlet side is
green,outlet side is white
EN779 class: G2,G3,G4
Average arrestance:93%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU2,EU3,EU4
Average separation efficiency: 95%
Final resistance: (suggested) 130Pa-200Pa
Temperature resistance: 170ºC
Product parameter
Type | Dimensions | Rated air velocity(m/s) |
Initial pressure drop (Pa) | Rated air flow(m2/h) | ||
Length(m) | Width(m) | Thickness(mm) | ||||

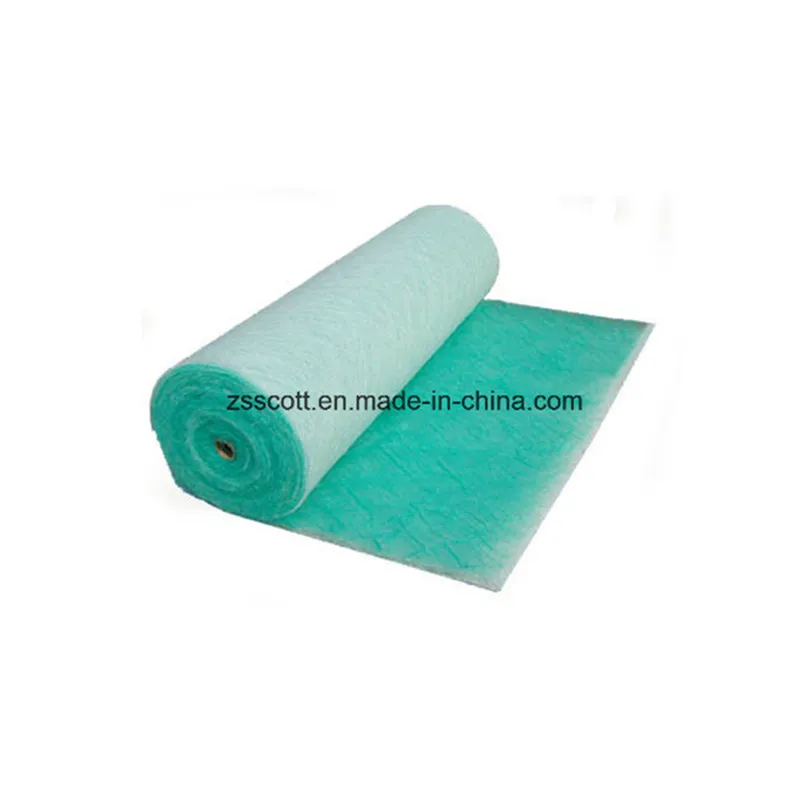

Rolls | 20 | 0.8/1/2 | 50/60 | 2.0 | 10 | 7200 |

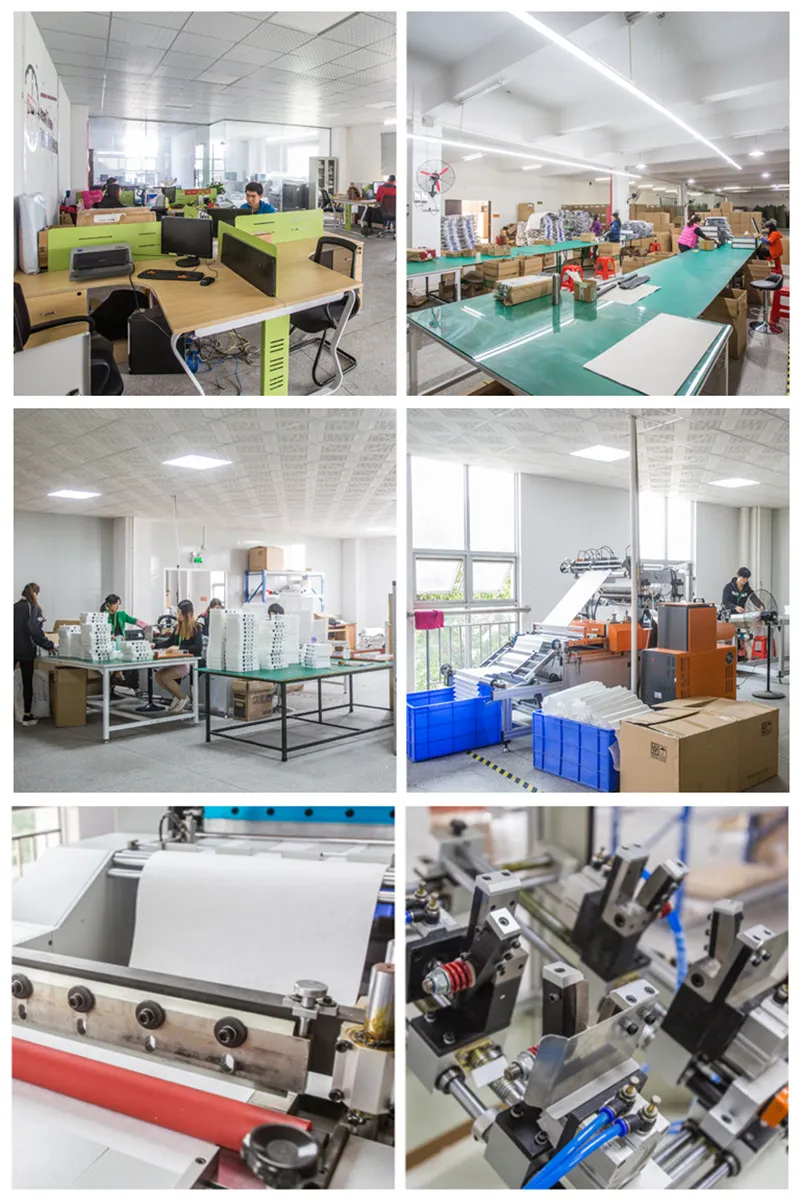

Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
