H10 -U15 HEPA Filter Mini Pleat Air Filter for Clean Room
Advantages1.Filter efficiency ranges from E10 to H14.2.Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.3.Use special ultra-fine fiberglass filter pap......
Send Inquiry
Product Description
Advantages
1.Filter efficiency ranges from E10 to H14.

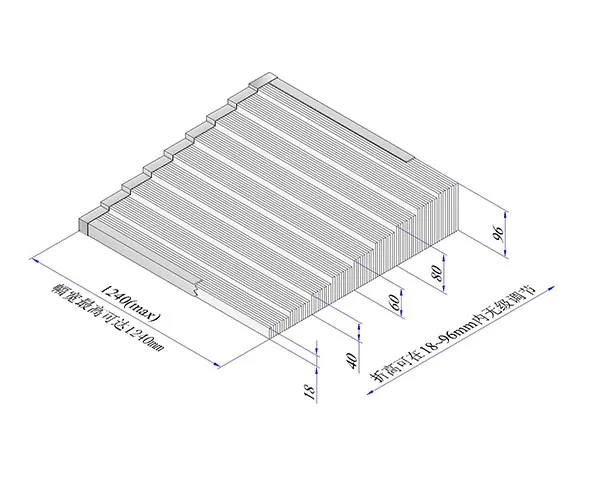

2.Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
3.Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
4.Double side retainers, protect the filter material, good strength.
5.Light in weight, compact in structure.
6.Each filter is tested according to EN1822:2009.
Material Instructions
1.Media: Ultra-fine fiberglass filter paper.
2.Frame: Anodized aluminum or stainless steel.
3.Separator: Hot-melt glue.
4.Sealant: Polyurethane.
5.Temperature: Maximum 90°C in continuous service.
Application
Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.
EPA/HEPA Filters: E10 to H14

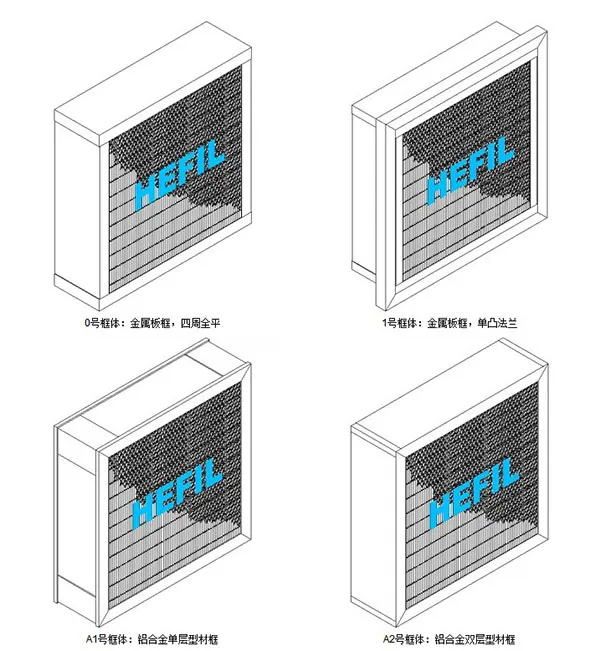

Structure Drawings
Note: HEFIL makes various of other models' HMH filter which are not listed in above table. Please consult with us if you need.

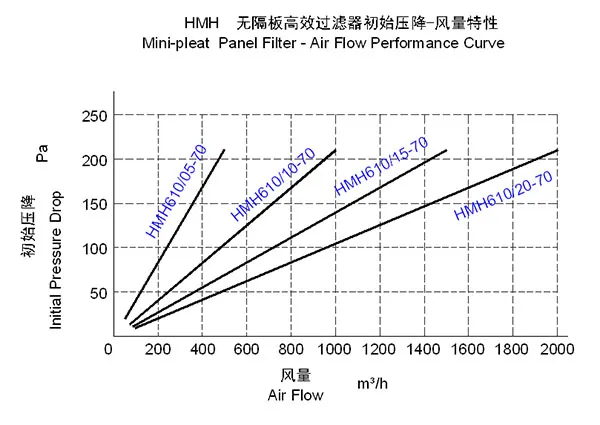

The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
1.Filter efficiency ranges from E10 to H14.
2.Adopt computer-controlled automatic production line for manufacturing, the crest height of folding filter material can be regulated steplessly between 18~96 mm, width will reach 1240mm at the widest.
3.Use special ultra-fine fiberglass filter paper as the filter material, good stability of filtration efficiency.
4.Double side retainers, protect the filter material, good strength.
5.Light in weight, compact in structure.
6.Each filter is tested according to EN1822:2009.
Material Instructions
1.Media: Ultra-fine fiberglass filter paper.
2.Frame: Anodized aluminum or stainless steel.
3.Separator: Hot-melt glue.
4.Sealant: Polyurethane.
5.Temperature: Maximum 90°C in continuous service.
Application
Suitable for electronics, pharmaceutical industry, clean room, FFU, laminar flow devices and the occasions require ultra-high cleanliness.
EPA/HEPA Filters: E10 to H14
Structure Drawings
| Common Specifications |
| Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W×H×D (mm) | ||||
| HMH610/03-50 | 305×305×50 | 1.6 | 150 | ≤190 |
| HMH610/05-50 | 305×610×50 | 3.3 | 300 | |
| HMH610/10-50 | 610×610×50 | 6.7 | 600 | |
| HMH570/20-50 | 1170×570×50 | 12 | 1300 | |
| HMH1170/10-50 | 1170×1170×50 | 24 | 2600 | |
| HMH610/05-70 | 305×610×70 | 5.5 | 500 | ≤220 |
| HMH610/10-70 | 610×610×70 | 11.3 | 1000 | |
| HMH610/15-70 | 915×610×70 | 17.0 | 1500 | |
| HMH610/20-70 | 1220×610×70 | 22.7 | 2000 | |
| HMH570/10-70 | 570×570×70 | 9.7 | 900 | |
| HMH570/20-70 | 1170×570×70 | 20.4 | 1800 | |
| HMH1170/10-70 | 1170×1170×70 | 40.8 | 3600 | |
| HMH610/10-90 | 610×610×90 | 15.4 | 1300 | |
| HMH610/20-90 | 1220×610×90 | 31.1 | 2600 |
The Initial Pressure Drop and Rated Air Flow Performance Curve
In case of specifications or structures changes, HEFIL will provide up-to-date data on website: hefilter.en.made-in-china.com.
