HEPA Filter Roll Air Filter with Synthetic Fiber
hepa filter roll air filter with synthetic fiberProduct Description:·Low initial resistance·Large dust holding capacity·Economical and practicalApplication: Filter dust, pre-filter through air filter program, also used in the clean roomType: synthetic fiber foldaway ......
Send Inquiry
Product Description
Product Description:
·Low initial resistance
·Large dust holding capacity
·Economical and practical
Application: Filter dust, pre-filter through air filter
program, also used in the clean room

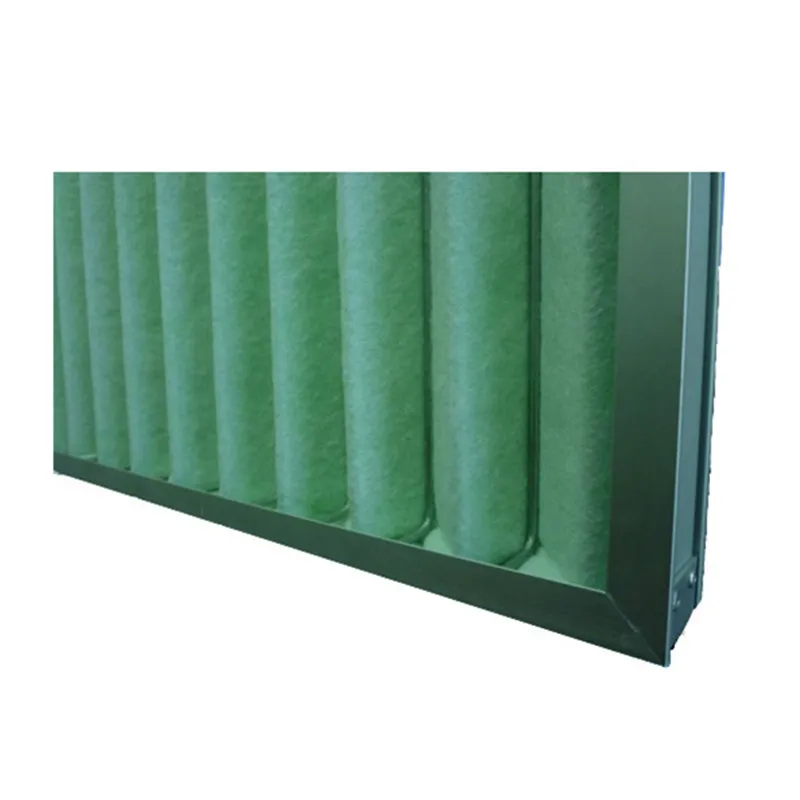

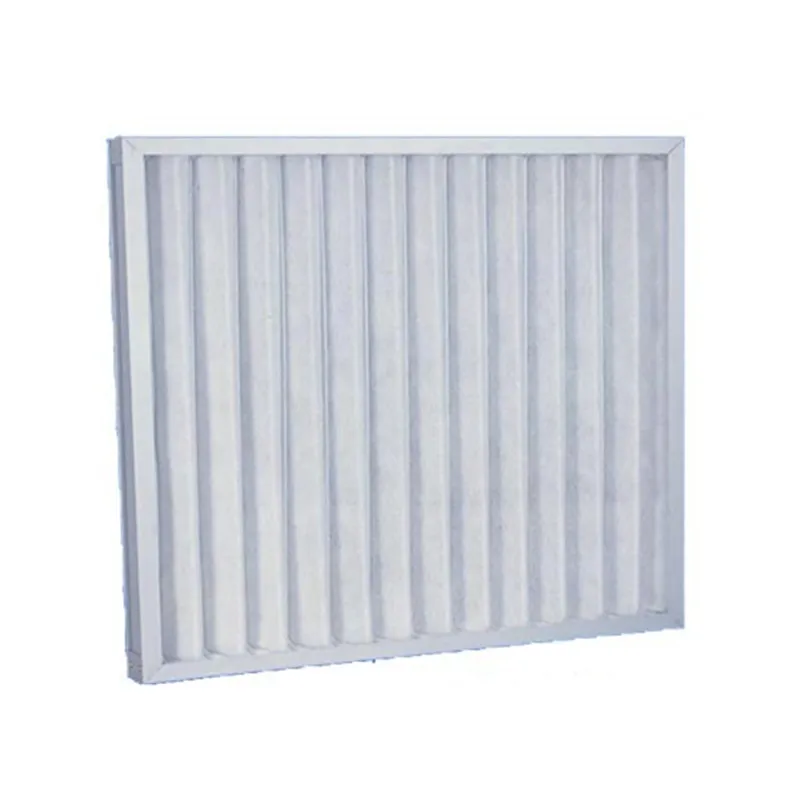

Type: synthetic fiber foldaway filter
Frame: aluminum or galvanized, with dismountable
frame design
Media: washable synthetic fiber, can wash 6-8 times
EN779 class: G3,G4
Average arrestance:84%-88%(ASHRAE52.1-1992)
EUROVENT4/5 class: EU3,EU4
DIN53438 Non-flammability Standard: F1
Final resistance: (suggest) 200Pa-250Pa
Max. air flow: 125% of the rated air flow
Temp. resistance: ≤100ºC
Humidity:100%
Type | Dimension |
Rated air flow(m3/h) |
Initial pressure drop (Pa) | ||
| Height(mm) | Width(mm) | Thickness(mm) |
|
|
FRS-JS-1 | 595 | 595 | 21 | 4000 | ≤25 |
FRS-JS-2 | 595 | 290 | 21 | 2000 |
|
FRS-JS-3 | 595 | 595 | 25 | 3800 | ≤30 |
FRS-JS-4 | 595 | 290 | 25 | 1900 |
|
FRS-JS-5 | 595 | 595 | 46 | 3600 | ≤35 |
Special sizes available upon request

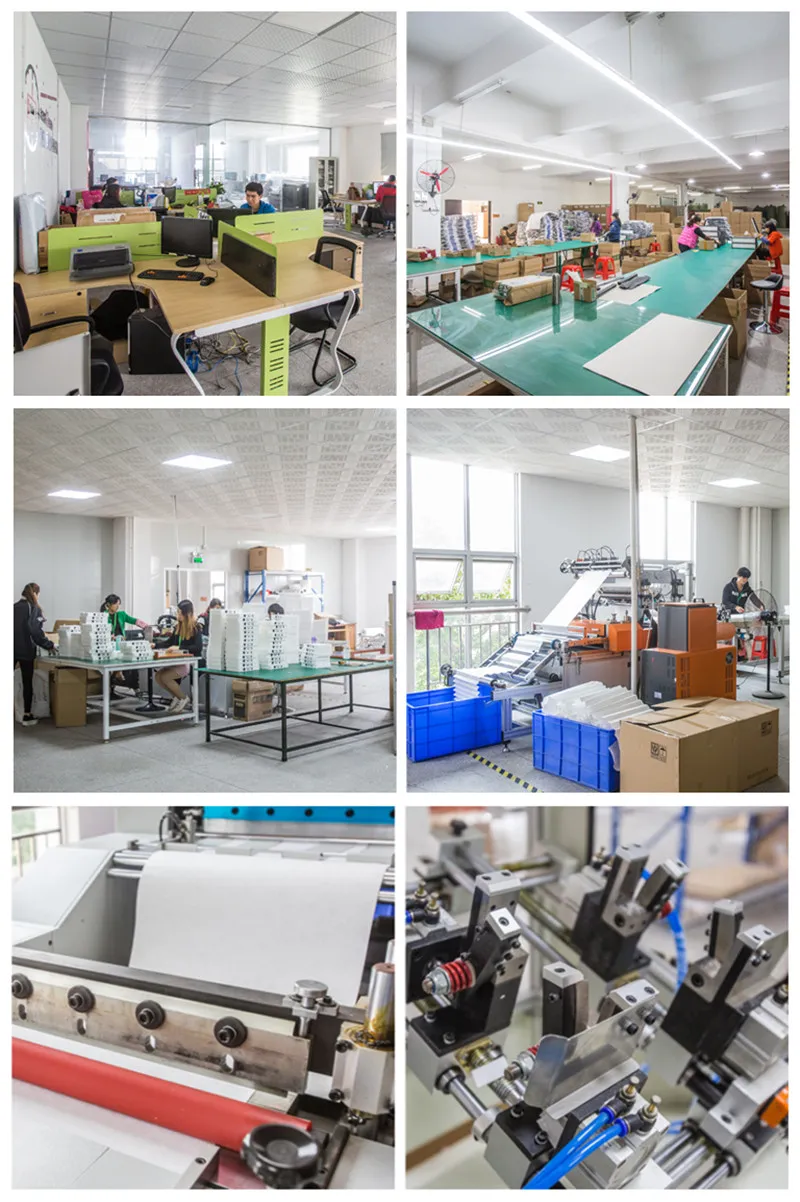

Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.
