              Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              • Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              • Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              • Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              • Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.

              Minipleat HEPA Air Filter H10 -U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.

              100% scanning leak test, water-proof low resistance media,light weight,none-corroding,dependable seal system.Used as terminal air filtration for clean-room with ultra-stringent requirements for clean air quality and sterility in industrial processes like pharmaceuticals,photovataic,electronics;Also ......

              Send Inquiry

              Product Description

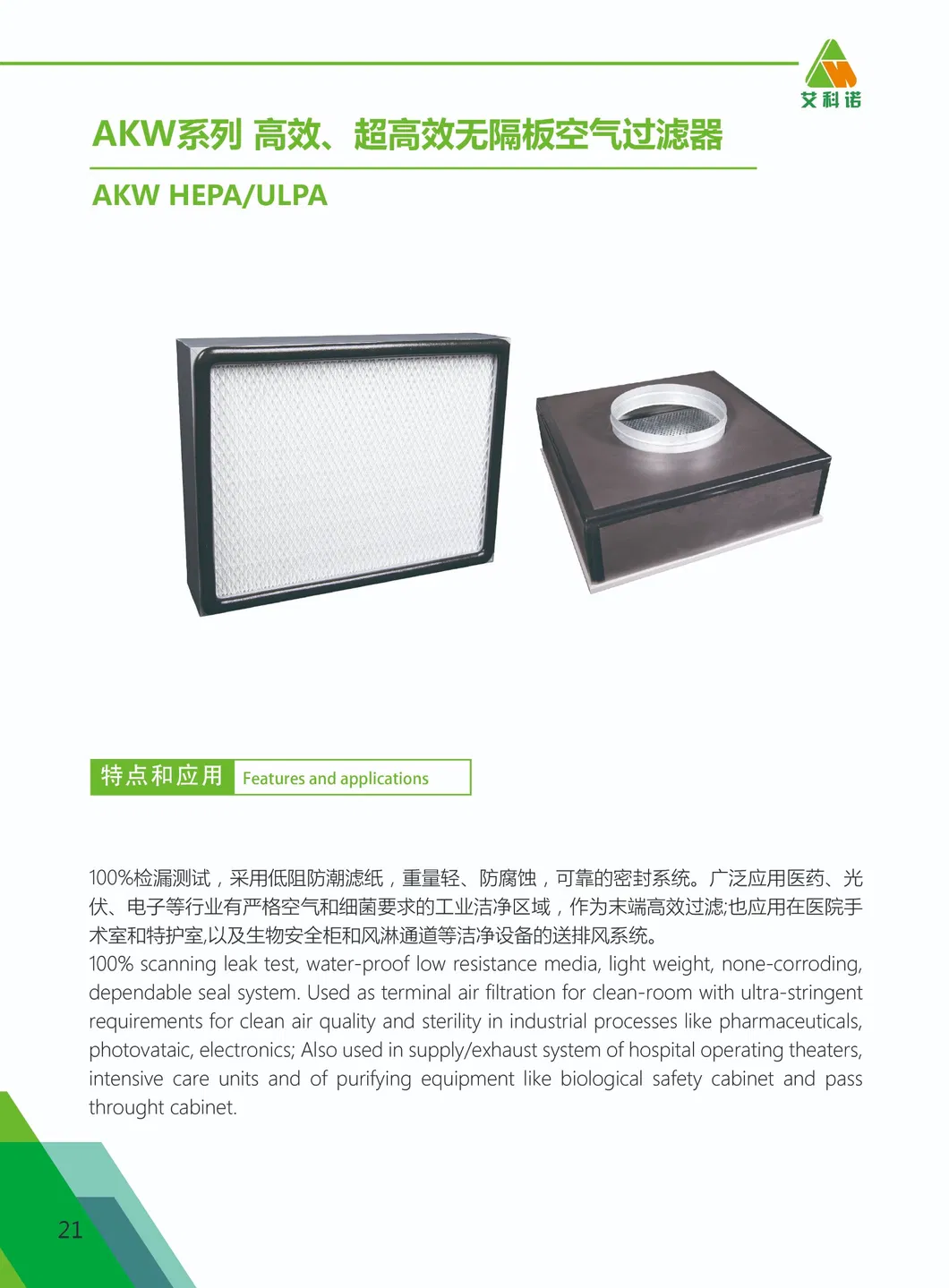

              100% scanning leak test, water-proof low resistance media,light weight,none-corroding,dependable seal system.Used as terminal air filtration for clean-room with ultra-stringent requirements for clean air quality and sterility in industrial processes like pharmaceuticals,photovataic,electronics;Also used in supply/exhaust system of hospital operating theaters,intensive care units and of purifying equipment like biological safety cabinet and pass throught cabinet.

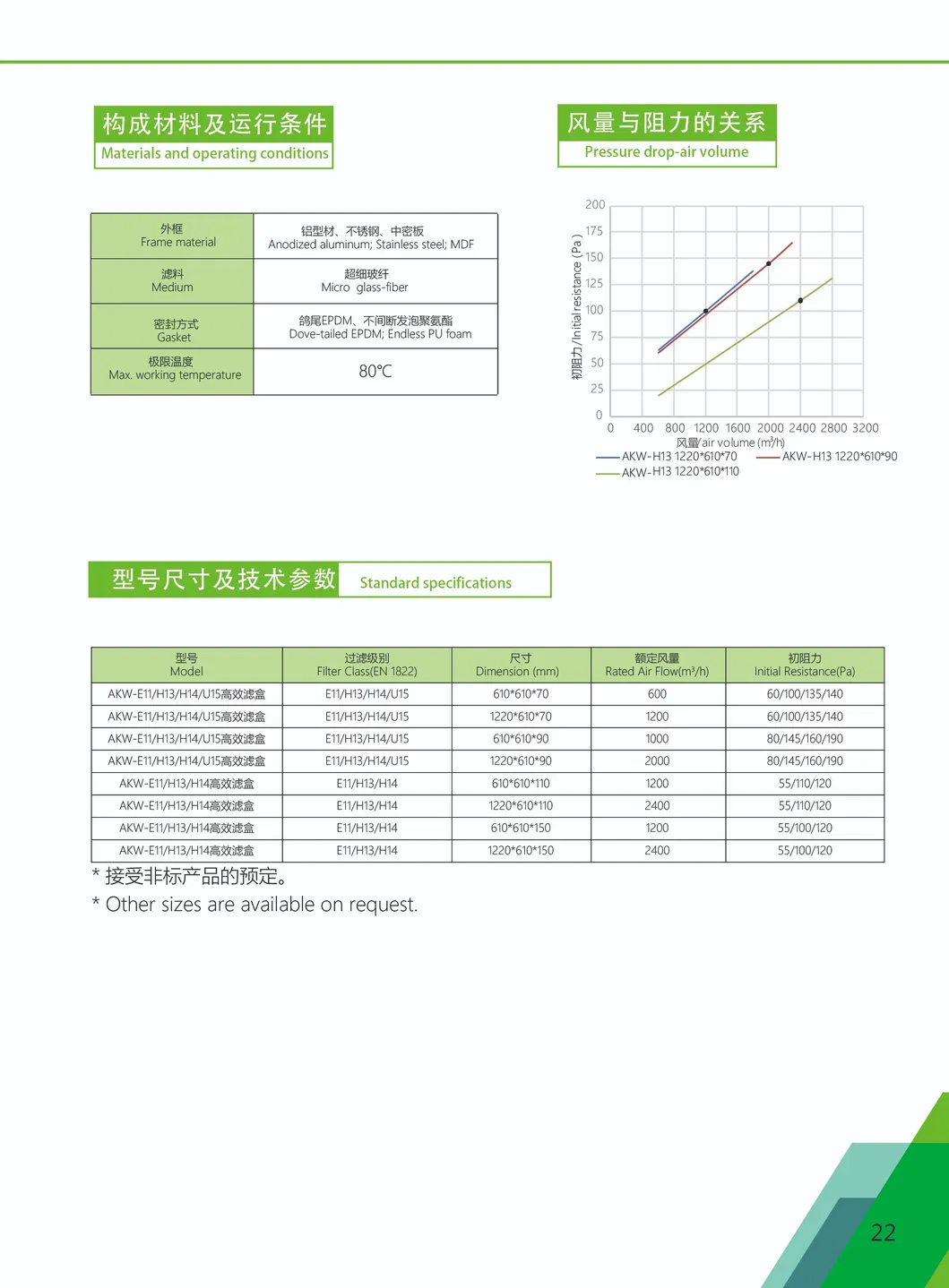

              Materials and operating conditions:
              FrameAnodized aluminum;Stainless steel;MDF
              MediumMicro glass-fiber
              GasketDove-tailed EPDM;Endless PU foam
              Max.working temperature80ºC

              Standard specifications:
              ModelFilter Class
              (EN1822)              		Dimension
              (mm)              		Rated Air Flow
              (m3/h)              		Initial Resistance
              (Pa)
              AKW-E11/H13/H14/U15E11/H13/H14/U15610*610*7060060/100/135/140
              AKW-E11/H13/H14/U15E11/H13/H14/U151220*610*70120060/100/135/140
              AKW-E11/H13/H14/U15E11/H13/H14/U15610*610*90100080/145/160/190
              AKW-E11/H13/H14/U15E11/H13/H14/U151220*610*90200080/145/160/190
              AKW-E11/H13/H14E11/H13/H14610*610*110120055/110/120
              AKW-E11/H13/H14E11/H13/H141220*610*110240055/110/120
              AKW-E11/H13/H14E11/H13/H14610*610*150120055/100/120
              AKW-E11/H13/H14E11/H13/H141220*610*150240055/100/120

              Other sizes are available on request.

              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.


              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
              Minipleat HEPA Air Filter H10-U16 with 100% Scanning Test Installed in Clean-Room or Air-Purification or Ventilation System and Equipment.
