Polyester Medium Filter Media M5 Ceiling Filter for Spray Paint Booth
Polyester Medium Filter Media M5 Ceiling Filter for Paint Booth Introduction Ceiling filter is mainly used in the surface coating industry such as paint booths and painting workshops. It is the secondary filter of the air supply system, and is also the medium-effect filter media. Mainly used fo......
Send Inquiry
Product Description

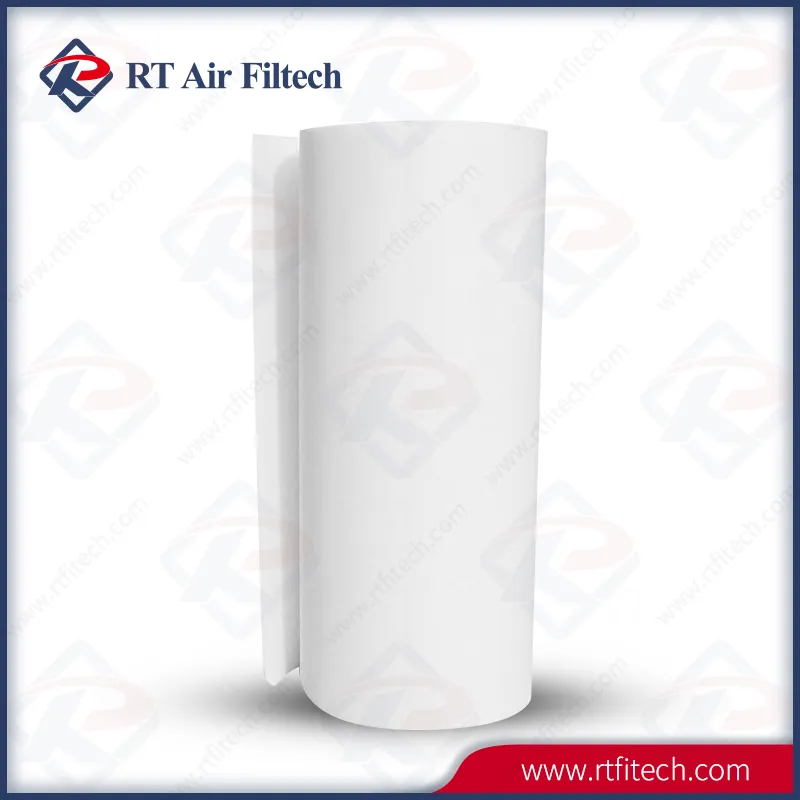

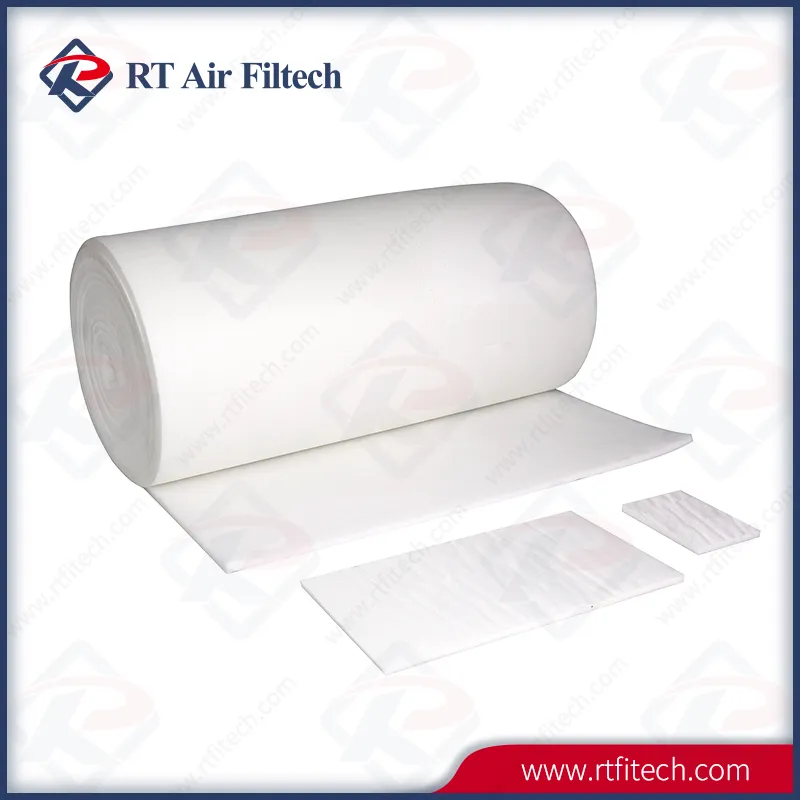

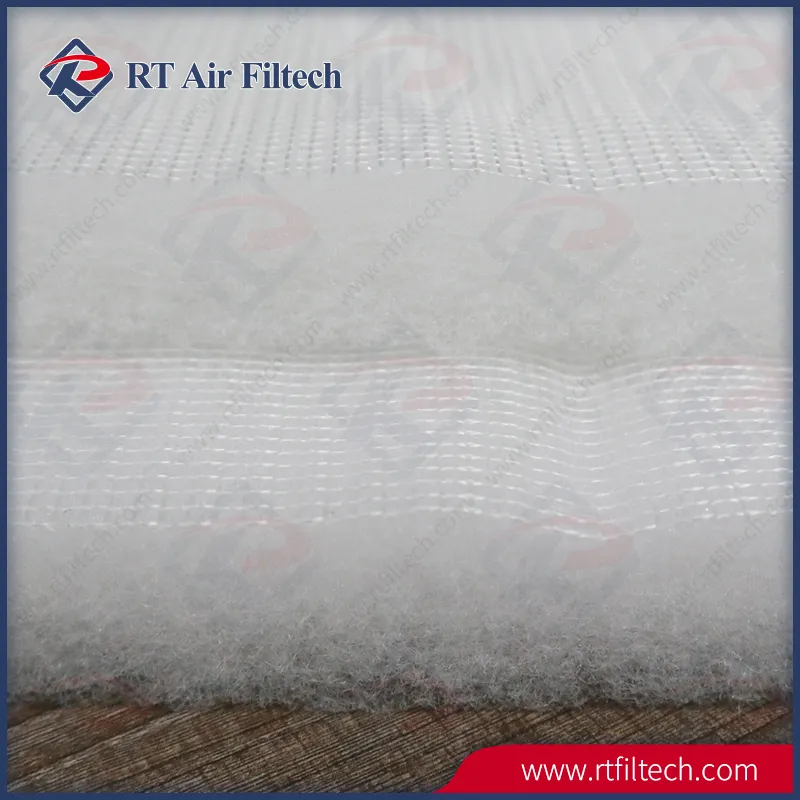

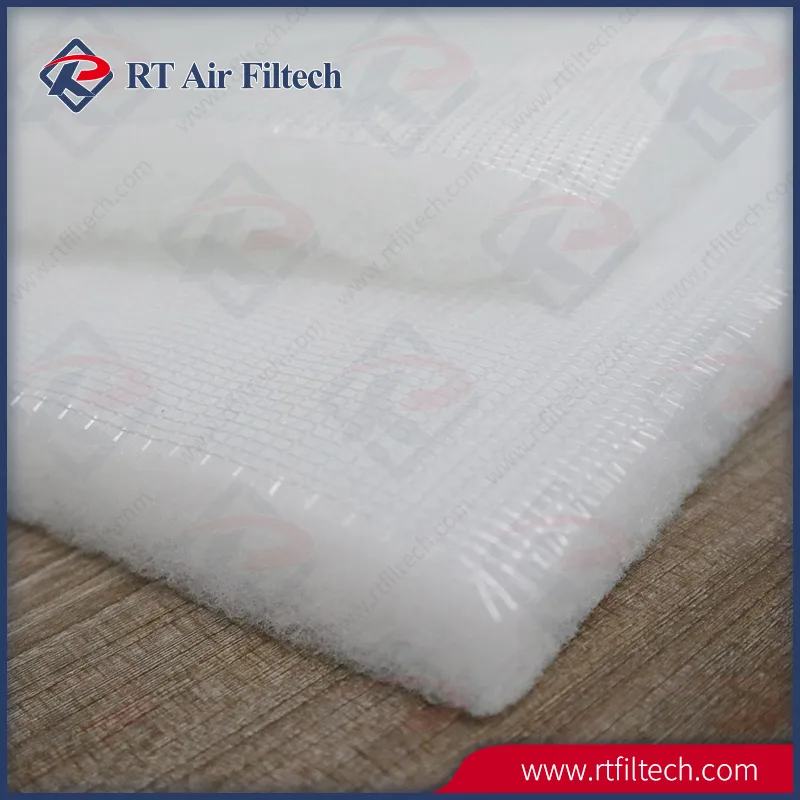

Polyester Medium Filter Media M5 Ceiling Filter for Paint Booth
Introduction
Ceiling filter is mainly used in the surface coating industry such as paint booths and painting workshops. It is the secondary filter of the air supply system, and is also the medium-effect filter media. Mainly used for the end of fresh air and return air filtration of the spray production line, mainly filtering 1-10μm suspended particles. It ensures uniform flow of air through the spray booth and forms a laminar flow.
Features
1. It uses synthetic fibers and has excellent wrinkle resistance, elasticity and dimensional stability;

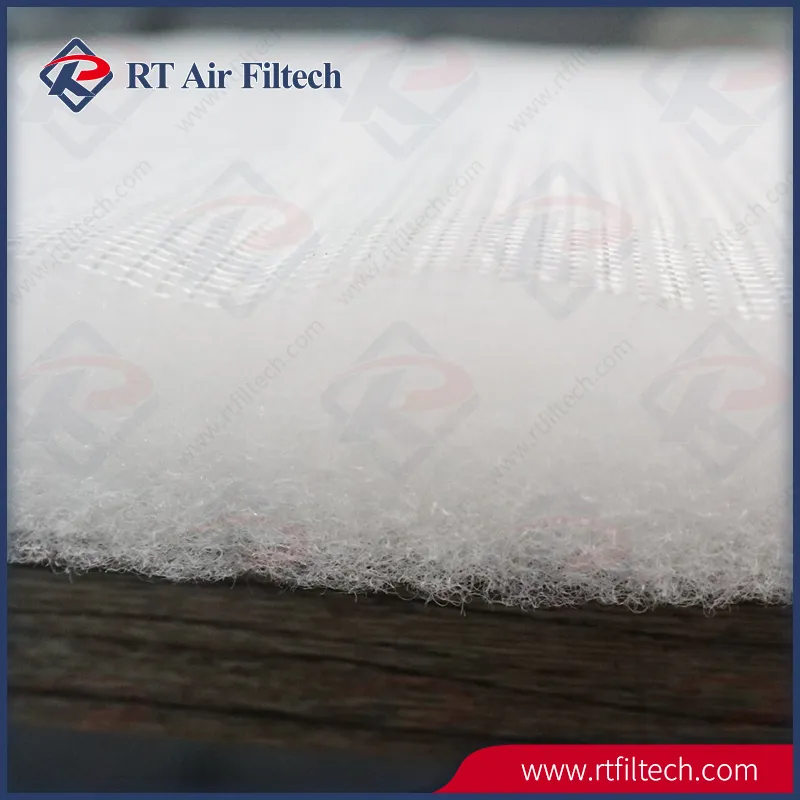

2. Gradient density structure,the fiber density increases gradually toward the pure air.May according to the dust size, prevent them in the different density level; it accommodates many dust more effectively;
3. The wind surface of the mesh is specially compact, and also put a fishing net to strengthen it;
4. High dust capacity, low resistance and low cost;
5. Fully impregnate media with adhesive treatment makes dust particles unable to pass; The filter material has full viscosity, surface viscosity and dry treatment for customers to choose;
6. Strong moisture resistance, up to 100% relative humidity;
7. Conform to European and American classifications for non-flammability.(e.g DIN53438-F1,UL900-class 2 with flameout).
Specification
Ceiling filter is mainly used in the surface coating industry such as paint booths and painting workshops. It is the secondary filter of the air supply system, and is also the medium-effect filter media. Mainly used for the end of fresh air and return air filtration of the spray production line, mainly filtering 1-10μm suspended particles. It ensures uniform flow of air through the spray booth and forms a laminar flow.
Features
1. It uses synthetic fibers and has excellent wrinkle resistance, elasticity and dimensional stability;
2. Gradient density structure,the fiber density increases gradually toward the pure air.May according to the dust size, prevent them in the different density level; it accommodates many dust more effectively;
3. The wind surface of the mesh is specially compact, and also put a fishing net to strengthen it;
4. High dust capacity, low resistance and low cost;
5. Fully impregnate media with adhesive treatment makes dust particles unable to pass; The filter material has full viscosity, surface viscosity and dry treatment for customers to choose;
6. Strong moisture resistance, up to 100% relative humidity;
7. Conform to European and American classifications for non-flammability.(e.g DIN53438-F1,UL900-class 2 with flameout).
Specification
| Model | Dimensions | Rated air velocity (m/s) | Initial Pressure (Pa) | Rated air flow (m3/h) | ||
| Length (m) | Width (m) | Thickness (mm) | ||||
| RT-600G | 20 | 1.0/2.0 | 22±2 | 0.3 | ≤45 | 1080 |
| Remark:Other specifications can be customized | ||||||
| Filtration class | F5/M5(EN779) EU5(EUROVENT) | Flammability rating | F1(DIN 53438), B1(GB/T 17591-2006) |
| Moisture resistance | ≤99%RH | Filter particles | ≥1μm |
| Final pressure | 400Pa | Humidity | ≤100ºC |
| Avg.arrestance | ≥95% (ASHRAE52.1-1992) | Dust holding capacity | 500g/m2 |
| Temp.short peaks | 130ºC | Temp.resistance | 130ºC |
About us

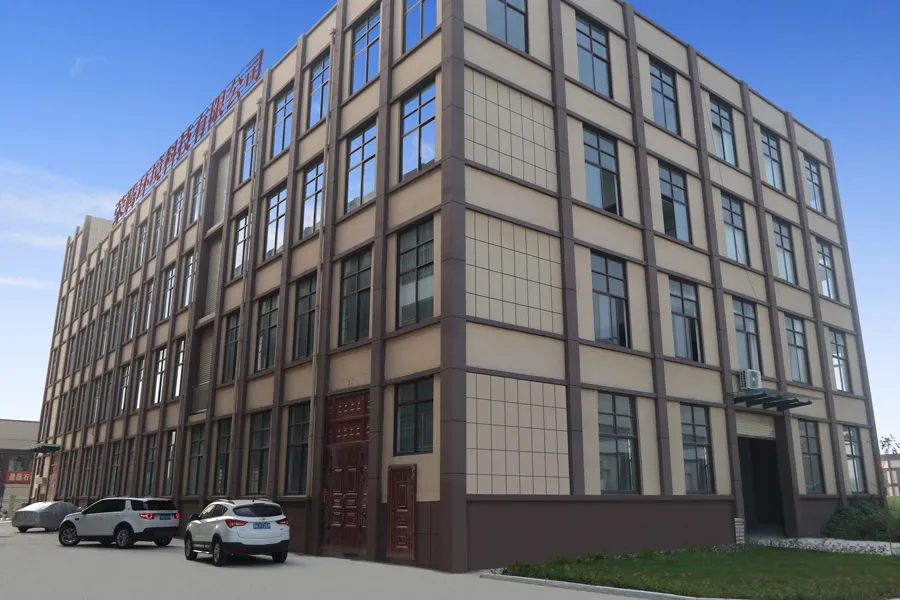

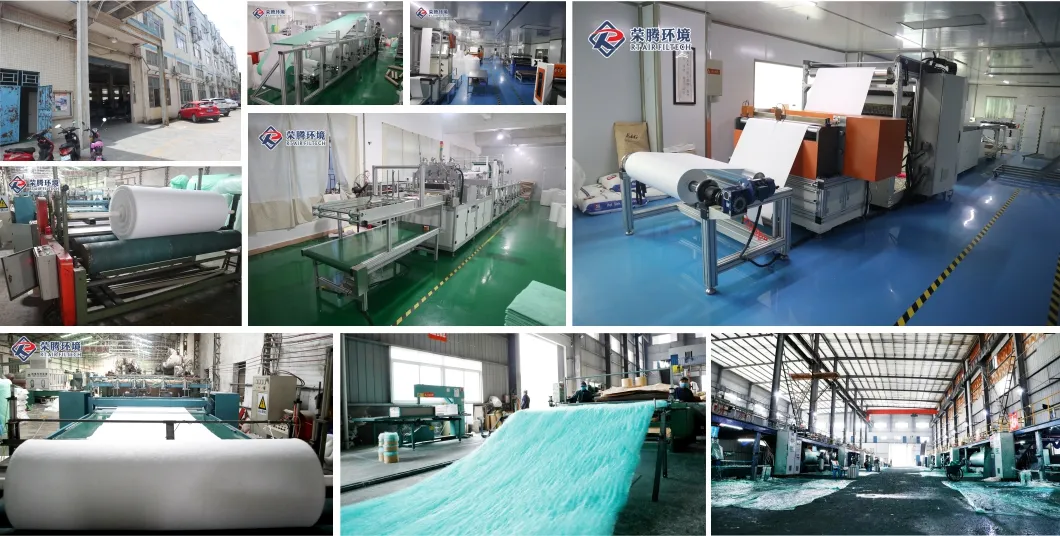

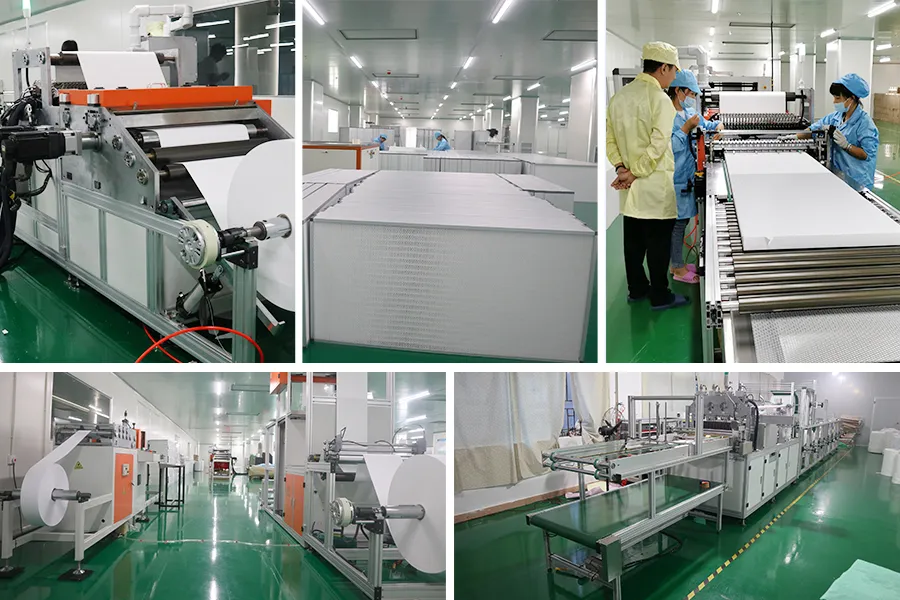

Guangzhou RT Air Filtech Co., Ltd. is a production-oriented enterprise integrating R&D, production, sales and service. It is committed to offer related ranges of air filters for industries such as electronics factory, semiconductor, liquid crystal display, bio-pharmaceutical, food, petrochemical industry, clean room, hospital,rail transit, spray booth, commercial and residential construction. With high-tech equipment, experienced technicians and perfect testing equipment, from design, research and development, production, quality control to finished products, we can achieve the essence and quality, and are highly appreciated by users at home and abroad. The business has spread to more than 50 countries and regions around the world. Since its establishment, the company has always adhered to the business philosophy of "integrity cooperation, coexistence and mutual benefit", taking "quality first" as its tenet, taking data and facts as its foundation, deeply digging into customer needs, and accurately evaluating the operating cycle cost of its filtration products. In order to ensure the maximum benefit of customers, we provide comprehensive and effective air purification solutions, solutions and services for each customer.
Certification
Package
Vinyl plastic bag or carton box.Your customized logo will be available.

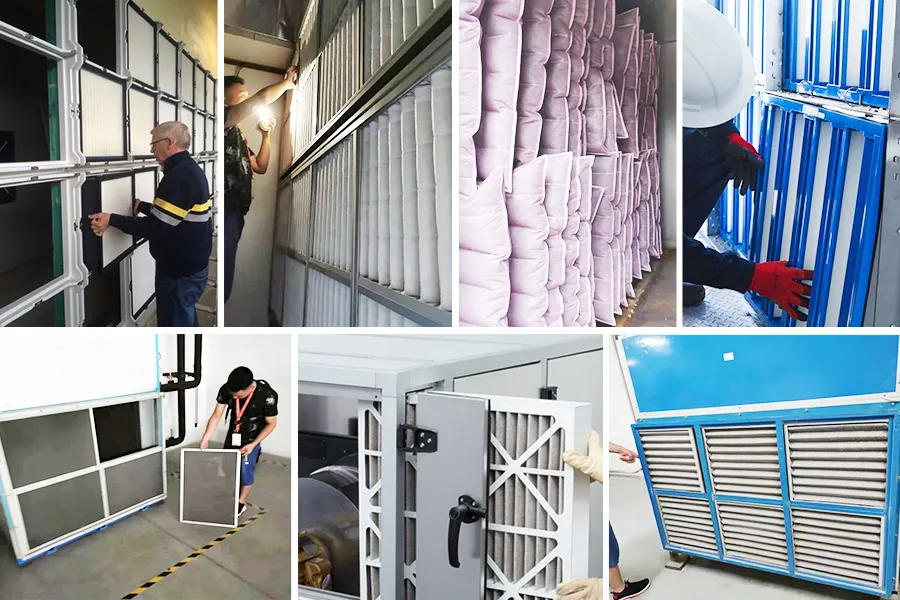

Application area
Customers memory
Payment Method
T/T 30% in advance, 70% balance before shipment. L/C, D/P at sight.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral PE bags.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
