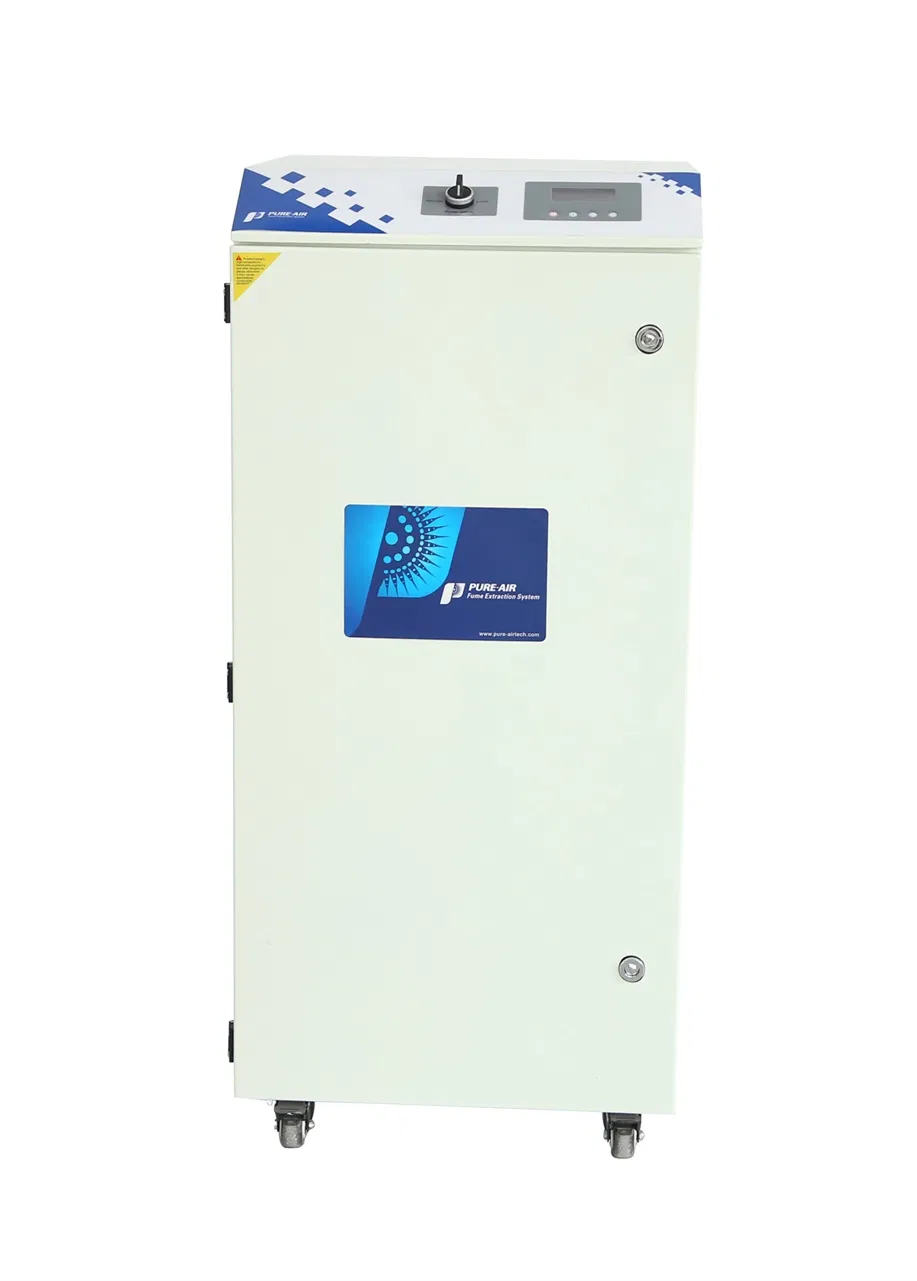

Pure-Air PA- 500FS -IQ Air Purification System For Laser Cutting Acrylic With 500m3/h Air Flow
Pure-Air PA-500FS-IQ Air Purification System For Laser Cutting Acrylic With 500m3/h Air Flow1. Our CustomersUniversal Laser, Epilog laser, GCC laser, Trotec Laser, FOBA laser, HGTECH laser, wuhan Golden laser, Foshan HSG laser,Han's laser, Bodor laser, SenFeng laser, YueMing Laser, Redsail Laser......
Send Inquiry
Product Description
1. Our Customers
Universal Laser, Epilog laser, GCC laser, Trotec Laser, FOBA laser, HGTECH laser, wuhan Golden laser, Foshan HSG laser,Han's laser, Bodor laser, SenFeng laser, YueMing Laser, Redsail Laser, Jinan Jindiao laser, Glory Laser, GuangZhou CK Laser, Baisheng laser, etc.
2. Application:
Pure-Air PA-500FS-IQ laser fume extractor suitable for fume filtration and dust collection for Laser cutting/engraving non-metal. It's suitable for working area during 600*500mm CO2 laser machine. PA-500FS-IQ fume extractor has very good performance for both filtrate fumes, collect dust and adsorb strong smell during laser cutting/engraving non-metal like Acrylic/plastic/PVC/paper/marble/ABS/Glass/Rubber/wood/plywood/mdf/, etc.

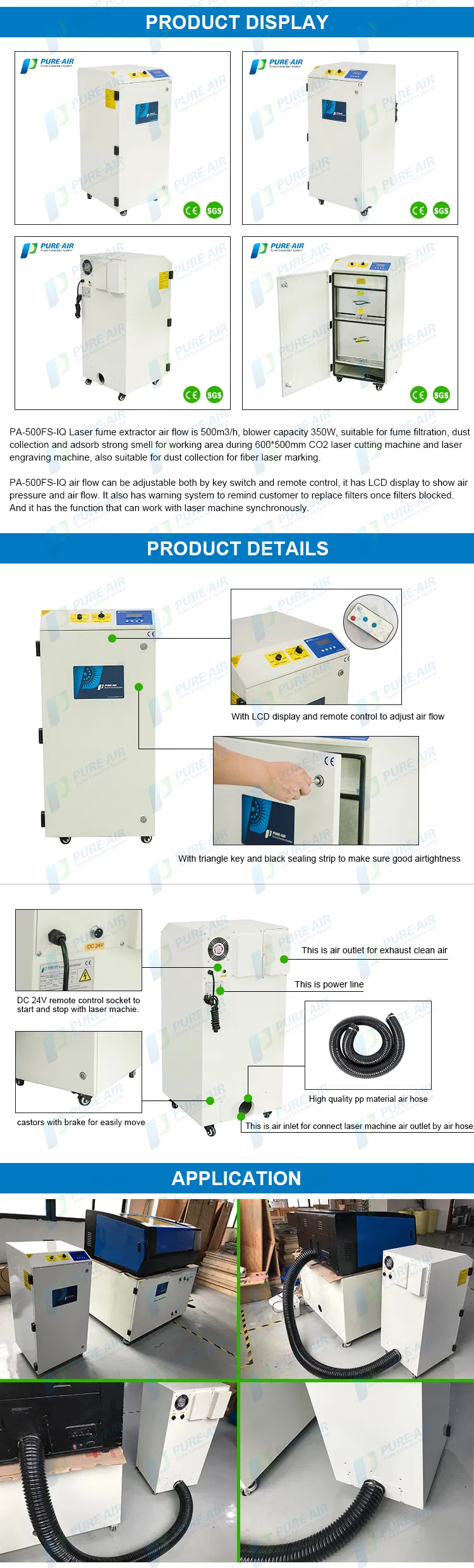

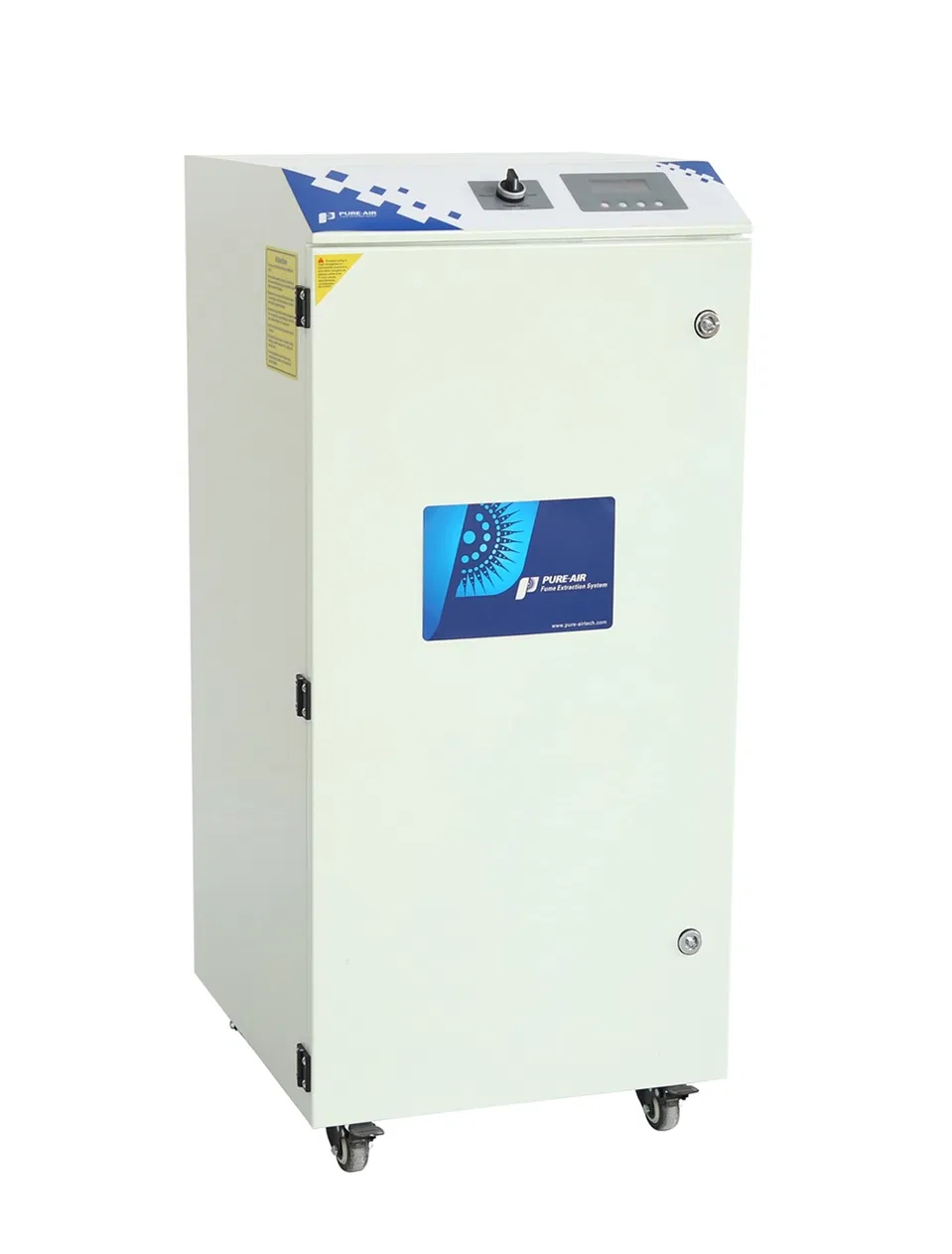

3. Product Detail
4. Specification Sheet:
| Equipment Data | ||
| Item | Technical Data | Remark |
| Fume & dust inlet | 150mm or 75mm | Single or Double fume inlets, include one or two set fume extract tubes |
| Fresh air outlet | 150mm | window-shades holes |
| Machine weight | 80KG (N.W.) 120KG(G.W) | Machine with all elements |
| Dimension | 581*475*1057mm | Machine size |
| Package dimension | 640*595*1300mm | Packed by plywood crate |
| Blower Technical Data | ||
| Item | Technical Data | Remark |
| Running period | more than 30,000h | One year guarantee |
| Max. air flow | 500m³/h | / |
| Input capacity | 350W blower | Low capacity |
| Air pressure | 3000pa | High pressure |
| Running sound | ≤64dBA | / |
| Input power | 110/220V, 50/60Hz | International standard |
| Filter Elements Data | ||
| Item | Technical Data | Remark |
| F5 Primary filter PA500-01 | F5 Primary filter | For remove big and heavy particles/smoke/dust(>=5 Micron) |
| Pre-filter PA500-02 | F8 medium efficiency bag filter | F8 medium efficiency filter for remove big particles/smoke/dust(>=1 Mircron). |
| Main-filter PA500-03 | H13 class HEPA filter | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
| Gas-filter PA500-04 | Activated carbon filter | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
| Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
Pure-Air PA-500FS-IQ laser fume extractor suitable for fume filtration and dust collection for 600*400mm CO2 Laser cutting/engraving non-metal.

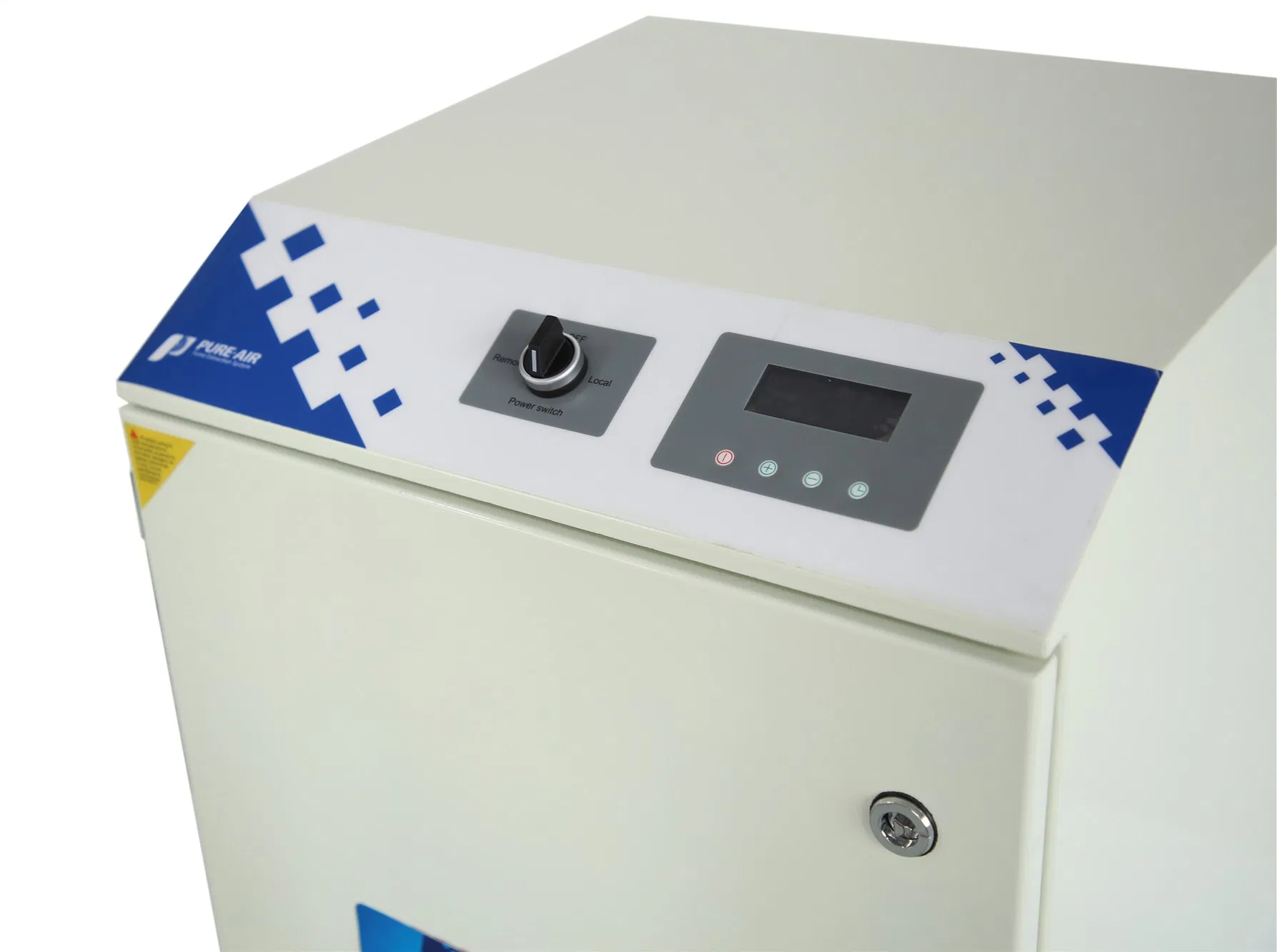

PA-500FS-IQ air flow is 500m3/h, blower capacity is 350W, air flow can be adjustable both by key switch and remote control, it has LCD display to show air pressure and air flow. It also has warning system to remind customer to replace filters once filters blocked. And it has the function that can work with laser machine synchronously.

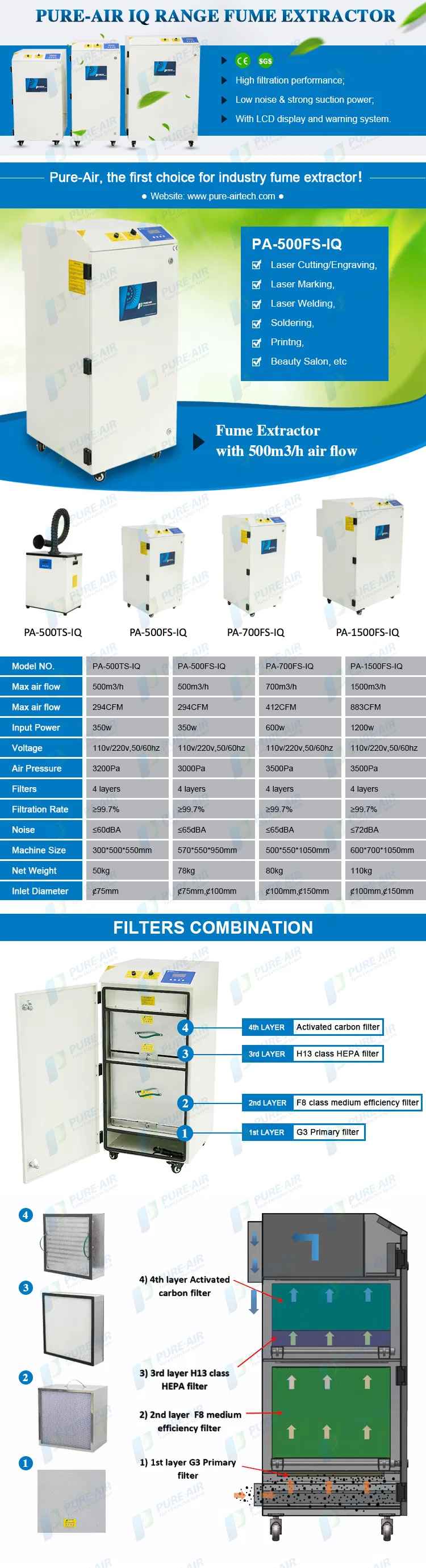

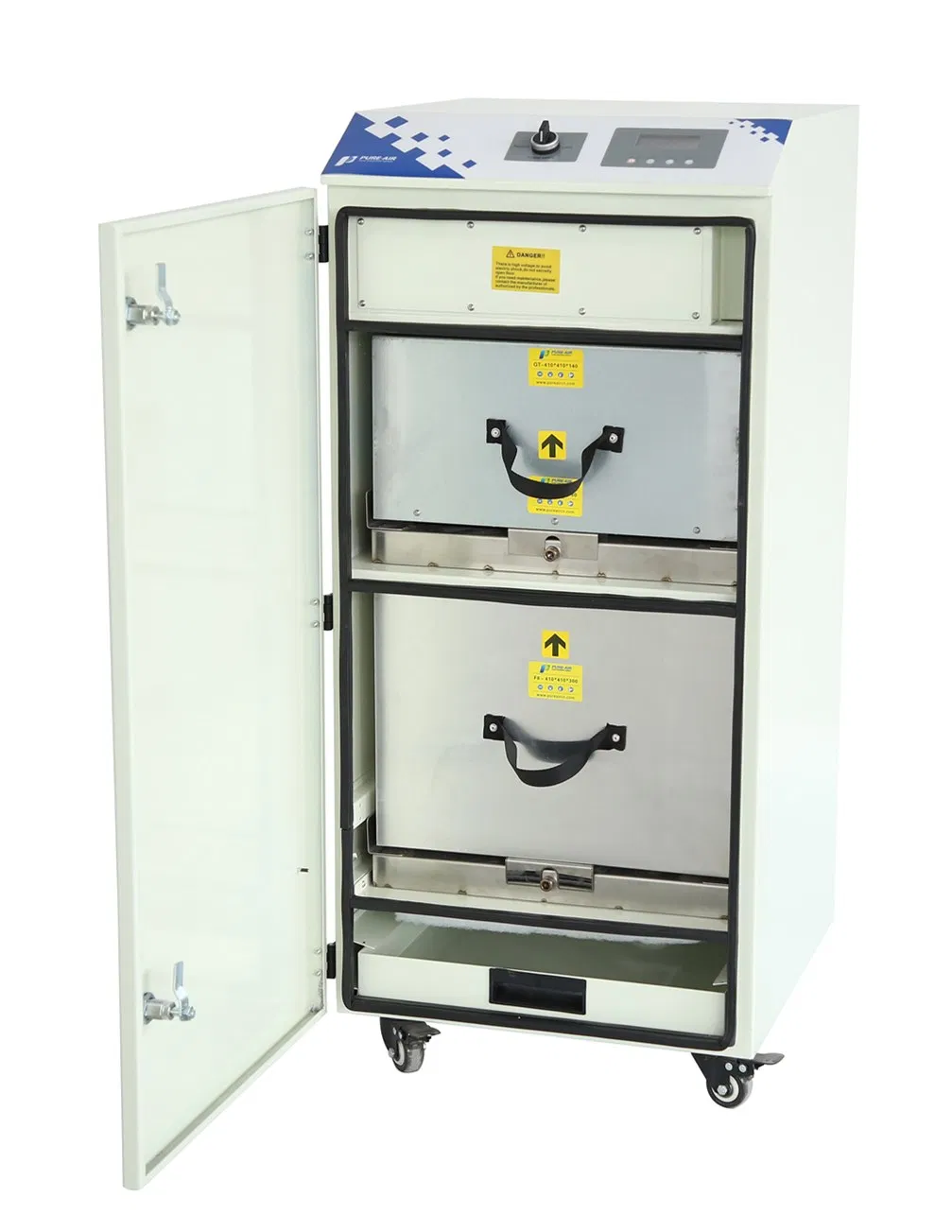

This model has very good performance for filtrate fumes and collect dust, adsrob strong smell for laser processing acrylic/wood/rubber/paper and plastic. PA-500FS-IQ has below below 4 layer filters to make sure the high air purficiation performance.
1) 1st layer is G3 Primary filter for remove big and heavy particles/smoke/dust(>=5Micron)
2) 2nd layer is F8 medium efficiency filter for remove big particles/smoke/dust(>=1Mircron).
3) 3rd layer is H13 class HEPA filter to remove small particles (>=0.01Mircron) and smoke.
4) 4th layer is Activated carbon filter to adsorb smells and toxic gas.
6.More Products
7.Exhibition
8.Why Choose Us
10.FAQ
Q: Are you trading company or factory?
A: We are professional factory for making fume extractor, dust collector;
Q: Do you only sell products in name of your own brand PURE-AIR?
A: Except sell in name of our brand, we can also make OEM products and show customer's LOGO;
Q: How long is your delivery time?
A: Normally it is 2-10 days for standard products, for customized products takes 10-20days;
Q: How about your package?
A: We pack goods firstly with stretch film and then pack in strong plywood box, plywood box no need do fumigation.
Q: How long is the quality guarantee of your fume extractor?
A: We can offer 1 year quality guarantee and life-long maintenance of our machine after the warranty period.
