China 1054 FRP Pressure Vessel for Water Softener & Water Treatment

Product Description

1054 FRP Pressure Vessel for Water Softener & Water Treatment

MORE DETAILS
1) opening temperature: 1-49° C
2) operating pressure: 100PSI
3) bursting pressure: 232PSI
4) fatigue test: 100.000times incessantly cycle test
5) different inner container: ABS \ FRP \ PE
6) opening diameter: 2.5'' 6''
7)Color: Different colors are available, deep blue, sky blue, gray, natural color, black
8)Max pressure: 10 bar
9)Capacity: 0.2- 2T/H
10)Max temperature: 120F
11)Tank inner liner: PE or ABS
12)Diameter varies.

Model	L	Diameter(mm)	Height(mm)	m3/h	UP distributor	Down distributor	Riser ube
CK-818	10	200	445	0.1-0.3	CK-601	CK-602	DN20
CK-835	25	200	905	0.2-0.4	CK-601	CK-602	DN20
CK-844	30	200	1130	0.2-0.5	CK-601	CK-602	DN20
CK-1035	40	250	905	0.4-0.8	CK-601	CK-602	DN20
CK-1054	60	250	1390	0.5-1.2	CK-601	CK-602	DN20
CK-1252	85	300	1340	1.0-2.0	CK-601	CK-602	DN20
CK-1265	105	300	1650	1.5-2.5	CK-601	CK-602	DN20
CK-1354	105	325	1400	1.8-2.5	CK-601	CK-602	DN20
CK-1465	150	350	1670	2.0-3.0	CK-601	CK-602	DN20
CK-1665	190	400	1670	2.5-4.5	CK-601	CK-602	DN20
CK-1665B	190	400	1670	2.5-4.5	CK-182	CK-6260	1.5''/11/2''
CK-1865	238	450	1670	3.5-4.8	CK-182	CK-6370	1.5''
CK-2072	300	500	1750	3.0-5.0	CK-5671	CK-6370T	No
CK-2472	440	600	1850	4.0-6.0	CK-5671	CK-6450T	No
CK-3072	680	750	1850	6.0-10.0	CK-5671	CK-6600T	No
CK-3672	860	900	1850	10.0-15.0	CK-5671	CK-6700T	No
CK-4072	1050	1000	1850	16.0-24.0	CK-173	CK-5674-3	No
CK-4094	1400	1000	2400	22.0-28.0	CK-173	CK-5674-3	No
CK-4896	1800	1200	2400	30.0-40.0	CK-173	CK-5675-3	No
CK-6096	2700	1500	2400	40.0-60.0	CK-175	CK-5676-4	No
CK-7296	4800	1800	2400	50.0-80.0	CK-175	CK-5678-4	No
CK-8096	6600	2000	2400	70-100	CK-175	CK-5678-4	No

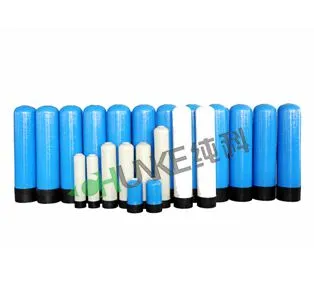

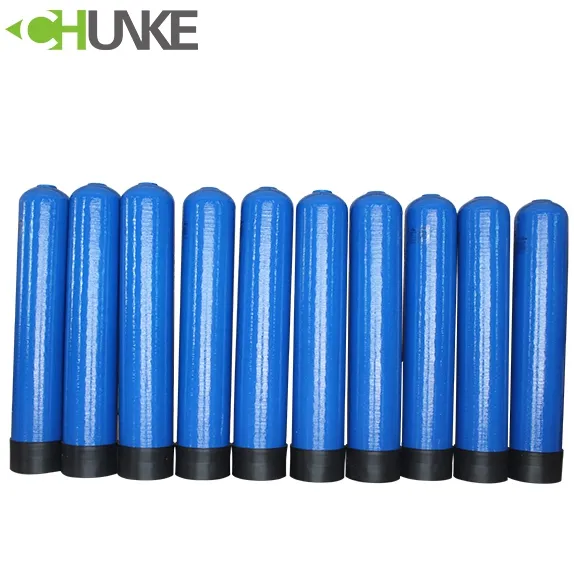

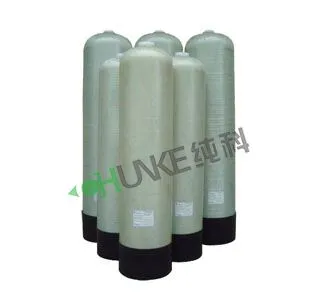

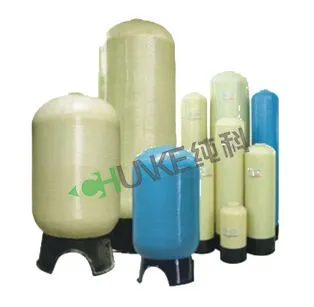

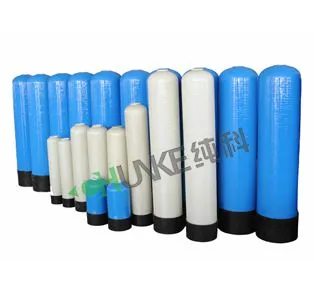

FRP Tank
1) Adopt high-performance resin and glass fiber winding, Liner uses PE plastic, ABS, FRP high quality material to blow molding manufactory, using importing micro-computer controlling equipment to shape, anticorrosion, high or low resistance, high tenacity, satisfy customers' different applicatioin well.
2) Merits: Pretty twisting pattern, sophisticated manufacture, long lifetime, etc.
3) Dimension: 8''-36" linner PE or ABS, above 36adopt FRP linner.
4) Opening: 2.5"whorl, 4"whorl mouth, 6flange.
1054 FRP Pressure Vessel for Water Softener & Water Treatment

1054 FRP Pressure Vessel for Water Softener & Water Treatment

About our company:
Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
