250m3 /Hour Automatic Backwash Sand Filter
250 m3/hour Automatic backwash sand filterApplicationCommercial - Golf course and sporting field irrigation systems.Industrial - Pre-preteatment of UF/RO and waste water recycling.Irrigation - Primary filtration for the prevention of blockages in irrigation systemHVAC- cooling tower side filtration......
Send Inquiry
Product Description

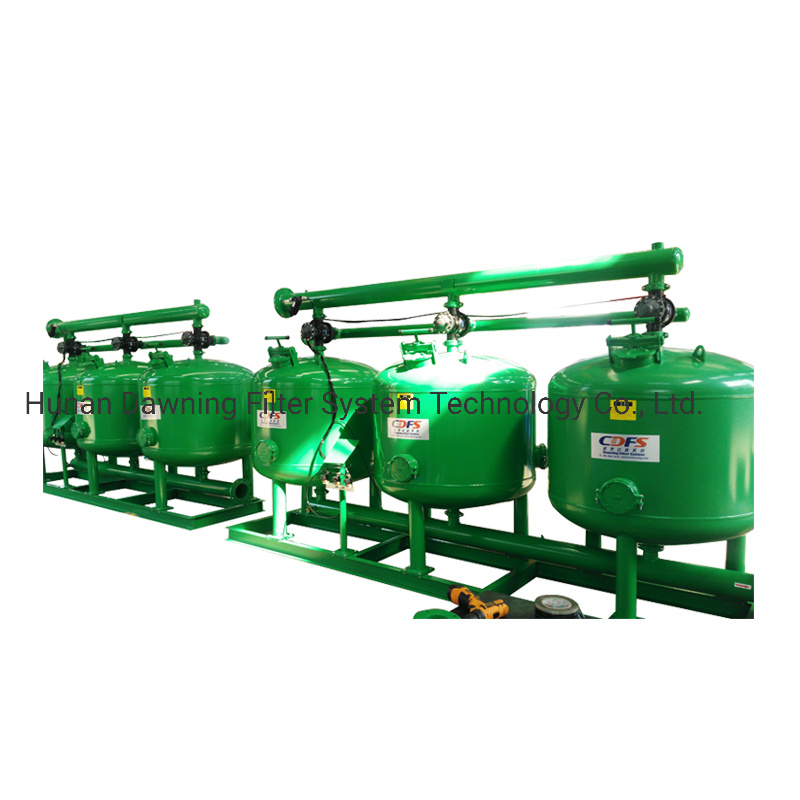

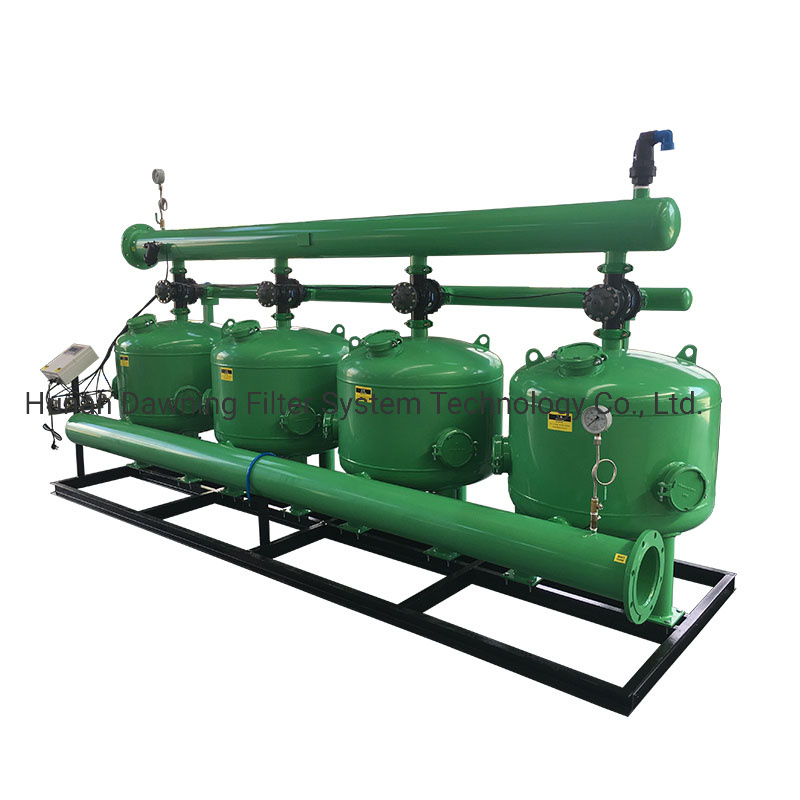

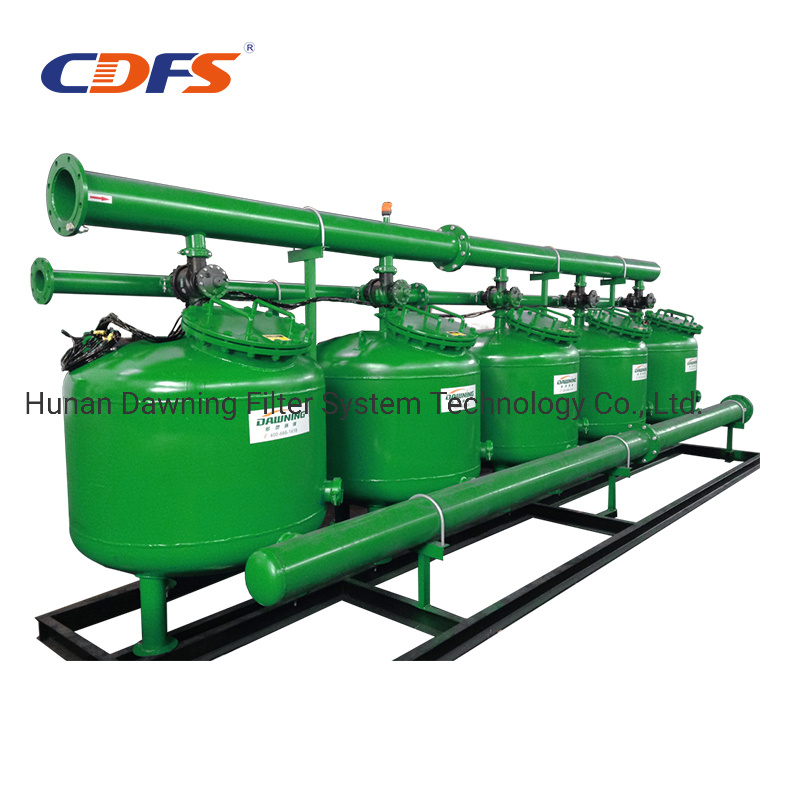

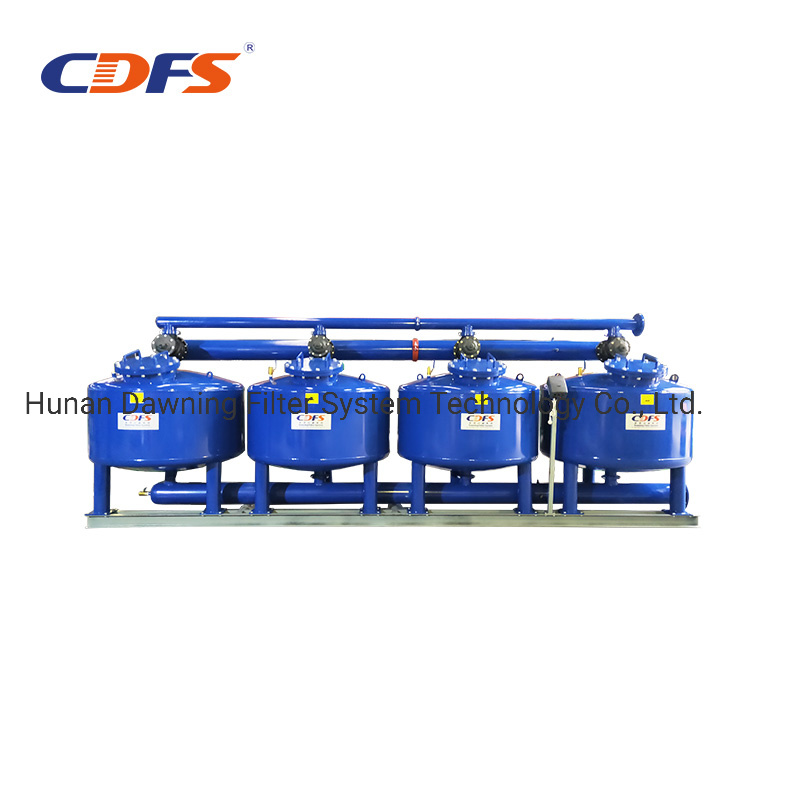

250 m3/hour Automatic backwash sand filter
Application
- Commercial - Golf course and sporting field irrigation systems.
- Industrial - Pre-preteatment of UF/RO and waste water recycling.
- Irrigation - Primary filtration for the prevention of blockages in irrigation system
- HVAC- cooling tower side filtration and full system
- Metal Processing Plants - Filtration for water cooling and spray nozzles.
- Mining - Cleaning of process and waste water.
Technical requirements
Min. pressure: 0.15Mpa
Max. pressure: 1.0Mpa
Working temperature: <65ºC
Tank thickness: 4/6/8mm
Power: 220V/110V/battery
Working princinple
The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.

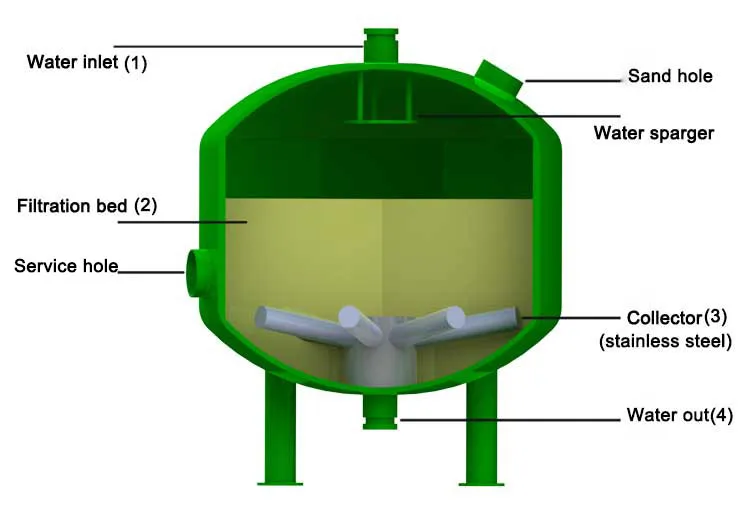

Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins.
The Cleaning Process
Cleaning is done by backwashing; pressurized water flows in reverse direction - from the nozzles upwards, causing suspension of the filter bed, thus releasing the suspended matter from the bedding. The dirt particles are then washed out of the filter through the back-flush valve. In automatic media filters installations the cleaning process is done by the system's controller. When the pressure differential switch senses that the differential pressure across the system reached a pre-set value, a signal is sent to the flushing controller and the self cleaning process begins.
Industrial bypass sand filter specification sheet table
| Model | Tanks QTY | Flow min. (m3/h) | Flow max. (m3/h) | Filtration area (m2) | Backwash flow (per tank)m3/h | Maximum pressure(bar) | Water in/out | Backwash pipe |
| DMF-2024-1A | 1 | 4 | 6 | 0.2 | 6 | 8 | 2" | 2" |
| DMF-2424-1A | 1 | 7 | 11 | 0.28 | 11 | 8 | 2" | 2" |
| DMF-2024-2A | 2 | 8 | 12 | 0.4 | 6 | 8 | 2" | 2" |
| DMF-2824-1A | 1 | 9.5 | 15 | 0.38 | 15 | 8 | 2" | 2" |
| DMF-2024-3A | 3 | 12 | 18 | 0.6 | 6 | 8 | 3" | 2" |
| DMF-2424-2A | 2 | 14 | 22 | 0.56 | 11 | 8 | 3" | 2" |
| DMF-3624-1A | 1 | 16 | 24 | 0.64 | 24 | 8 | 3" | 3" |
| DMF-2824-2A | 2 | 19 | 30 | 0.76 | 15 | 8 | 4" | 2" |
| DMF-2424-3A | 3 | 22 | 32 | 0.84 | 11 | 8 | 3" | 3" |
| DMF-4824-1A | 1 | 29 | 43 | 1.13 | 43 | 8 | 3" | 3" |
| DMF-3624-2A | 2 | 32 | 48 | 1.28 | 24 | 8 | 4" | 3" |
| DMF-2824-3A | 3 | 28.5 | 45 | 1.15 | 15 | 8 | 4" | 3" |
| DMF-5624-1A | 1 | 39 | 58 | 1.54 | 58 | 8 | 4" | 4" |
| DMF-3624-3A | 3 | 48 | 72 | 1.92 | 24 | 8 | 6" | 3" |
| DMF-4824-2A | 2 | 57 | 86 | 2.26 | 43 | 8 | 6" | 4" |
| DMF-5624-2A | 2 | 78 | 108 | 3.08 | 54 | 8 | 6" | 4" |
| DMF-4824-3A | 3 | 86 | 129 | 3.39 | 43 | 8 | 6" | 4" |
| DMF-5624-3A | 3 | 117 | 174 | 4.62 | 58 | 8 | 8" | 4" |
| DMF-4824-4A | 4 | 115 | 172 | 4.52 | 43 | 8 | 8" | 4" |
| DMF-4824-5A | 5 | 143 | 215 | 5.65 | 43 | 8 | 8" | 4" |
| DMF-4824-6A | 6 | 172 | 258 | 6.78 | 43 | 8 | 10" | 4" |
| DMF-5624-4A | 4 | 156 | 232 | 6.16 | 58 | 8 | 8" | 4" |
| DMF-5624-5A | 5 | 195 | 290 | 7.7 | 58 | 8 | 10" | 4" |
| DMF-5624-6A | 6 | 234 | 348 | 9.24 | 58 | 8 | 10" | 4" |

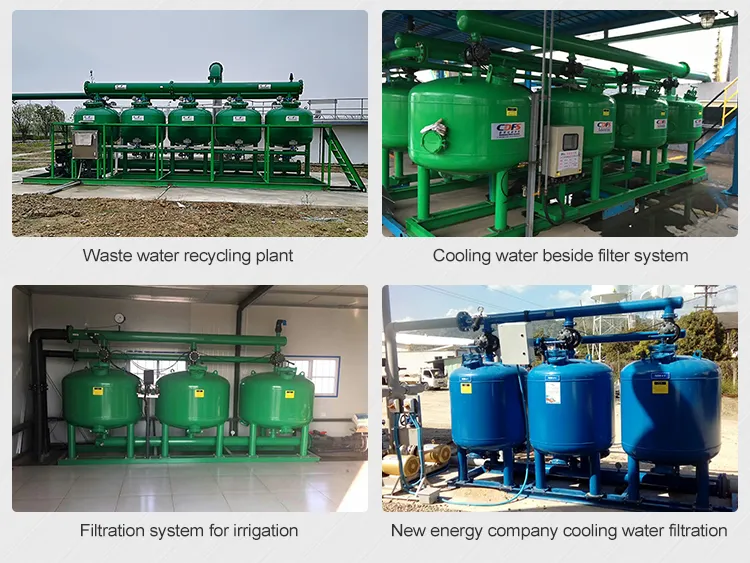

Cases pictures
Company introduction
Hunan Dawning Filter System Technology Co., Ltd. have been specialized in manufacturing and marketing water filter systems since 2002.
The filters are automatic back washing filter, self cleaning filter,sand media filter, disc filter and so on. We could provide efficient,stable solutions for irrigation and industrial water treatment.
Our products are widely used in construction, steel, electricity, petrochemical, metallurgical, pharmaceutical, paper, automotive, hotels, municipal and other major industries.
Our products have been exported to hundreds of countries and regions such as America, Canada, Chile, Australia, Italy, India, Singapore,Korea,etc. We owned 9 patents and adopted the ISO9001 and CE.
Our team are professional and always here to support you!
