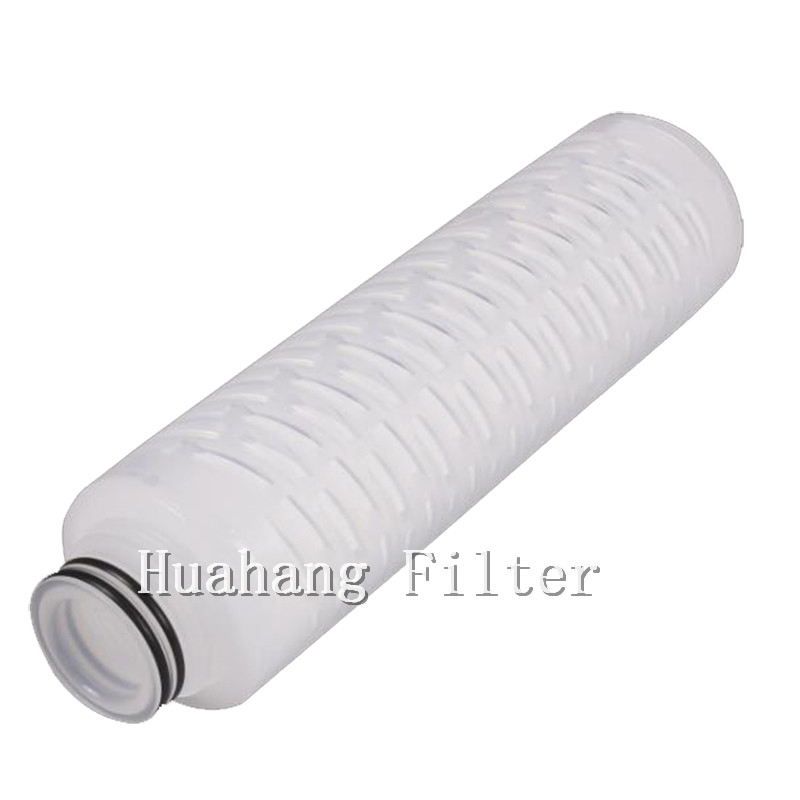

5''9.75''10''20''30''40''High efficiency nylon sterilization grade fold filter cartridge
Product Name: High efficiency nylon sterilization grade filterProduct Description: The filter medium of this type of filter adopts nylon microporous membrane. The high porosity and uniform micropore distribution are the main features of the filter. It has large flux, long life and superior chemical ......
Send Inquiry
Product Description

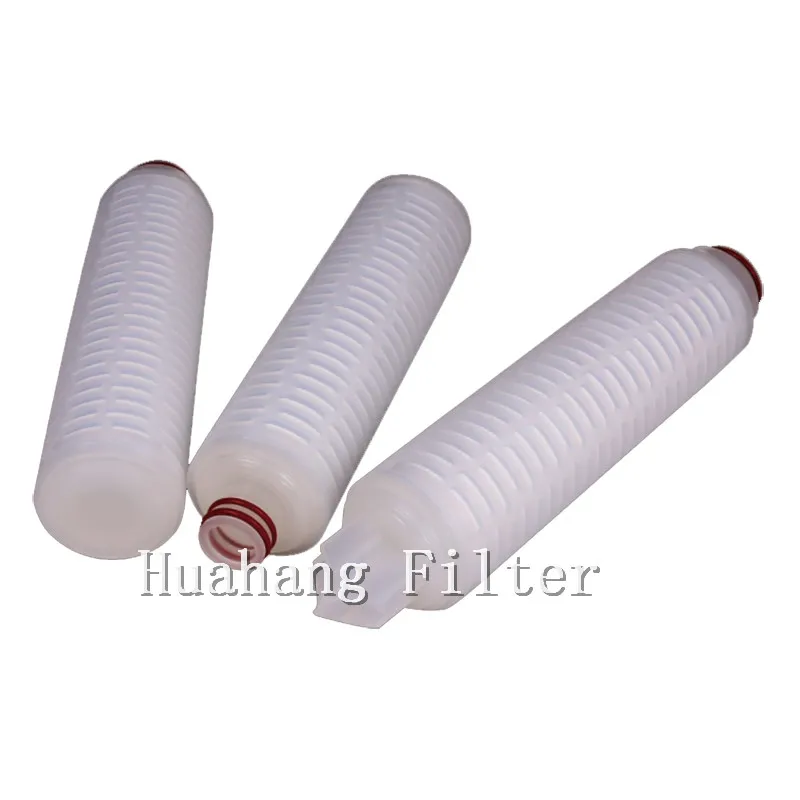

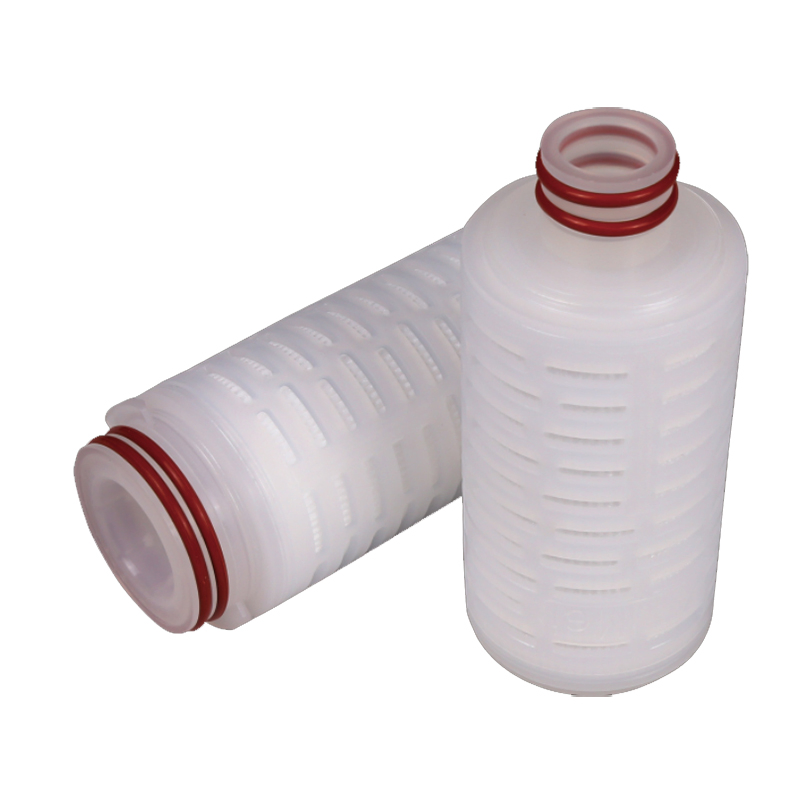

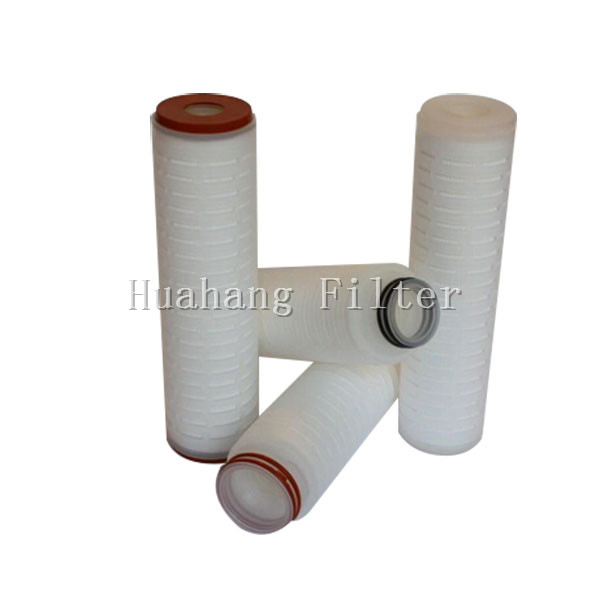

Product Name: High efficiency nylon sterilization grade filter
Product Description: The filter medium of this type of filter adopts nylon microporous membrane. The high porosity and uniform micropore distribution are the main features of the filter. It has large flux, long life and superior chemical compatibility. Each filter element is 100% integrity tested before leaving the factory to ensure stable product performance
Main features:
1. Good hydrophilicity and easy to wet
2, chemical compatibility, compatible with most chemical reagents
3, uniform aperture and strong flexibility, can ensure effective interception capacity to meet the requirements of fine filtration applications
4, no fiber shedding, very low release, fully comply with CFDA requirements
Structural material
Filter membrane nylon microporous membrane
Support / flow guiding polypropylene
Cover / center tube / end cap polypropylene
Sealing technology adhesive-free hot-melt sealing technology
Operating parameter
Maximum working temperature 60 ° C, 0.21 MPa
Maximum pressure difference (forward) 0.42MPa, 25°C
Maximum pressure difference (reverse) 0.21MPa, 25°C
Sterilization
Damp heat sterilization cabinet 121°C@30min
Online steam sterilization 121°C@30min
Filtration area
Filtration area (m2/φ69-10") ≥0.6
Filtration accuracy
Filtration accuracy (μm) 0.2, 0.45, 0.65, 1
typical application:
Fine filtration of liquid medicine
Decontamination of purified water
Sterilization filtration of cleaning solution and disinfectant

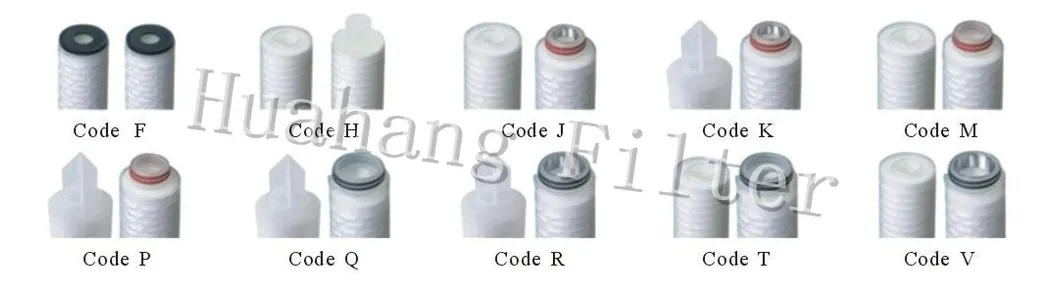

Connection type
If you are intereated in our PP pleated filter cartridge or have any questions, please feel free to contact me.
Product Description: The filter medium of this type of filter adopts nylon microporous membrane. The high porosity and uniform micropore distribution are the main features of the filter. It has large flux, long life and superior chemical compatibility. Each filter element is 100% integrity tested before leaving the factory to ensure stable product performance
Main features:
1. Good hydrophilicity and easy to wet
2, chemical compatibility, compatible with most chemical reagents
3, uniform aperture and strong flexibility, can ensure effective interception capacity to meet the requirements of fine filtration applications
4, no fiber shedding, very low release, fully comply with CFDA requirements
Structural material
Filter membrane nylon microporous membrane
Support / flow guiding polypropylene
Cover / center tube / end cap polypropylene
Sealing technology adhesive-free hot-melt sealing technology
Operating parameter
Maximum working temperature 60 ° C, 0.21 MPa
Maximum pressure difference (forward) 0.42MPa, 25°C
Maximum pressure difference (reverse) 0.21MPa, 25°C
Sterilization
Damp heat sterilization cabinet 121°C@30min
Online steam sterilization 121°C@30min
Filtration area
Filtration area (m2/φ69-10") ≥0.6
Filtration accuracy
Filtration accuracy (μm) 0.2, 0.45, 0.65, 1
typical application:
Fine filtration of liquid medicine
Decontamination of purified water
Sterilization filtration of cleaning solution and disinfectant
Connection type
If you are intereated in our PP pleated filter cartridge or have any questions, please feel free to contact me.
| ITEM | PRECISION | ADAPTOR | O-RING | LENGTH | METERIAL |
| 0.2UM | 222 | SILICON | 10" | PP | |
| 0.45UM | 226 | EPDM | 20" | PTFE | |
| 1UM | DOUBLE | VITON | 30" | PESU | |
| 5UM | OPEN END | 40" | |||
| 10UM | |||||
| 20UM |
