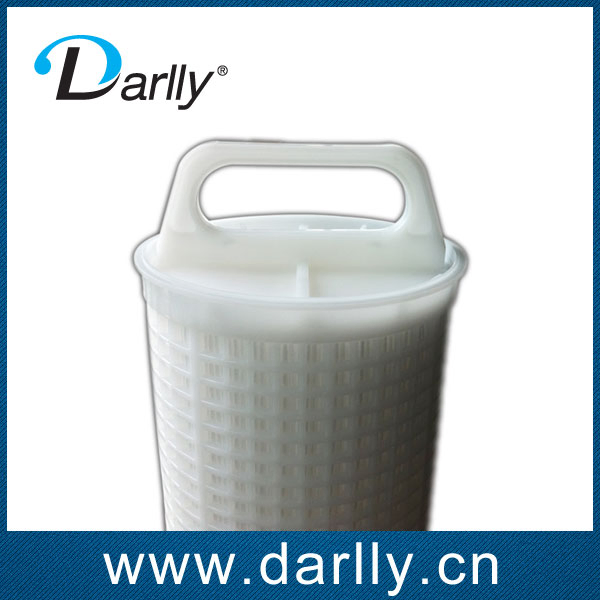

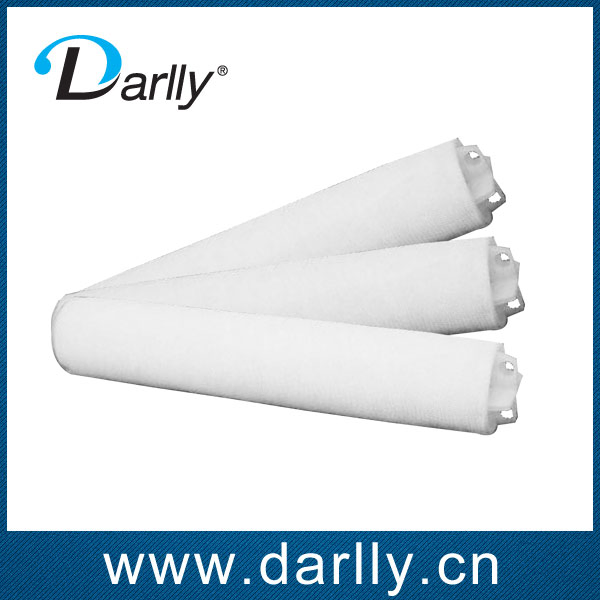

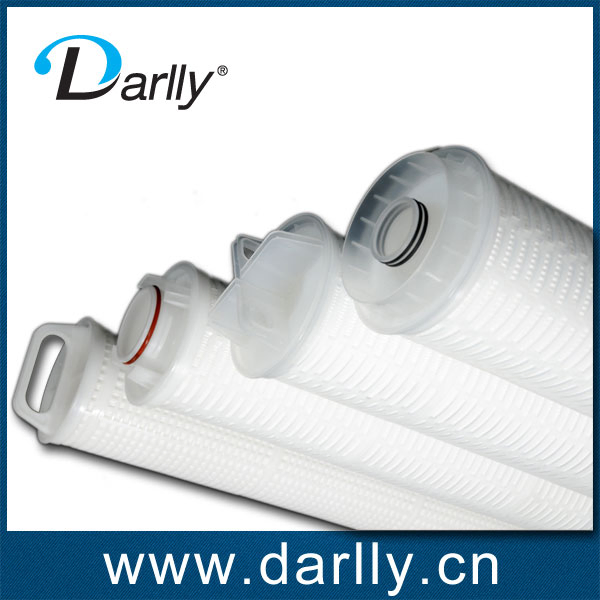

Flow-Max Pleated Filter Cartridge for High Flowment

replacement DLMHF Cuno 3M High Flow water filter cartridge
1.Media: Polypropylene, Glass Fiber;
2.Support/Drainage: PP

General Description
MHF Series Filter Cartridge is a new product developed by Darlly Filtration Equipment Co.,Ltd in Hangzhou China. This cartridge is designed to be used in different filter housings which contains 1 to 37 filter cartridges. It can be used for a variety of hardwares and for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required.

Applications
-- Prefiltration of RO, Pretreatment of sea water desalination
-- Condensate water filtration, hot water recovery in power generation
-- API, solvents, and water filtration in BioPharm market
-- The filtration of bottled water, high Fructose, edible oil, soft drinks,and milk
-- Paints and coatings, Petrochemical, Refineries
-- Microelectronics, film, fiber and resin

Features
-- High dirt holding capacity, longer service life
-- Less cartridge change out to save the labor cost
-- O-ring design cause no bypass to ensure the filtration efficiency
-- Easy handing result in less manpower
-- Wide chemical compatability for different applications

Part numbers/Ordering information
Darlly Multi-high flowment filter cartridge P/N :
DLMHF*-=-#-+(e.g.,DLMHF-5-PP-F-A)

Code *Removal RatingCode=Media Type
11um PPPolypropylene
33umGFPleated glass fiber
55um
1010um
2020um
5050um
7070um

Code #
Seal Material
EEPDM
FE-FKM
Code+End Cap Type
A Code A

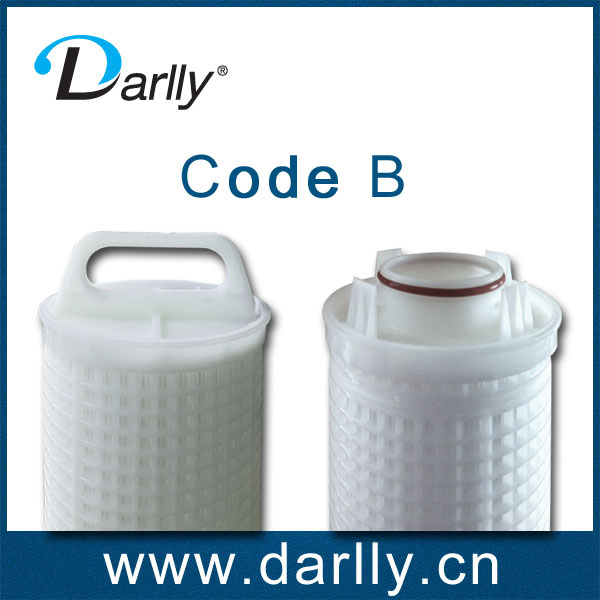

B Code B
