China FRP Tank/FRP Sand Filter Water Tank Activity Carbon Filter

Product Description

carbon filter and softener FRP tank/FRP pressure vessel/FRP tank for water

Specifications
water filter frp tank:
Epoxy FRP Pressure Vessel
1) Max operating pressure: 150PSI
2) Top Opening 2.5'' or 4''
water filter frp tank  :

Material of Construction:  FRP with Polyethylene Inner Shell
Color:  Natural Color is Standard, Specify if Other Color is Required
Opening:  Top opening with 2.5"-4.5" Threaded, or 6" Flange
Maximum Operating Pressure:  150 psi (1 MPa)
Maximum Operating Temperature:  120°F (49°C)

NO.	Size		A Diameter		B Height Without Base		C Height WithBase		System connection	Capacity
NO.	(In)	(mm)	(In)	(mm)	(In)	(mm)	(In)	(mm)	System connection	Gallons	Liters
1	06×18	140×457	6.0	152	18.0	455	18.5	470	2.5 Threaded	1.1	4.2
2	07×24	170×610	7.0	181	24.0	610	24.5	624	2.5 Threaded	3.8	15
3	07×35	170×890	7.0	181	35.0	890	35.6	905	2.5 Threaded	5.2	19.7
4	08×17	200×430	8.0	206	17.0	430	17.6	445	2.5 Threaded	3.1	11.7
5	08×35	200×890	8.0	206	35.0	890	35.6	905	2.5 Threaded	6.6	25.0
6	08×44	200×1115	8.0	206	43.9	1115	44.5	1130	2.5 Threaded	8.7	32.9
7	09×35	220×890	9.0	232	35.0	890	35.6	905	2.5 Threaded	8.3	31.4
8	09×40	220×1005	9.0	232	40.0	1005	40.2	1020	2.5 Threaded	9.5	36.0
9	09×48	220×1005	9.0	232	48.0	1215	48.4	1225	2.5 Threaded	12.7	48.0
10	10×17	240×430	10.0	257	17.0	430	17.6	445	2.5 Threaded	4.8	18.2

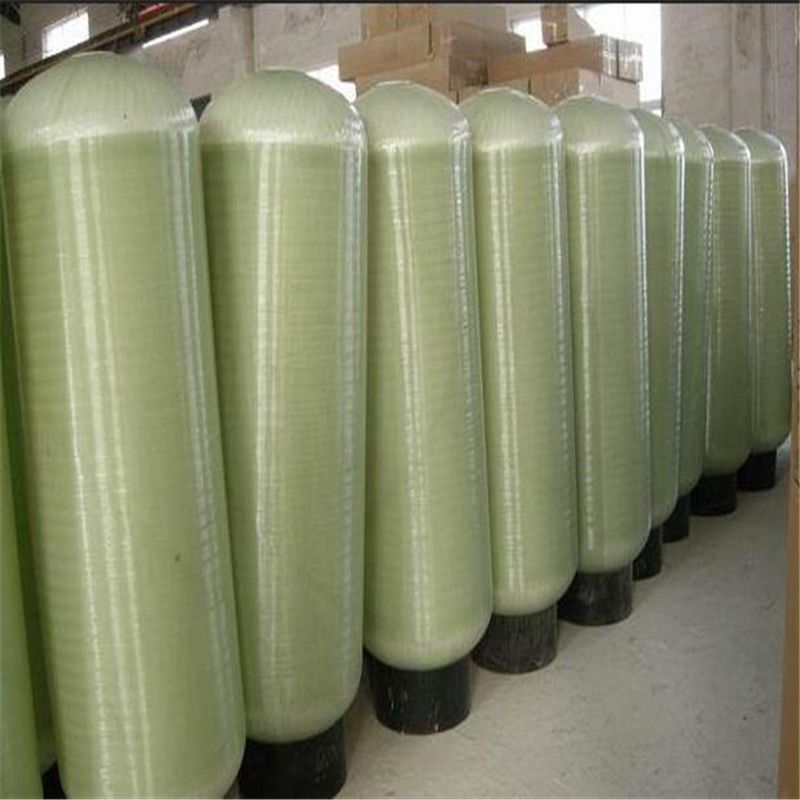

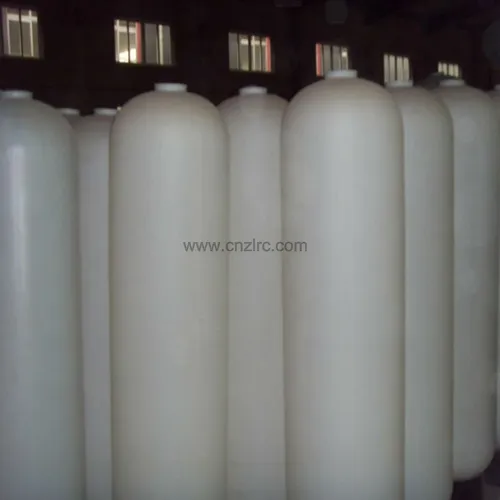

1. FRP tank is made of the advanced winding technique with high performance resin and fiber glass, the internal liner uses the high performance environmental protection food grade and corrosion resisting FRP composite material.

2. FRP tanks, it has the characteristics of corrosion resisting, high temperature resisting, ageing resisting, light weight, high strength, good quality, good appearance, convenient transportation installation, good seepage prevention, and long using life.

3. Operation pressure is 100psi, testing pressure is 150psi, bursting pressure is 300psi, and operation temperature is 1- 49C.

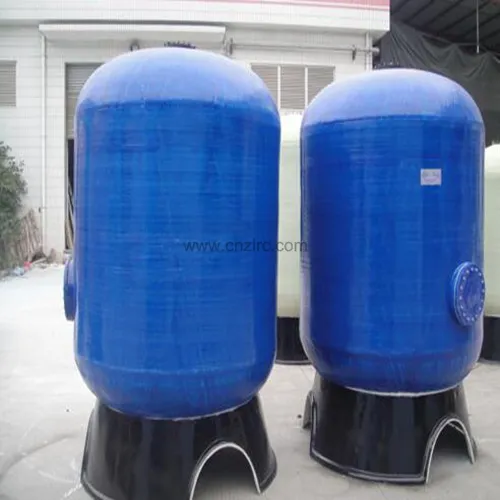

4. FRP tank has upper and under openings, and flange connections, which can form a complete set with control valves in different kinds of models and brands.

5. FRP tanks have many different Models: 818-8096(upper and under openings and side openings), 2.5'' thread, 4'' thread, and 6'' flange.

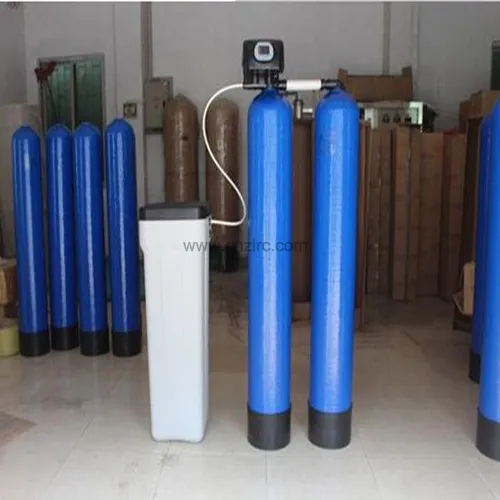

6. Accessories: upper and under distributors, black cock, multiport valves (manual and auto control valves), central tube, resin, activated carbon and other relative parts.

7. Mainly used in the field of environmental water treatment, industrial boiler, heating power station, chemicals, light industry, textile, pharmacy, biology, electronics, atomic energy, and other industries which need to soften water.

8. It also can be used to decolour and purification of the food and medicine, recycling of the precious metals and chemical raw materials, and the treatment of electroplating effluent.
9. Every tank has passed the strict water pressure testing, it can only leave factory after testing qualified, in order to ensure the tanks' quality and reliability.
10. Fatigue testing: 150000 times continuously recycling testing;

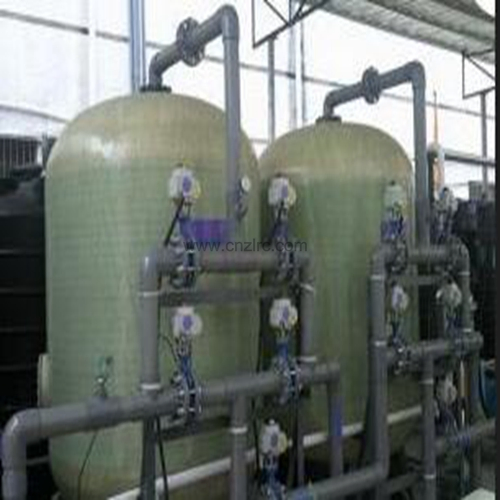

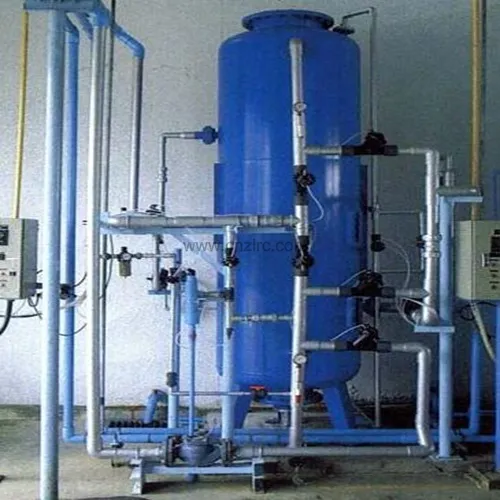

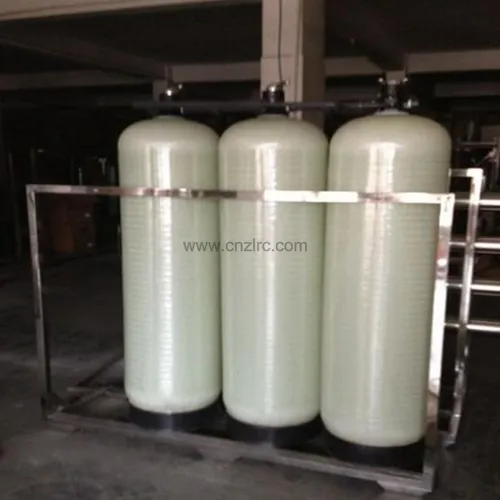

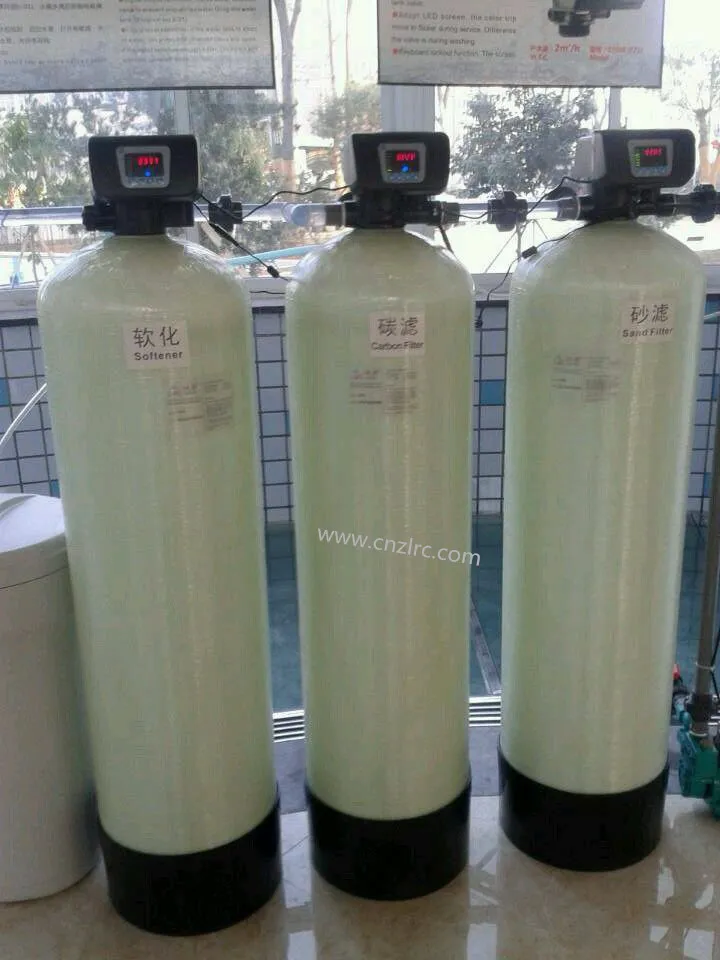

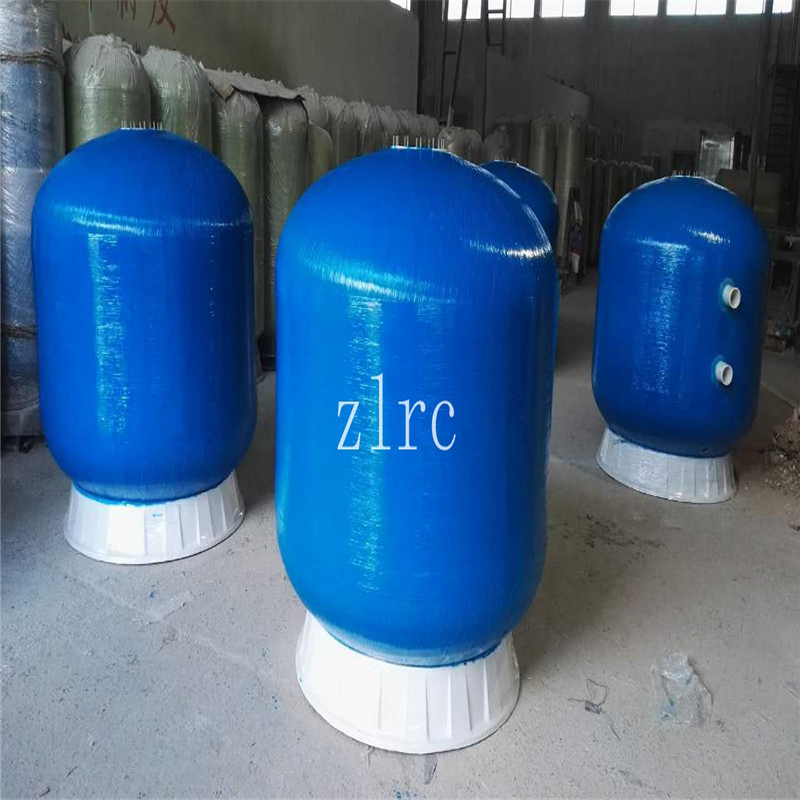

FRP Tank/FRP Sand Filter Water Tank Activity Carbon Filter

FRP Tank/FRP Sand Filter Water Tank Activity Carbon Filter

We are leader in producing the frp tank. We have more than 30 years experience in producing the frp items. Our tank mould and fiberglass filament winding machine are in competitive price in china too. We have completely after service and technical support. Any needs freely inform us. We are here all the time.

Wecoming you visit our factory sincerely.
