Product Description
Industrial SS304 RO SS316L Water Cartridge filters Cartridge Housing 40inch
| Product Name: 4" 8" water treatment purifier part 4040 ro ss membrane housing | |
| • Material: 304/316 Stainless steel | |
| • Material of end cap: ABS;SUS304;SUS316L | |
| • Max working pressure: 250Psi | |
| • Polished or brushing external surface |
Working Principle of membrane housing

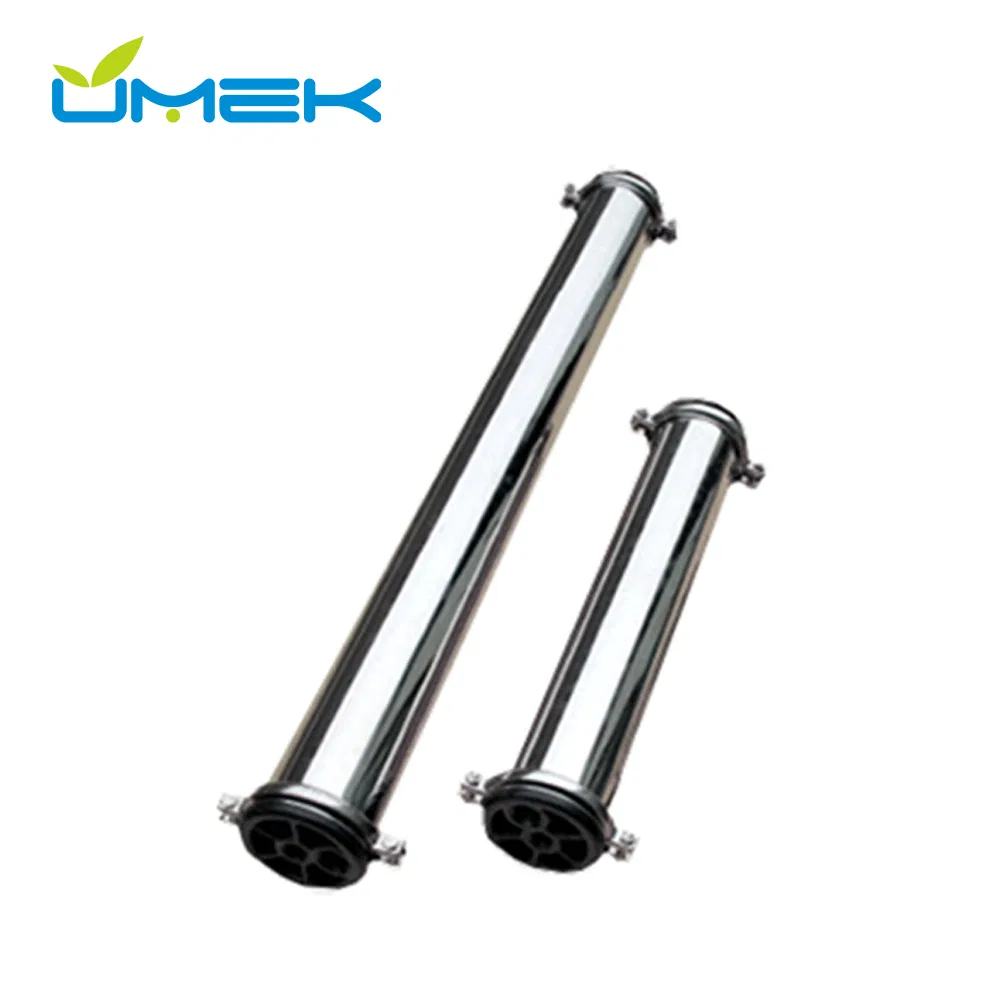

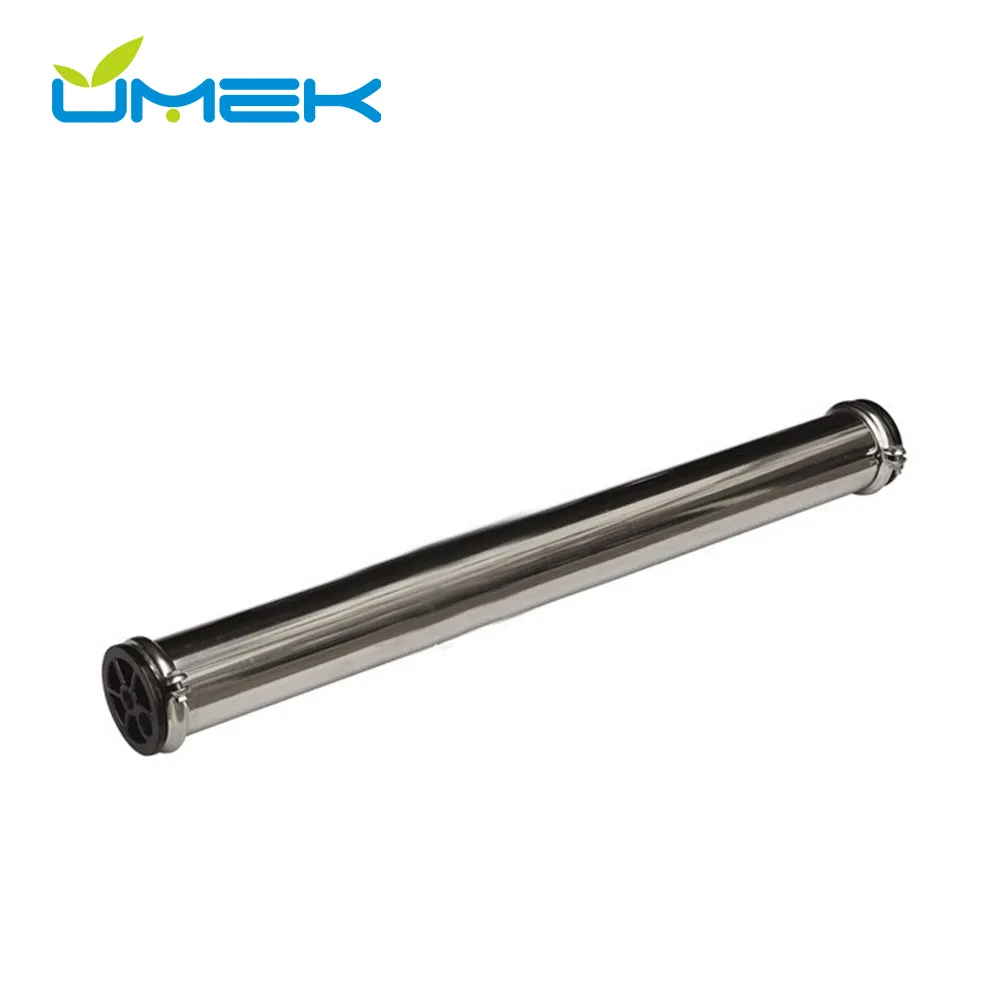

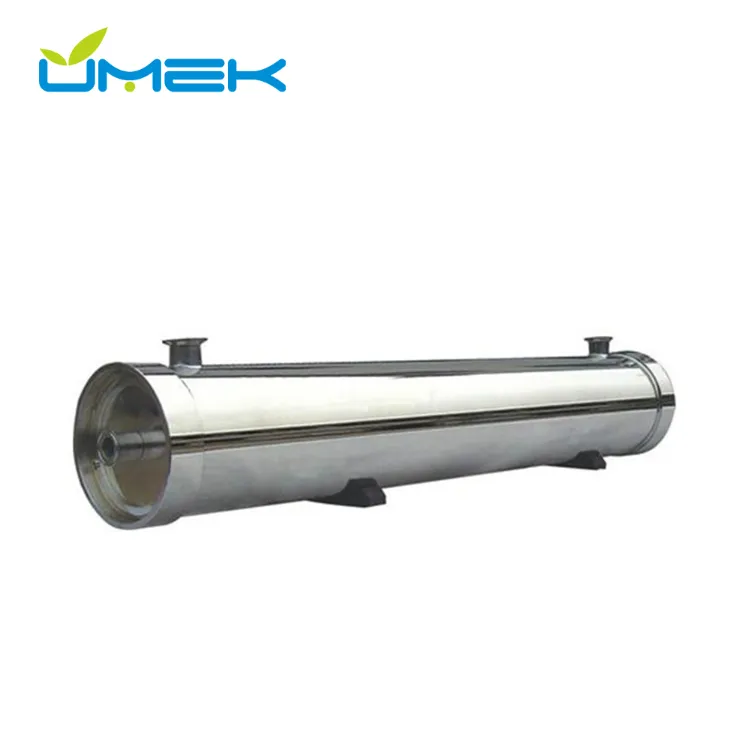

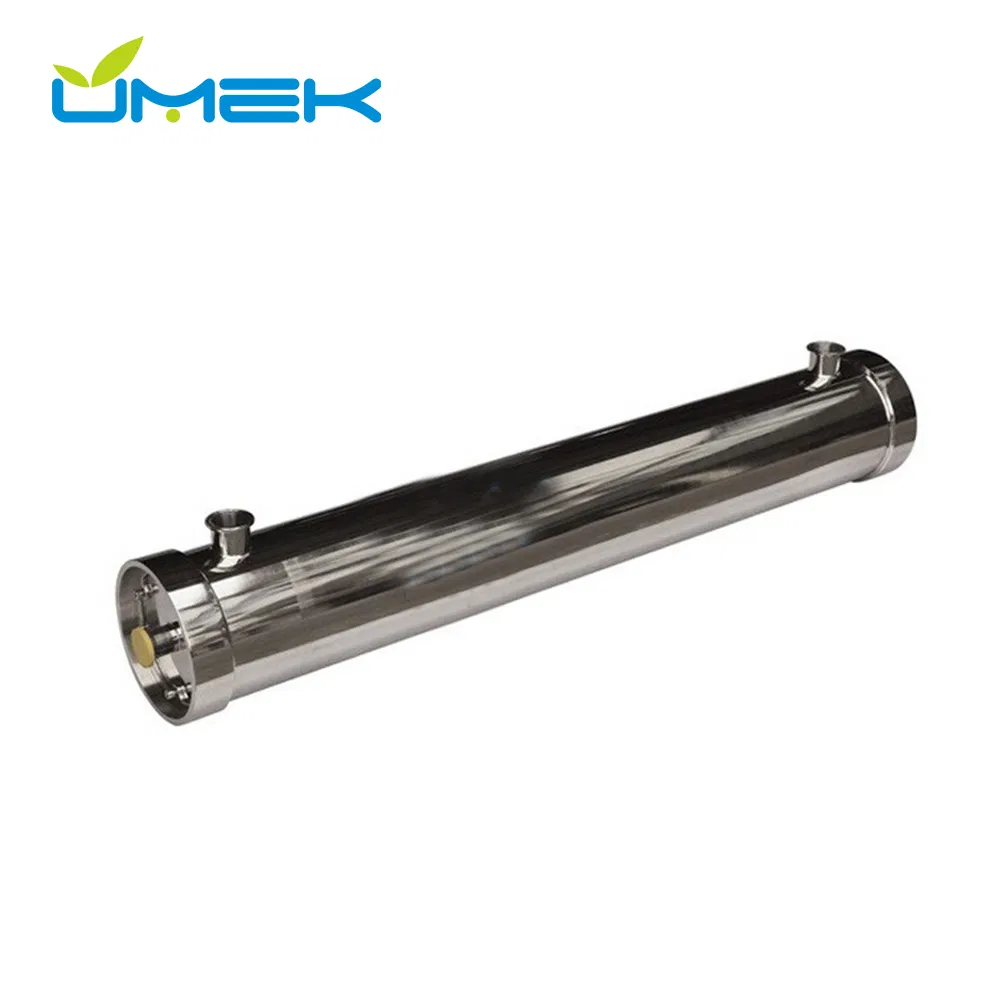

Stainless steel membrane housing is an essential part of the reverse osmosis device. Its length matches the number of RO membrane, producto's inside and outside are polished, beautiful and practical, working pressure reaches the RO system operation requirements.
Technical Parameters of membrane housing
Material of membrane housing/Body material: Seamless/Seamed

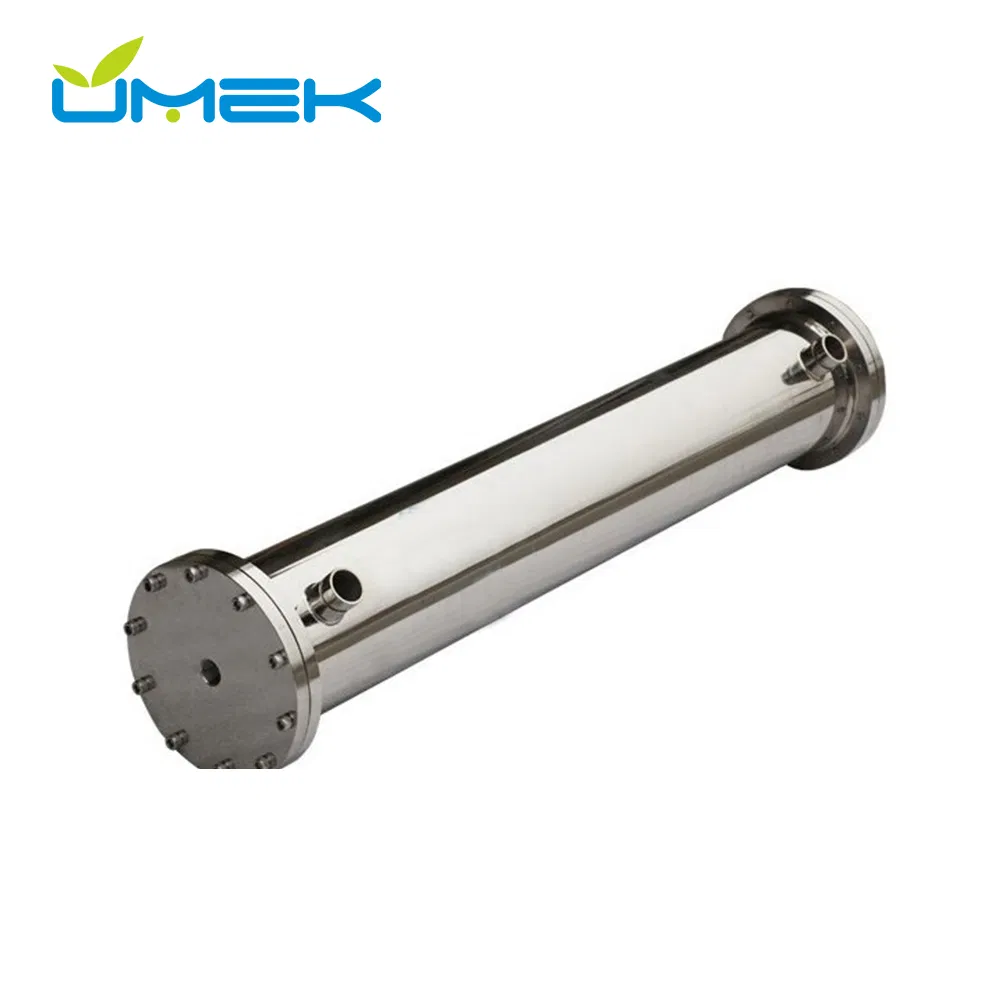

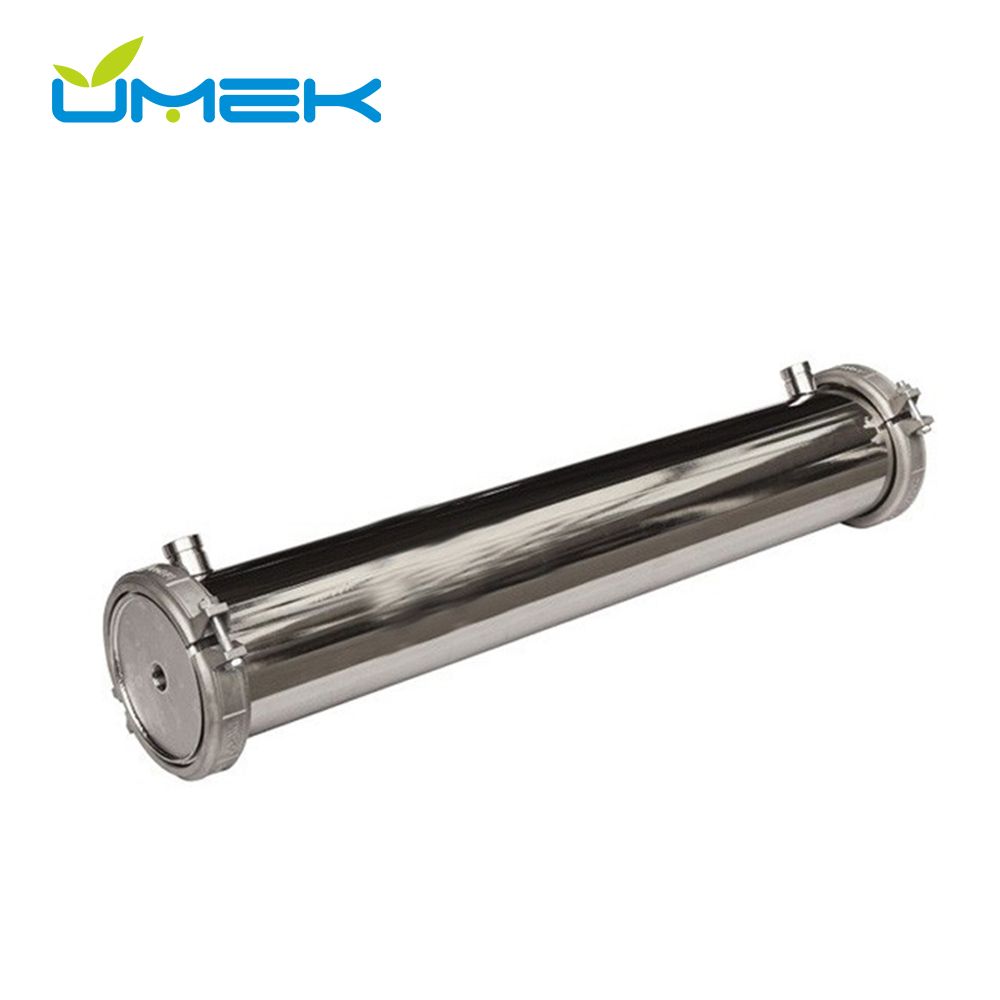

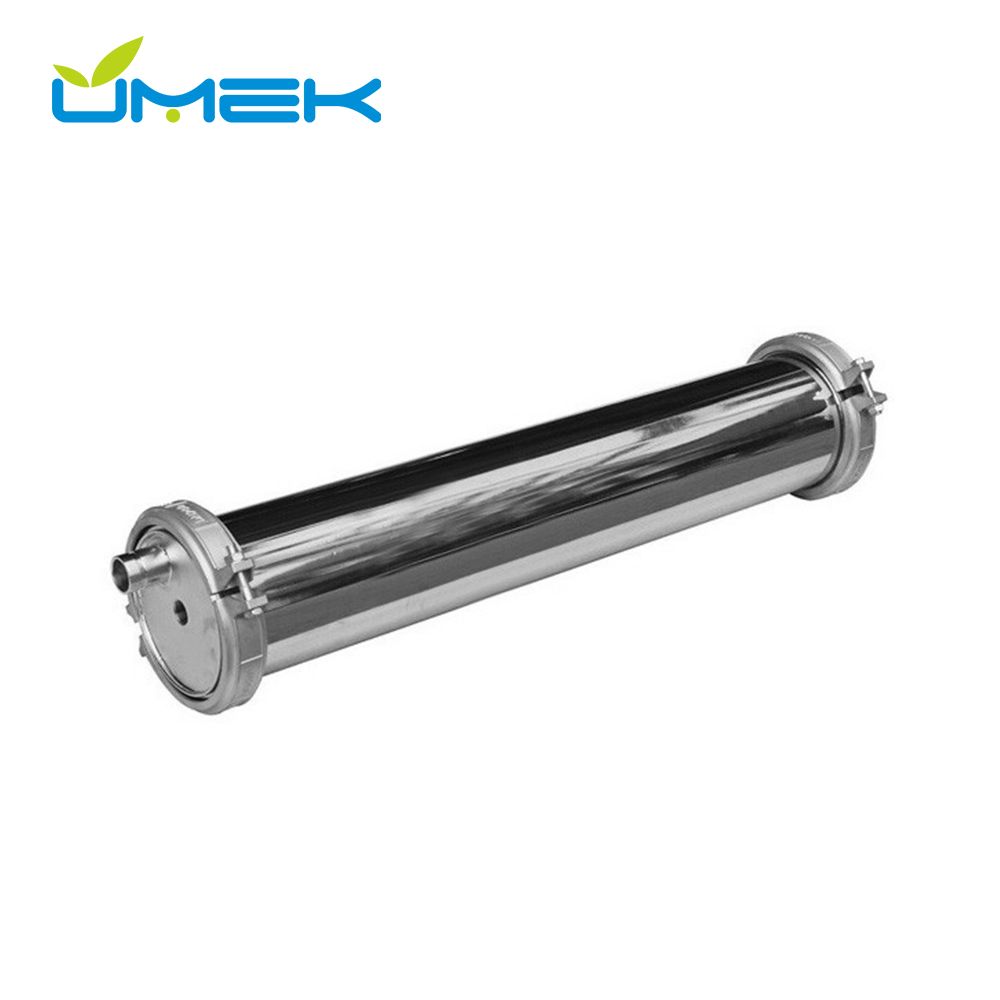

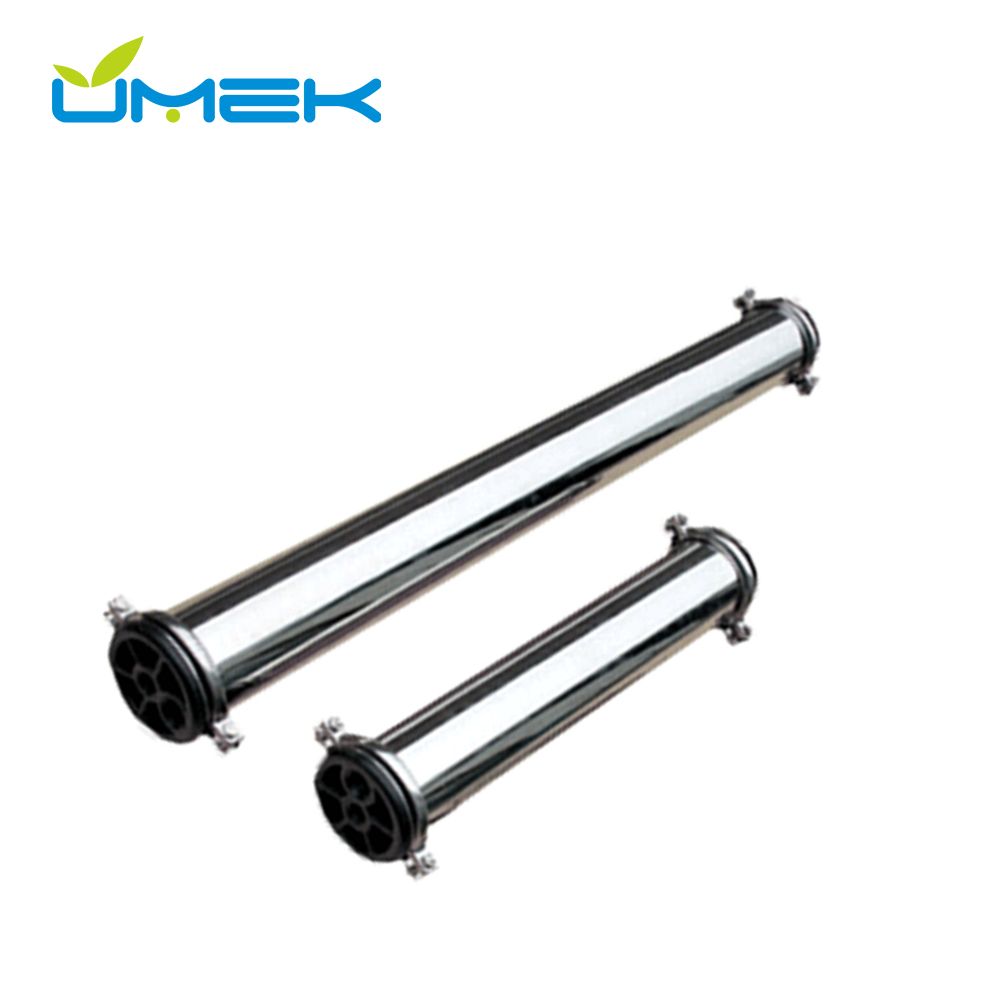

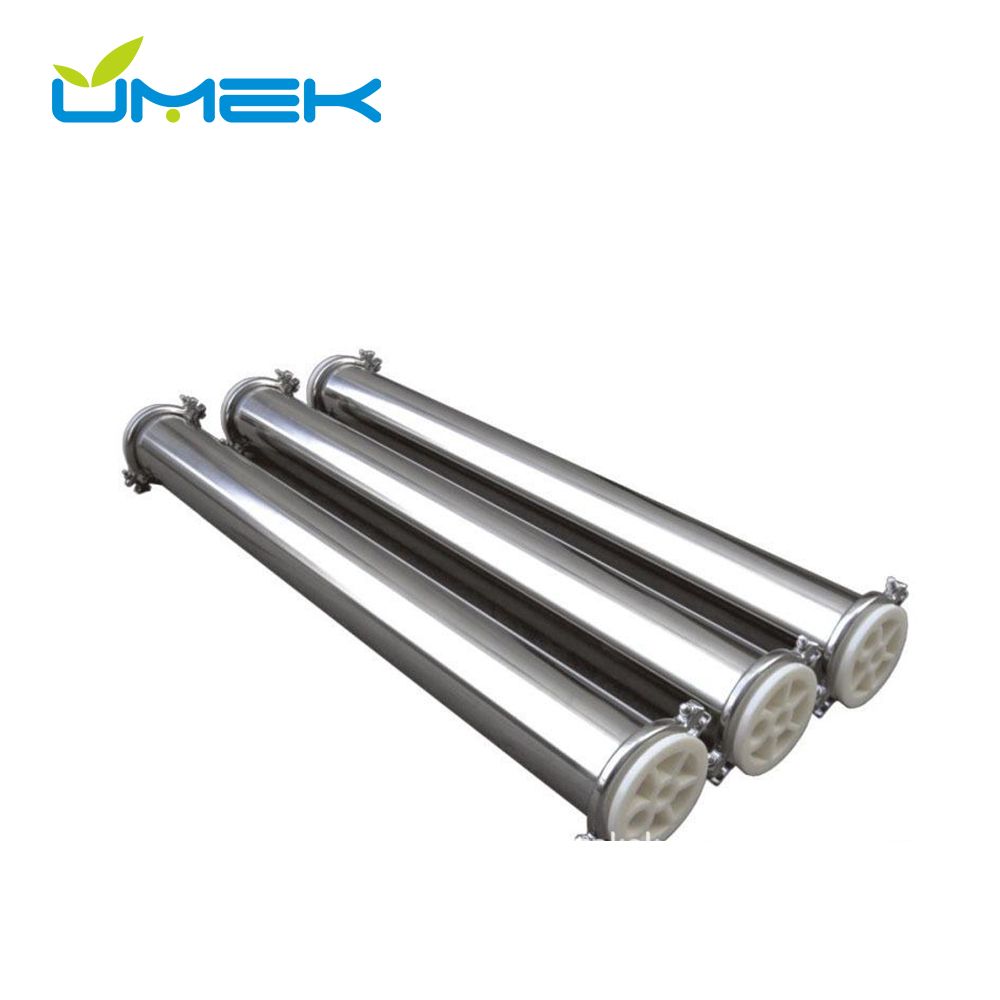

Connected type: TC-Clamp type/ Frange type/ Build-in type
Material of end cap: ABS,stainless steel

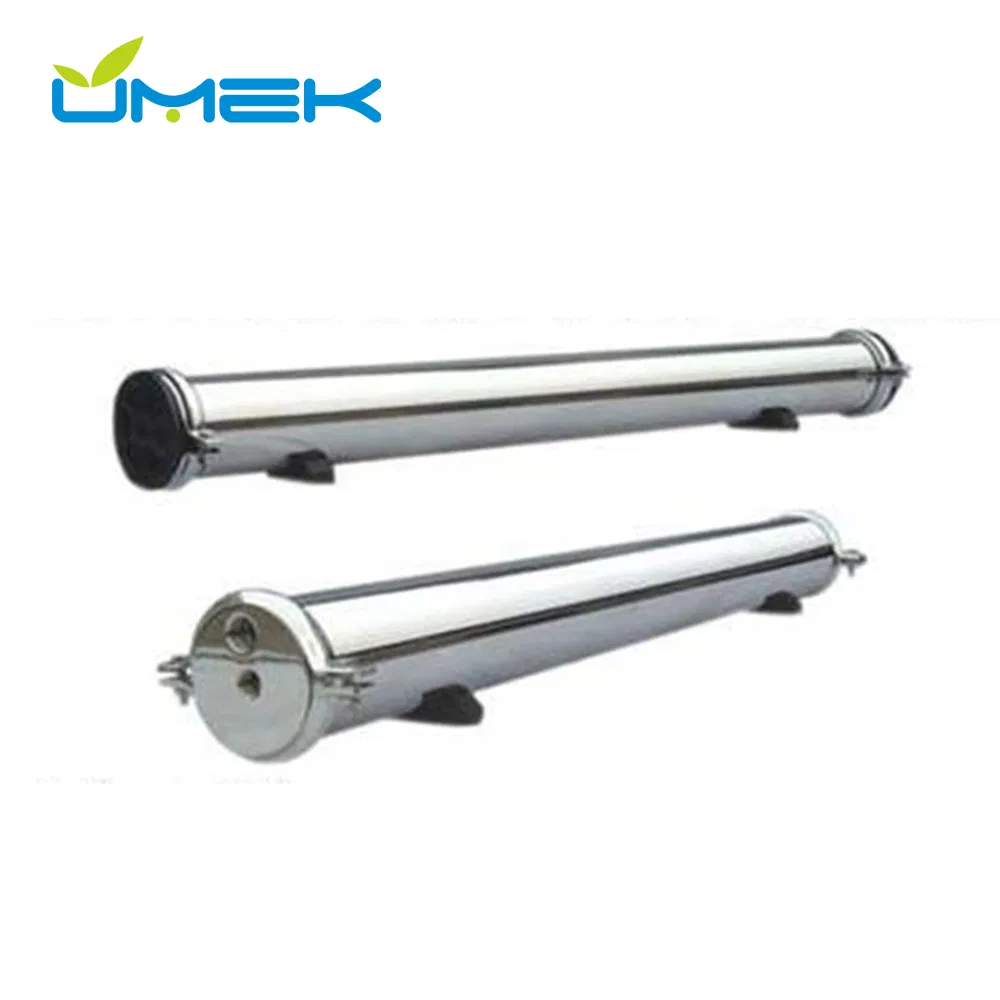

Water feed-type: End-in port/ Side-in port
Application of membrane housing
Designed for industrial water treatment, wastewater treatment, fluid separation process and can work under the high pressure
| Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
| AMD-4021E | 4'' ×21'' | 600 | / | 1/2'' | 1/2'' |
| AMD-4040E | 4'' ×40'' | 1087 | / | 3/4'' | 3/4'' |
| AMD-4080E | 4'' ×80'' | 2103 | / | 3/4'' | 3/4'' |
| AMD-40120E | 4'' ×120'' | 3119 | / | 3/4'' | 3/4'' |
| AMD-40160E | 4'' ×160'' | 4135 | / | 3/4'' | 3/4'' |
| AMD-40200E | 4'' ×200'' | 5151 | / | 3/4'' | 3/4'' |
| AMD-4040S | 4'' ×40'' | 1150 | 1010 | 3/4'' | 1/2'' |
| AMD-4080S | 4'' ×80'' | 2116 | 2026 | 3/4'' | 1/2'' |
| AMD-40120S | 4'' ×120'' | 3182 | 3042 | 3/4'' | 3/4'' |
| AMD-80160S | 4'' ×160'' | 4198 | 4058 | 3/4'' | 3/4'' |
| Model | Size (inch*inch) | Length (mm) | Length between side opening(mm) | Inlet dia | Outlet dia (inch) |
| AMD-8040E | 8'' ×40'' | 1174 | / | 1'' | 1.5'' |
| AMD-8080E | 8'' ×80'' | 2190 | / | 1'' | 1.5'' |
| AMD-80120E | 8'' ×120'' | 3206 | / | 1'' | 1.5'' |
| AMD-80160E | 8'' ×160'' | 4222 | / | 1'' | 1.5'' |
| AMD-80200E | 8'' ×200'' | 5238 | / | 1'' | 1.5'' |
| AMD-80240E | 8'' ×240'' | 6254 | / | 1'' | 1.5'' |
| AMD-8040S | 8'' ×40'' | 1308 | 1094 | 1'' | 1.5'' |
| AMD-8080S | 8'' ×80'' | 2324 | 2110 | 1'' | 1.5'' |
| AMD-80120S | 8'' ×120'' | 3340 | 3216 | 1'' | 1.5'' |
| AMD-80160S | 8'' ×160'' | 4356 | 4142 | 1'' | 1.5'' |
| AMD-80200S | 8'' ×200'' | 5372 | 5158 | 1'' | 1.5'' |
| AMD-80240S | 8'' ×240'' | 6387 | 6174 | 1'' | 1.5'' |
1.Q:Are you a factory or trading company?
A:Yes, we are a manufacture with designing, manufacturing, marketing and exporting.
2.Q:How do you usually pack the exported goods?
A:We usually use bubble bag, then wooden box with pallet.
3.Q:Which machine should I choose?
A:It depends on your raw water quality and your requirements for permeate water.
4.Q:What's your warranty?
A:Our warranty is 1 year. But normally, our machine can work 5 years before repair.
