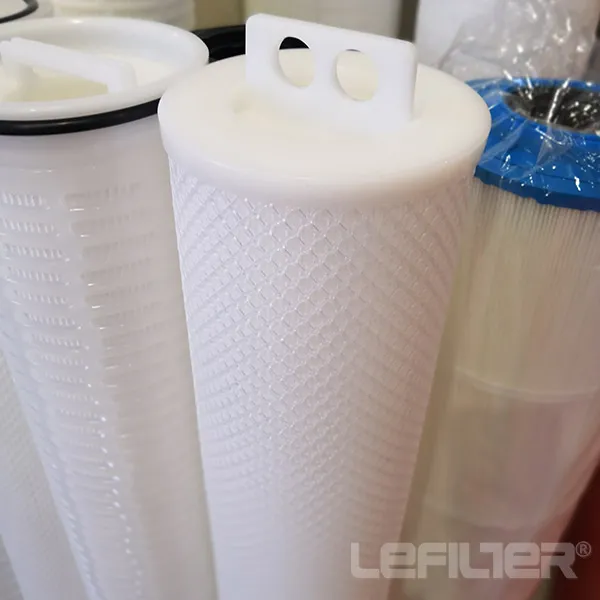

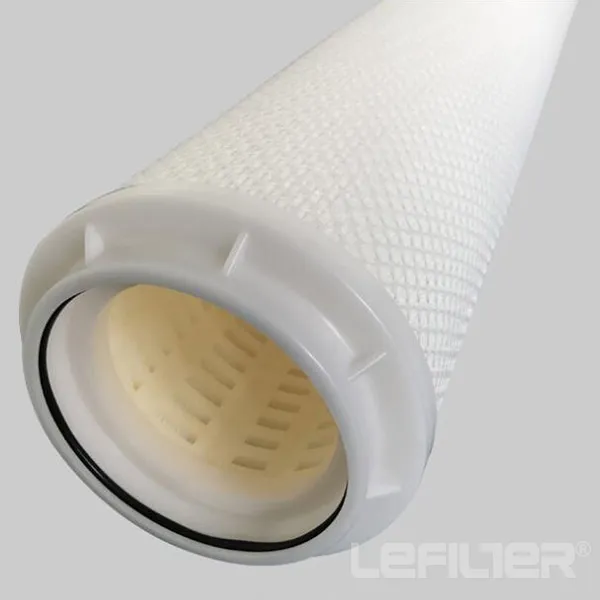

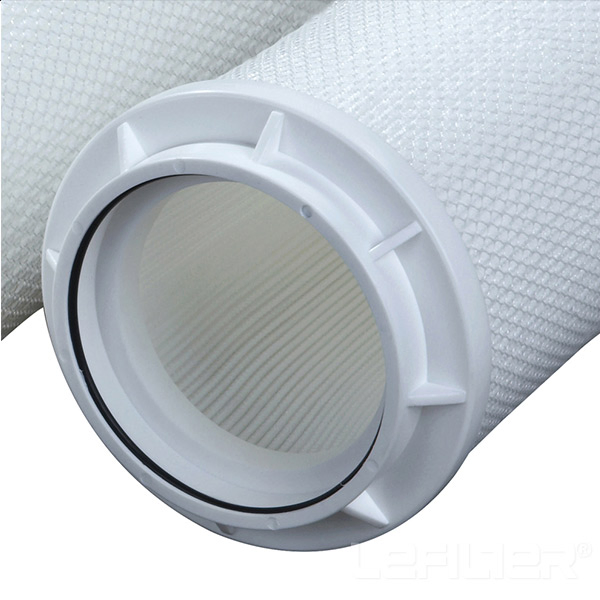

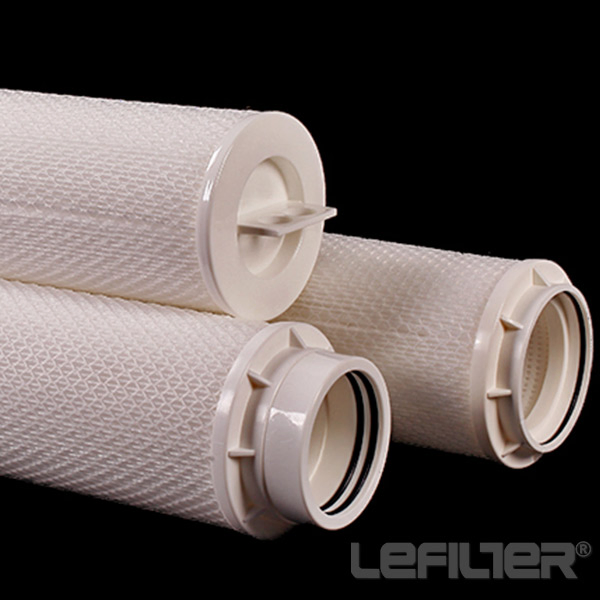

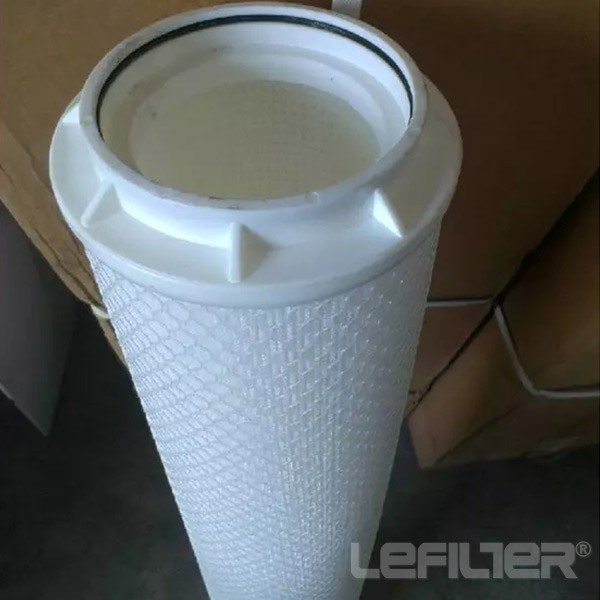

Parker Industrial Water Filter Cartridge Mfnp050-40n- Itt for Reverse Osmosis Pre-Filtration
PARKER CARTRIGE FILTERS MFNP050-40N-ITT FOR reverse osmosis Pre-FiltrationThe large flow filter element MNFP series can be used in every large flow filter.Compared with the general model, the large flow filter allows a larger size filter element and reduces investment and production costs. The horiz......
Send Inquiry
Product Description
PARKER CARTRIGE FILTERS MFNP050-40N-ITT FOR reverse osmosis Pre-Filtration
The large flow filter element MNFP series can be used in every large flow filter.
Compared with the general model, the large flow filter allows a larger size filter element and reduces investment and production costs. The horizontal design and centerless structure are more convenient and convenient to replace the filter element. fast. The maximum flow of a single filter is allowed to 1300lpm.
Features and specifications of MNFP series of large flow filter element
High flow means the use of fewer filter elements, reducing labor and operating costs;
High flow rate means the use of a smaller size filter housing, reducing investment costs and saving floor space;
The replacement of the filter element is faster, simpler and safer
O-rings ensure the reliability of Bao filters;
Hot-melt adhesive polypropylene material can prevent particles from being released and unloaded, which is different from ordinary wire wound filter elements;
The folding surface design makes the pressure drop of the high-flow filter element lower than other filter elements and has a longer service life
Allow high-flow media to pass through the filter material, which has the advantages of high efficiency, low pressure loss and long life.
The inside and outside structure of the filter element makes it easy to replace the filter element while keeping pollutants trapped inside the filter element.
The metal-free structure of the filter element allows it to undergo environmental protection treatments such as complete combustion and flattening.
Multiple filter elements can be installed in the filter housing, which can use a wide range of flow, whether it is starting or continuous operation.
The filter element is durable, and the filter can be configured in the least and economical way
Application fields of large flow filter element MNFP series:
• Potable water
• waste water
• reverse osmosis Pre-Filtration
• Lubricating oil
• coolants
MFNP1000-40N large flux folded filter element:
Nominal filtration accuracy of large flow filter element MNFP series (90%): 0.5um 1um 5um 10um
Large flow filter element MNFP series size specifications:
Outer diameter: 152mm Inner diameter: 89mm
Length: 1016mm
Surface area: 5.6 square meters
Large flow filter element MNFP series structure material:
Filter layer: microfiltration polypropylene (PP)
Supporting layer: polypropylene (PP)
End cap: glass fiber reinforced polypropylene
O-ring: ethylene propylene rubber, Teflon
Large flow filter MNFP series operating environment:
Replacement pressure difference: 2.4bar
Large flow rate: 70T/H
the highest temperature: 80 degrees Celsius
Maximum pressure drop: 3.4bar
MNFP series large flow filter selection reference:
MFNP005-40N, MFNP010-40N, MFNP010-40N-VGS, MFNP050-40N, MFNP050-40N-ITT,
MFNP050-40N-VGS, MFNP1000-40N, MFNP100-40N, MFNP100-40N -VGS
parker hi-flow filter we have
RSCP100-60EPP,RSCP200-20EPP,RSCP200-20NPP,
RSCP200-40EPP,RSCP200-40VPP,RSCP200-60EPP,
RSCP900-20EPP,RSMG045-20EPP,RSMG045-60NPP,
RSMG100-20NPP,RSMG100-20VPP,RSMG100-40EPP,
RSMG200-20NPP,RSMG200-20VPP,RSMG400-40EPP,
MFAC1000-20N,MFAC1000-40N,MFAC100-20N,MFAC100-40N,
MFAC1500-20N,MFAC1500-40N,MFAC150-20N,MFAC150-40N,
MFAC250-20N,MFAC250-40N,MFAP010-20N,MFAP010-40N,
MFAP010-40N-PHS,MFAP010-40N-VGS,MFAP010-40S,
MFAP010-40V,MFAP010-6N,MFAP020-20N,MFAP020-40N,
MFAP050-20N,MFAP050-40E,MFAP050-40N,MFAP050-40S,
MFAP050-40V,MFAP100-20N,MFAP100-40N,
MFAP100-40N-PHS,MFAP100-40N-VGS,MFAP100-40S,
MFAP100-40V,MFAP200-20N,MFAP200-40N,MFAP200-40V,
MFAP400-20N,MFAP400-40N,MFAP400-40S,MFAP400-40V,
MFAP700-40N,MFAP700-40N-KEM,MFDCOMPONENTSV2,
MFDCOMPONENTSV3,MFNC005-40N,MFNC005-40N-SHL,
MFNC010-40N,MFNC050-40N,MFNC100-40N,MFNC100-40V,
MFNG100-40V,MFNG200-40V,MFNP005-40N,MFNP005-40V,
MFNP010-40N,MFNP010-40N-CHR,MFNP010-40N-PHS,
MFNP010-40N-VGS,MFNP010-40S,MFNP050-40E,
MFNP050-40N,MFNP050-40N-CHR,MFNP050-40N-ITT,
MFNP050-40N-PHS,MFNP050-40N-VGS,MFNP050-40S,
MFNP050-40V,MFNP1000-40N,MFNP100-40E,MFNP100-40N,
MFNP100-40N-PHS,MFNP100-40N-VGS,MFNP100-40S,
MFNP200-40N,MFP004-40N,MFP400-40N,MFPCP010-40S,
MFPCP020-40S,MFPCP050-40S,MFPCP100-40N,
MFPCP200-40N,MGSP005-40E-SM,MGSP005-40N-SM,
MGSP005-40V-SM,MGSP020-40N-SM,MGSP020-40T-SM,
MGSP020-40V-SM,MGSP050-40N-SM,MGSP050-40V-SM,
MGSP100-40E-SM,MGSP100-40N-SM,MGSP200-40E-SM,
MGSP200-40N-SM,MGSP400-40E-SM,MGSP400-40N-SM,
MGSP400-40T-SM,MGSP400-40V-SM,MGSP700-40N-SM,
MXCP010-40N-SM,MXGC020-40E-SM,MXGC100-30N-SM,
MXGC100-40N-SM,MXGC700-40N-SM,MXGC700-40V-SM,
MXGC900-40N-SM,MXGP005-40E-SM,MXGP005-40N-SM,
MXGP005-40V-SM,MXGP020-30N-SM,MXGP020-40N-SM,
PPL-347-S1B-40E
PPL-347-S1B-10L
FAQ
Q: Are you manufacturer?
A: Yes, we are direct manufacturer and export experience over 12 years , and has 6 branch in China and 1 branch in Australia,also our factory is located in Xinxiang City,China. Welcome you visit to our factory!
Q: How is the quality of the filters?
A: 'Quality is our culture!"
As a result, all of our replacement elements are manufactured rights here in China, under the most rigorous quality standards. Additionally, all of our filter elements carry Seven ISO Standards and we fully guarantee all of our products.
Q: How do you guarantee the after-sale service?
A: Before shipment, the filters are checked one by one. If any problems caused by the product itself, we will supply you the new replaced one or refund the money.
Q: Can you design OEM according to the working condition?
A: Yes. We have professional R&D department , and we can design the more suitable filters for you.
