China PE Inner Shell Filter Water Treatment FRP Vessel

Product Description

FRP TANK/VESSEL

8"- 63"dia. For multi-media filter and softerner

1).PE(Polyethylene)seamless one-piece tank liner:

2).2.5" precision injected model with threaded opening for 8"-16" dia.Tanks ;

3).4"precision injected model with threaded opening for 16",18",24",30",36" dia.Tanks;

4).6"Aluminum alloy flange opening for 36",42",48",60",63"dia. tanks;

5).Continuous strands of fiber-glass with high strength Epoxy resin;
6).Completely rust and corrosion free;
7).FRP reinforced tripod base.

Application:

All feed water and waste water treatment application, included in commercial and industrial field.

specification		volume	opening		LA	LB	LC	X	O.D	weight
INCH	MM	L	TOP	Botton	MM	MM	MM	MM	MM	KG
7×17	Φ180×430	8.6	2.5''NPSM	\	428	414	398	292	181	1.6
7×35	Φ180×905	20.1	2.5''NPSM	\	904	890	874	768	181	2.8
8×17	Φ205×445	11.3	2.5''NPSM	\	446	432	416	292	206	1.9
8×35	Φ205×905	24.0	2.5''NPSM	\	905	891	875	751	206	3.2
8×44	Φ205×1130	32.5	2.5''NPSM	\	1131	1117	1101	977	206	3.9
9×35	Φ230×905	32.0	2.5''NPSM	\	905	891	875	734	232	3.9
9×42	Φ230×1085	39.0	2.5''NPSM	\	1085	1071	1055	914	232	4.5
9×48	Φ230×1230	44.7	2.5''NPSM	\	1232	1218	1202	1061	232	4.8
10×17	Φ255×445	17.8	2.5''NPSM	\	447	433	417	259	257	2.5
10×35	Φ255×905	38.6	2.5''NPSM	\	903	889	873	715	257	4.5
10×44	Φ255×1130	49.5	2.5''NPSM	\	1130	1116	1100	942	257	5.6
10×54	Φ255×1390	61.9	2.5''NPSM	\	1390	1376	1360	1202	257	6.5
12×48	Φ300×1235	77.3	2.5''NPSM	\	1233	1223	1203	1010	305	8.0
12×52	Φ300×1340	84.8	2.5''NPSM	\	1342	1332	1312	1115	305	8.5
12×56	Φ300×1650	106.3	2.5''NPSM	\	1650	1640	1620	1425	305	11.8
12×65	Φ330×1140	82.9	2.5''NPSM	\	1142	1132	1112	900	334	8.4
13×54	Φ330×1400	103.6	2.5''NPSM	\	1400	1390	1370	1155	334	9.5
14×65	Φ355×1670	145.6	2.5''NPSM	\	1671	1661	1641	1410	360	13.3
14×65	Φ355×1670	145.6	4''-8UN	\	1670	1661	1641	1410	360	13.9
16×65	Φ400×1670	187.7	2.5''NPSM	\	1672	1662	1642	1380	410	17.3
16×65	Φ400×1670	187.7	4''-8UN	\	1671	1662	1642	1380	410	17.9
18×65	Φ450×1670	237.0	4''-8UN	\	1670	1640	1612	1310	465	27.1
21×62	Φ535×1772	312.0	4''-8UN	\	1722	1592	1574	1224	540	38.5
21×62	Φ535×2012	312.0	4''-8UN	4''-8UN	2012	1582	1570	1224	540	41.0
24x72	Φ600×1850	441.0	4''-8UN	\	1850	1750	1715	1330	612	58.0
30x72	Φ750×1850	640.0	4''-8UN	4''-8UN	1850	1670	1635	1160	765	85.0
36x72	Φ900×1850	857.0	4''-8UN	4''-8UN	1850	1600	1554	1000	918	110.0
48x72	Φ1200×1850	1202.0			1850	1558	1451	595	1224	197.0

Height tolerance±0.25''
Under 530 mm tank(abs liner)
Above 500mm tank(FRP liner)

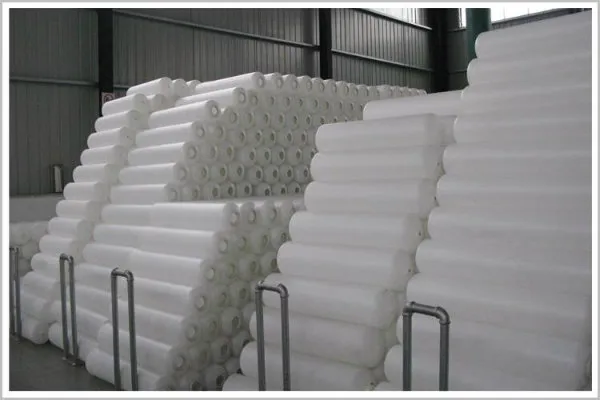

About PE liner: Rotation moulding or blowing one-piece seamless without leakage.

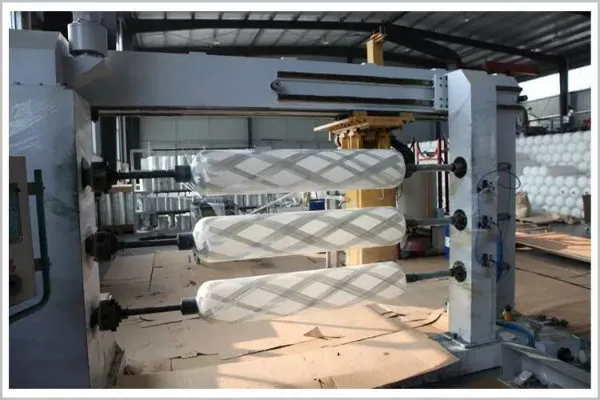

Fiberglass winding,we can do customized color for the tank:

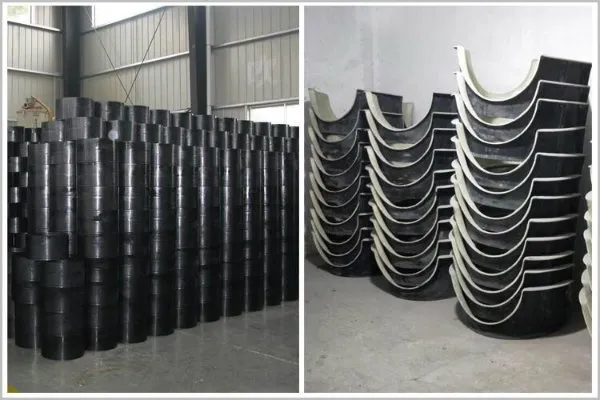

Reinforced PP base:
