Self-Cleaning Filter for Water Treatment System
The production of automatic self cleaning filter:When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles......
Send Inquiry
Product Description
The production of automatic self cleaning filter:
When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter;The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.

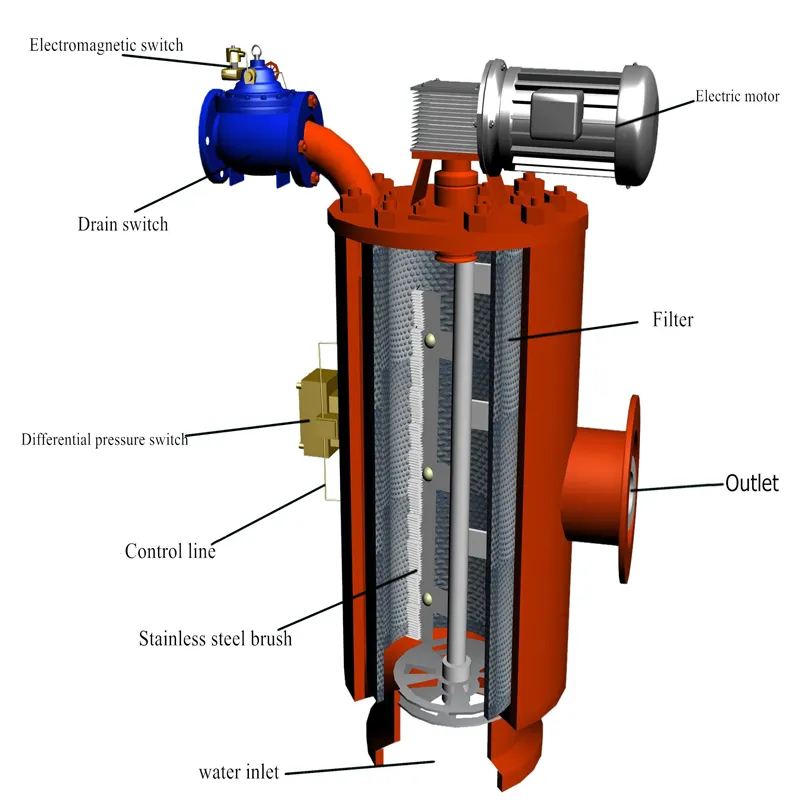

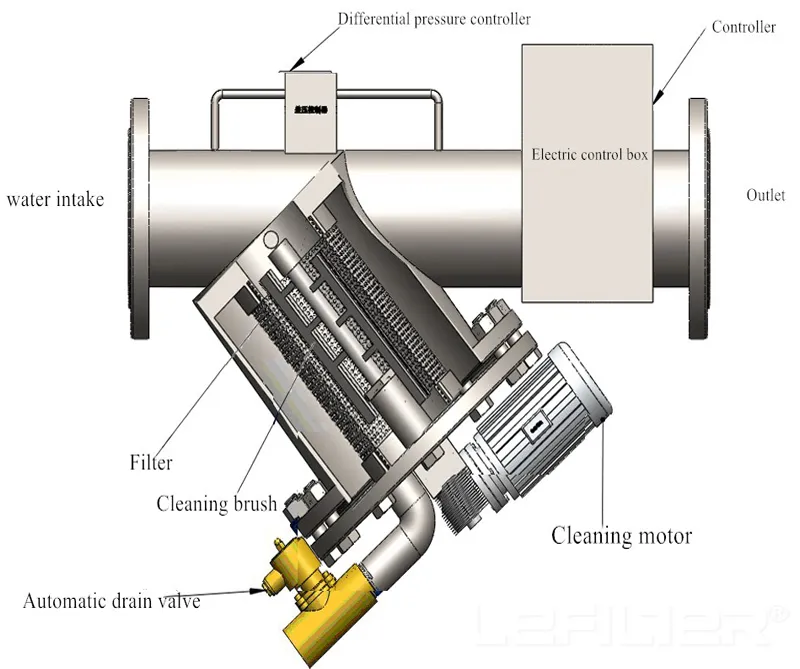

Structure diagram of straight-through automatic sewage filter

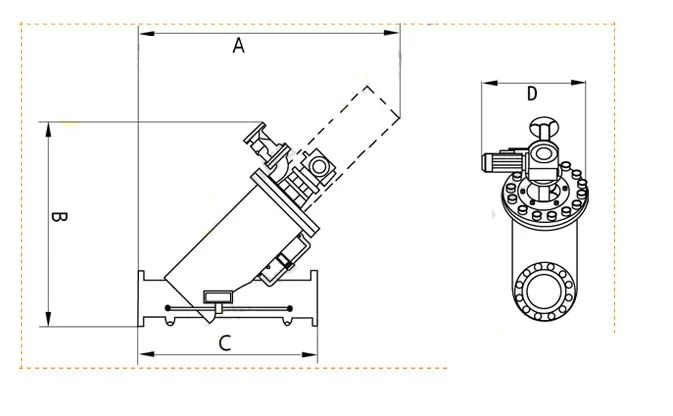

Size chart of straight-through automatic sewage filter:
Technical data sheet of straight-through automatic sewage filter

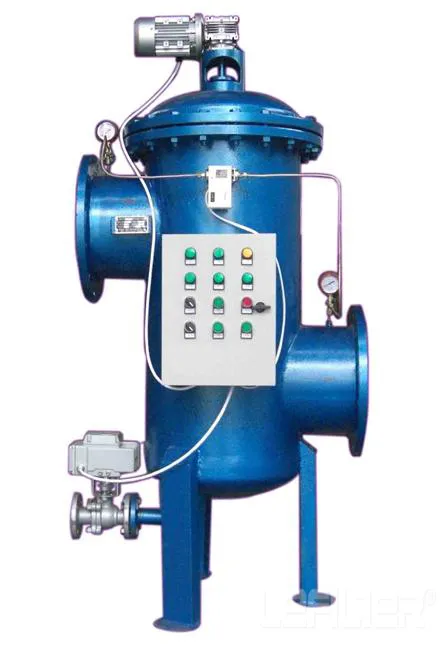

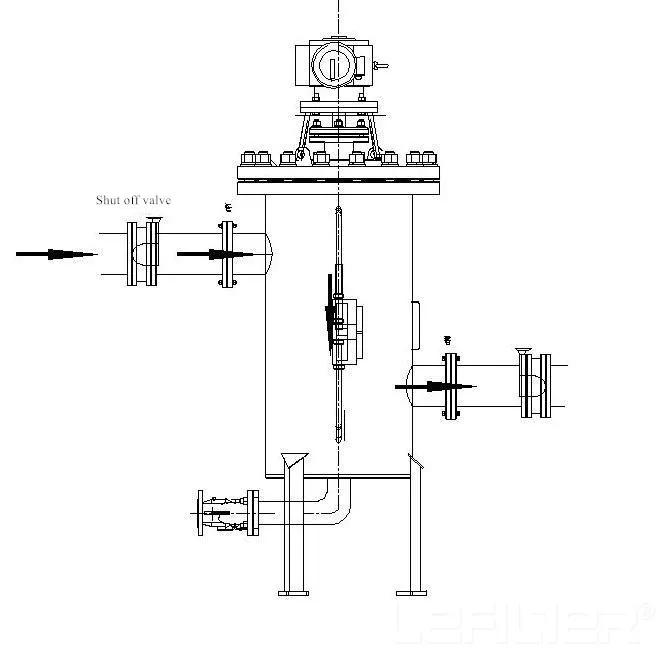

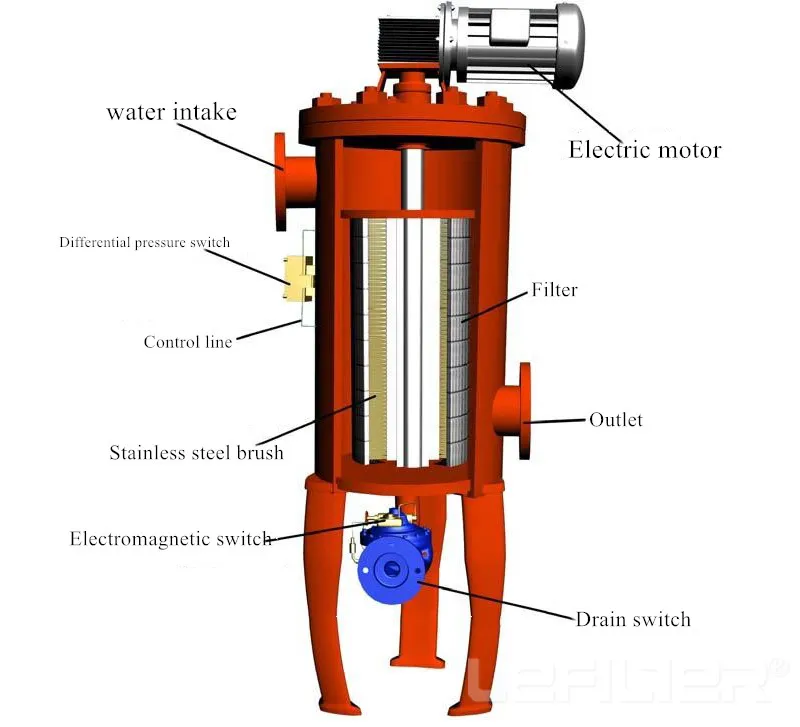

Vertical automatic self-cleaning filter
Material of automatic sewage filter:
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Filter: 304 stainless steel, 316L stainless steel
Brush holder: 304 stainless steel, 316L stainless steel
Drain valve: cast iron, stainless steel
Controller: PVC, aluminum
Sealing ring: EPDM rubber
Cleaning brush: stainless steel, nylon
Application field:
Industrial filtration applications: cooling water filtration, protection nozzles, tertiary sewage treatment, municipal water reuse, workshop water, RO system pre-filtration, pickling, papermaking white water filtration, injection molding machines, pasteurization systems, vacuum pump systems, air pressure Machine system, continuous casting system, water treatment application, cooling and heating water system
Irrigation filtration applications: groundwater, municipal water, rivers, lakes, sea water, orchards, nurseries, greenhouses, golf courses, parks

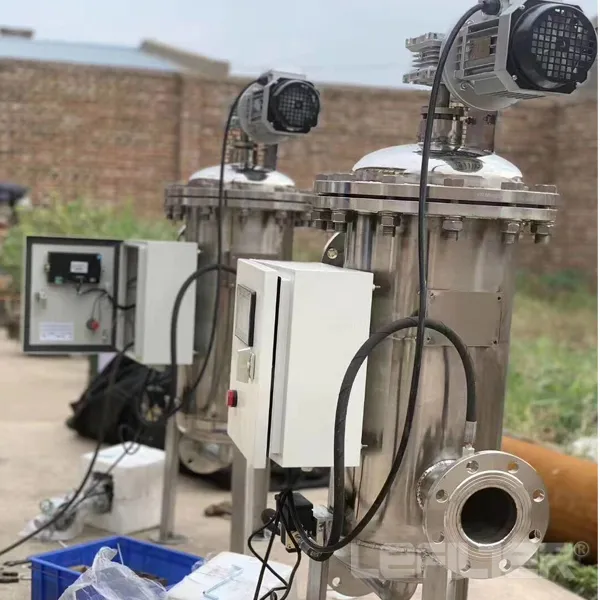

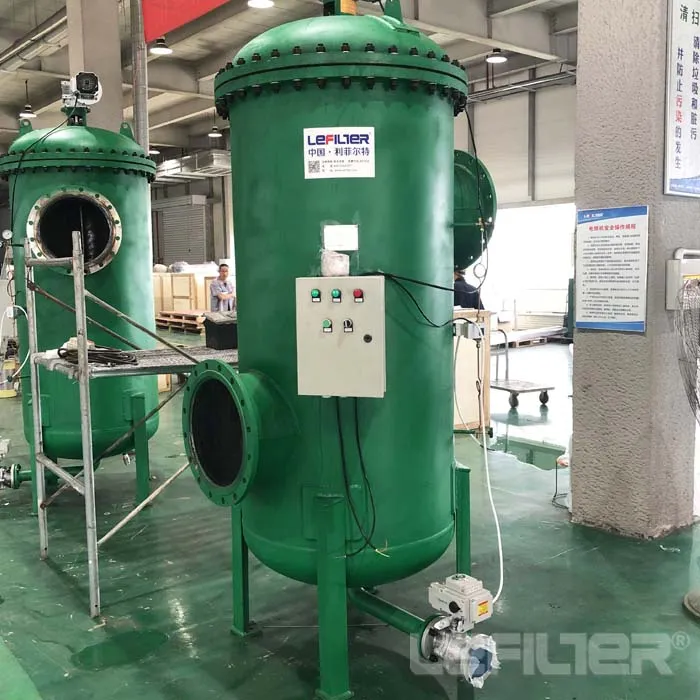

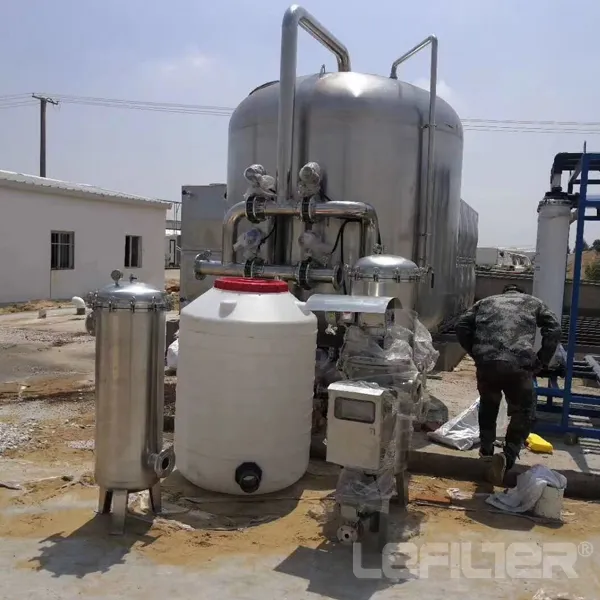

Installation site picture:
Welcome you to visit our factory!
When water runs through the water inlet into the filter cartridge, the impurities were intercepted on the inner wall of the filter cartridge, and the clean water flows out of the outlet. As the impurities in the inner surface of the filter tube piles up, the differential pressure between the inlet and outlet runs up to the pre-set value, the self-cleaning process will begin. The self-cleaning process can also begin when it reaches the washing time or manual prefabrication. And it includes two steps: Open the automatic drain valve on the filter;The cleaning brush inside the filter mesh is drove by the motor, and the impurities stopped by the filter mesh will be discharged from the drain valve. When cleaning, the system does not cut off; the whole operation process of the filter is controlled by an intelligent control box which is equipped with the filter. Control mode consists of differential pressure, time, manual and PLC control.
Structure diagram of straight-through automatic sewage filter
Size chart of straight-through automatic sewage filter:
Technical data sheet of straight-through automatic sewage filter | model | Inlet and outlet(mm) | A(mm) | B(mm) | C(mm) | D(mm) | Sewage outlet(mm) | motor power(KW) | Flow rate (m3/h) | weight (Kg) |
| LFZT-80 | DN80 | 1180 | 600 | 750 | 1560 | 40 | 0.09 | 50 | 80 |
| LFZT-100 | DN100 | 1164 | 620 | 780 | 560 | 40 | 0.09 | 80 | 105 |
| LFZT-125 | DN125 | 1242 | 680 | 800 | 560 | 40 | 0.18 | 125 | 130 |
| LFZT-150 | DN150 | 1325 | 740 | 820 | 600 | 40 | 0.18 | 150 | 160 |
| LFZT-200 | DN200 | 1583 | 800 | 860 | 630 | 40 | 0.18 | 320 | 225 |
| LFZT-250 | DN250 | 1784 | 960 | 1050 | 66 | 40 | 0.18 | 490 | 260 |
| LFZT-300 | DN300 | 1888 | 1100 | 1250 | 73 | 50 | 0.25 | 710 | 395 |
| LFZT-350 | DN350 | 2091 | 1250 | 1360 | 850 | 50 | 0.25 | 970 | 490 |
| LFZT-400 | DN400 | 2388 | 1380 | 1420 | 950 | 50 | 0.25 | 1260 | 590 |
Material of automatic sewage filter:
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Filter: 304 stainless steel, 316L stainless steel
Brush holder: 304 stainless steel, 316L stainless steel
Drain valve: cast iron, stainless steel
Controller: PVC, aluminum
Sealing ring: EPDM rubber
Cleaning brush: stainless steel, nylon
Application field:
Industrial filtration applications: cooling water filtration, protection nozzles, tertiary sewage treatment, municipal water reuse, workshop water, RO system pre-filtration, pickling, papermaking white water filtration, injection molding machines, pasteurization systems, vacuum pump systems, air pressure Machine system, continuous casting system, water treatment application, cooling and heating water system
Irrigation filtration applications: groundwater, municipal water, rivers, lakes, sea water, orchards, nurseries, greenhouses, golf courses, parks
Installation site picture:
Welcome you to visit our factory!
