Product Description

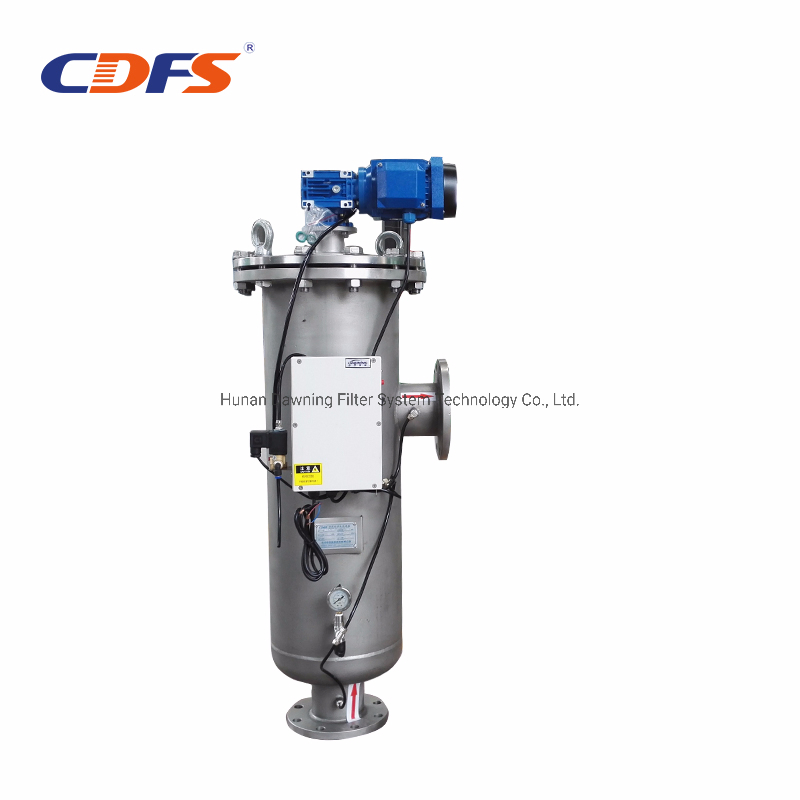

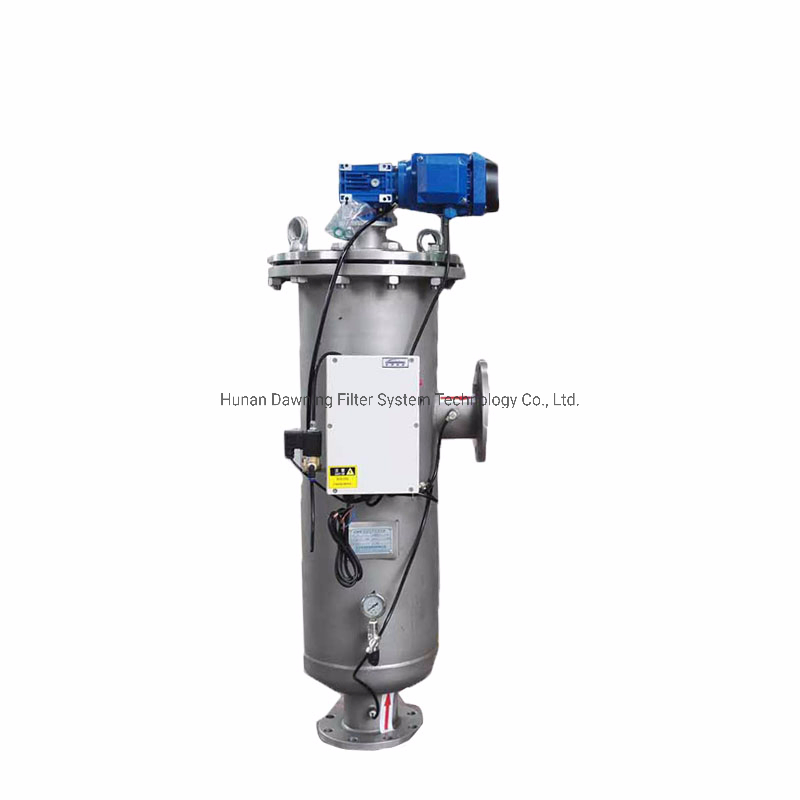

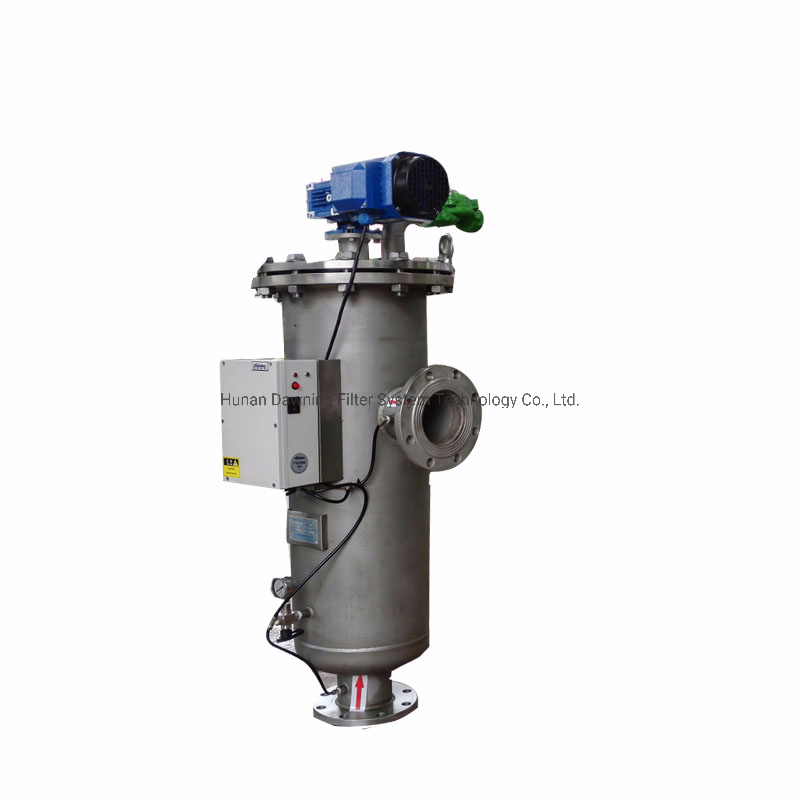

Self cleaning water filters Malaysia

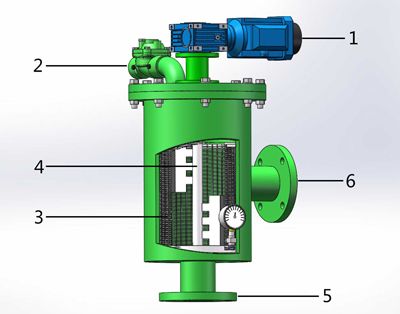

1.Electric motor
2.Automatic drain valve
3:Screen
4:Cleaning brush
5.Water inlet
6.Water outlet
Product principle
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.
When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.
It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.
Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.
Technical parameters
A single maximum flow capacity is up to 4000m3 / h
Wide filtration range:screens from 4000 to 20 microns
Working pressure(min)≥0.18Mpa
Working pressure(max)≤1.6MPa(customized is available)
Working temperature ≤65ºC
Power supply: 380 v / 50 Hz (Customized is availabel)
Cleaning method: brush type
Adjustable cleaning time: 10-200 seconds
Filter material
Shell: carbon steel, 304 stainless steel, 316L stainless steel
Screen: 304 stainless steel, 316L stainless steel
Brush holder: 304 stainless steel, 316L stainless steel
Drain valve, cast iron,copper,stainless steel,PVC,nylon
Controller: PVC, aluminum
Seal ring: EPDM rubber
Cleaning brush: stainless steel, nylon

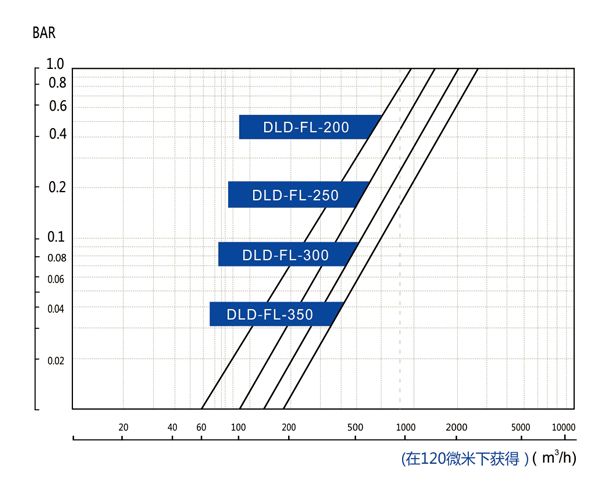

Loss of pressure table
FL series self-cleaning filter specification table

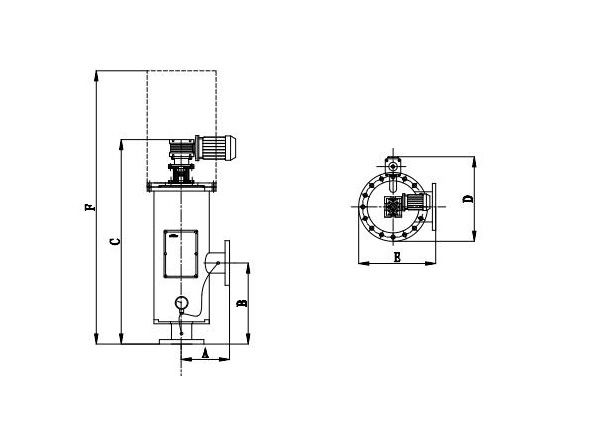

Product structure
| Model | Water in/out (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Power (KW) | Max flow (m3/h) | Weight (Kg) |
| DLD-FL-50 | 50 | 240 | 250 | 700 | 560 | 420 | 900 | 0.12 | 19 | 50 |
| DLD-FL-65 | 65 | 240 | 250 | 700 | 560 | 420 | 900 | 0.12 | 30 | 70 |
| DLD-FL-80 | 80 | 240 | 250 | 700 | 590 | 420 | 900 | 0.12 | 50 | 80 |
| DLD-FL-100 | 100 | 240 | 400 | 950 | 590 | 420 | 1250 | 0.18 | 80 | 105 |
| DLD-FL-150 | 150 | 260 | 490 | 1080 | 610 | 420 | 1400 | 0.18 | 150 | 180 |
| DLD-FL-200 | 200 | 330 | 590 | 1410 | 680 | 518 | 1860 | 0.25 | 320 | 235 |
| DLD-FL-250 | 250 | 380 | 630 | 1490 | 780 | 620 | 1990 | 0.25 | 490 | 260 |
| DLD-FL-300 | 300 | 415 | 790 | 1850 | 830 | 680 | 2650 | 0.37 | 710 | 420 |
| DLD-FL-350 | 350 | 415 | 790 | 1850 | 830 | 680 | 2650 | 0.37 | 970 | 620 |
| DLD-FL-400 | 400 | 465 | 790 | 1950 | 930 | 780 | 2750 | 0.37 | 1260 | 738 |
| DLD-FL-450 | 450 | 510 | 790 | 1980 | 950 | 870 | 2860 | 0.37 | 1600 | 860 |
Packing&Shipping
Company introduction
Hunan Dawning Filter System Technology Co., Ltd. have been specialized in manufacturing and trading water filter systems since 2002.
Our main products are automatic back washing filter, self cleaning filter,sand media filter, disc filter, and so on. We could provide efficient,stable solutions for irrigation and industrial water treatment.
Filters are widely used in construction, steel, electricity, petrochemical, metallurgical, pharmaceutical, paper, automotive, hotels, municipal and other major industries.
They have been exported to hundreds of countries and regions such as America, Canada, Chile, Australia, Italy, India, Singapore,Korea,etc.
We owned 9 patents and adopted the ISO9001 and CE.
