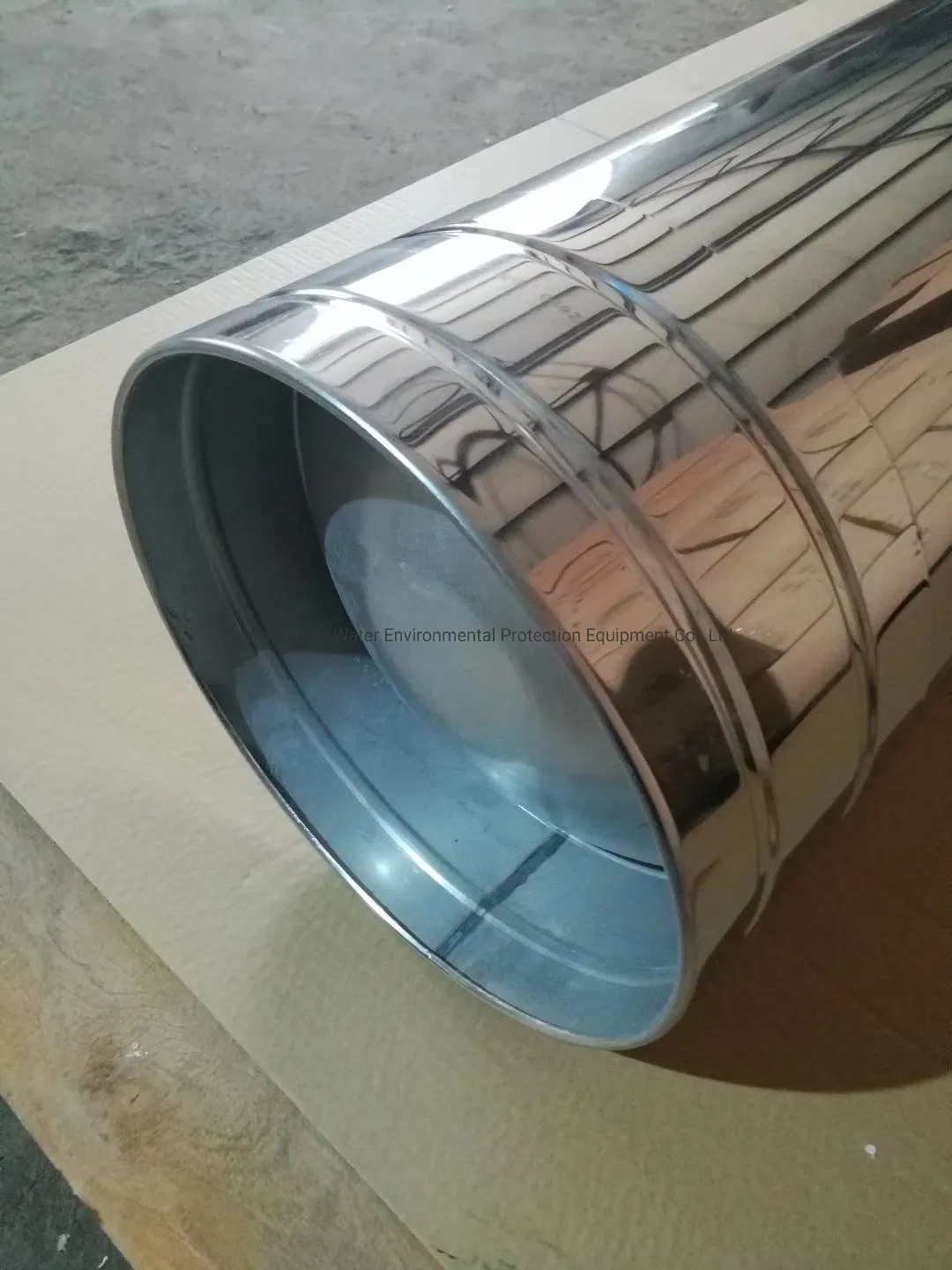

SS304 Stainless Steel Mechacial Filter Housing 1054
Stainless Steel Mechnical Filter Housing -(φ160-φ400) Specification:Material:SUS304/316/201Max.design working pressure:0.8MPaSurface finish: Mirror polishedInside Surface : Spray coating anticorrosion insideAppluication : Used for filter such as sand, active carbon, resin etc.Pos.Mod......
Send Inquiry
Product Description
Stainless Steel Mechnical Filter Housing -(φ160-φ400) Specification:
Material:SUS304/316/201
Max.design working pressure:0.8MPa
Surface finish: Mirror polished
Inside Surface : Spray coating anticorrosion inside
Appluication : Used for filter such as sand, active carbon, resin etc.
Material:SUS304/316/201
Max.design working pressure:0.8MPa
Surface finish: Mirror polished
Inside Surface : Spray coating anticorrosion inside
Appluication : Used for filter such as sand, active carbon, resin etc.
| Pos. | Model | A In/Out | D (mm) | L (mm) | H (mm) |
| 1 | 617 | NPT2-1/2 | 160 | 330 | 450 |
| 2 | 817 | NPT2-1/2 | 160 | 330 | 450 |
| 3 | 835 | NPT2-1/2 | 200 | 780 | 900 |
| 4 | 844 | NPT2-1/2 | 200 | 980 | 1100 |
| 5 | 1035 | NPT2-1/2 | 250 | 720 | 900 |
| 6 | 1044 | NPT2-1/2 | 250 | 920 | 1100 |
| 7 | 1054 | NPT2-1/2 | 300 | 1220 | 1400 |
| 8 | 1254 | NPT2-1/2 | 300 | 1220 | 1400 |
| 9 | 1265 | NPT2-1/2 | 350 | 1470 | 1650 |
| 10 | 1454 | NPT2-1/2 | 350 | 1170 | 1400 |
| 11 | 1465 | NPT2-1/2 | 400 | 1460 | 1650 |
| 12 | 1665 | NPT2-1/2 | 400 | 1460 | 1650 |
