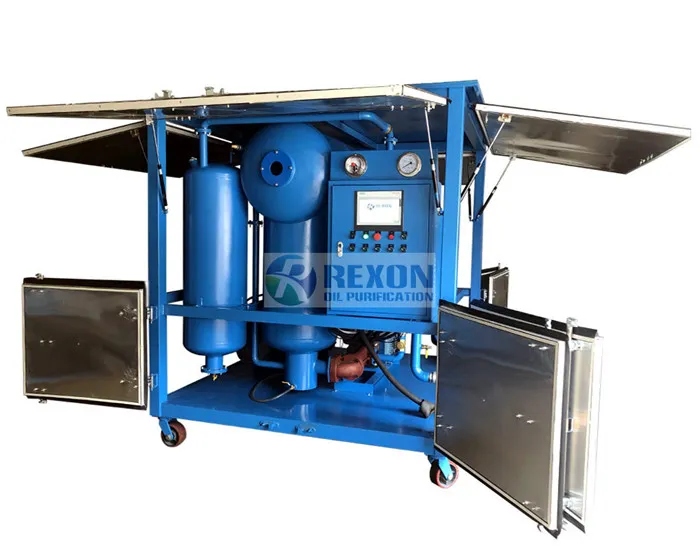

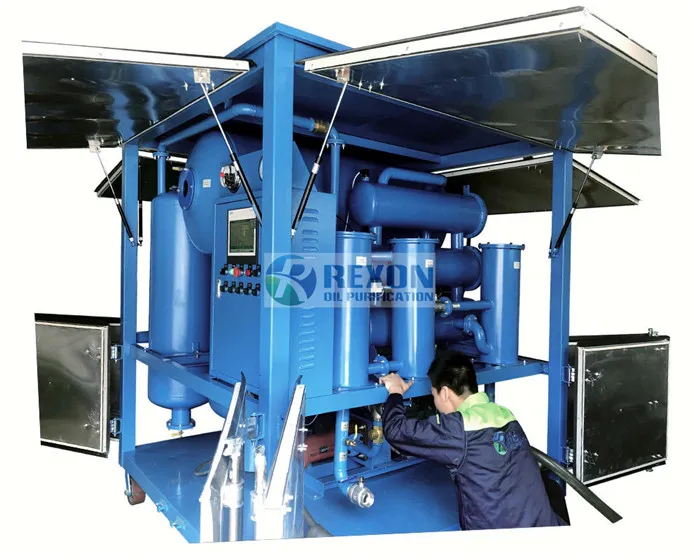

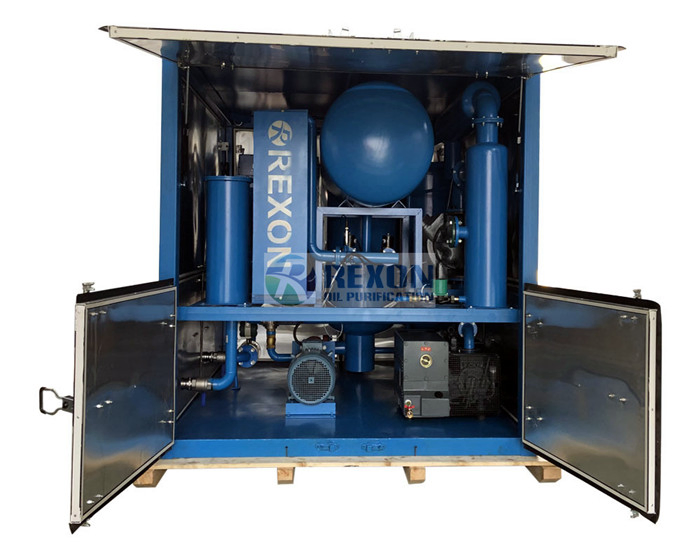

Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas From Oil
Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil-Transformer Oil Dehydration-Transformer Oil Degasification-Transformer Oil FiltrationOil Purifier Technical Features:1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary hig......
Send Inquiry
Product Description
Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil
-Transformer Oil Dehydration
-Transformer Oil Degasification
-Transformer Oil Filtration
Oil Purifier Technical Features:
1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.
2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.
3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.
4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.
Use:
To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
REXON Hi-Vacuum transformer oil treatment, Transformer oil processor, Vacuum dehydrator and degasification
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV,220KV,500KV,750KV,1000KV power transmission equipment insulating oil.
Also it applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.
Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum filling.
Insulating oil performance mainly decided by oil's water content, If the water is not saturation in the oil, it appears as the molecular states; If the water is saturation in the oil, it appears as the liquid states and stay at the bottom of container.
Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump.
The higher vacuum value(Close to 0 Pa),the higher speed of water molecular volatilization(The latest technology, the vacuum oil purifier can reach to 1 Pa working vacuum value).
The gas and water which dissolved in the oil will become degassed and exhausted by vacuum pump.
The oil temperature affects vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular.
But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad.
So we don't suggest the oil temperature excess 80°C. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.
Application:
Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil, Dielectric Oil Purifiation System is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can deal with contaminted transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Feature:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
REXON Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil, is a high capacity oil treatment machine for onsite transformer oil processing. It can deal with 18000liters oil per hour, to achive a fast oil dehyration, oil degassing process. It can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength highly, and effectively making sure electric equipments working safely and normally. ZYD-150 sytem also can be used an independent vacuum power supply, which can vacuuming and oil injecting tranformers and other electric insulation devices.
Technical Parameters:
Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
Customer Visit

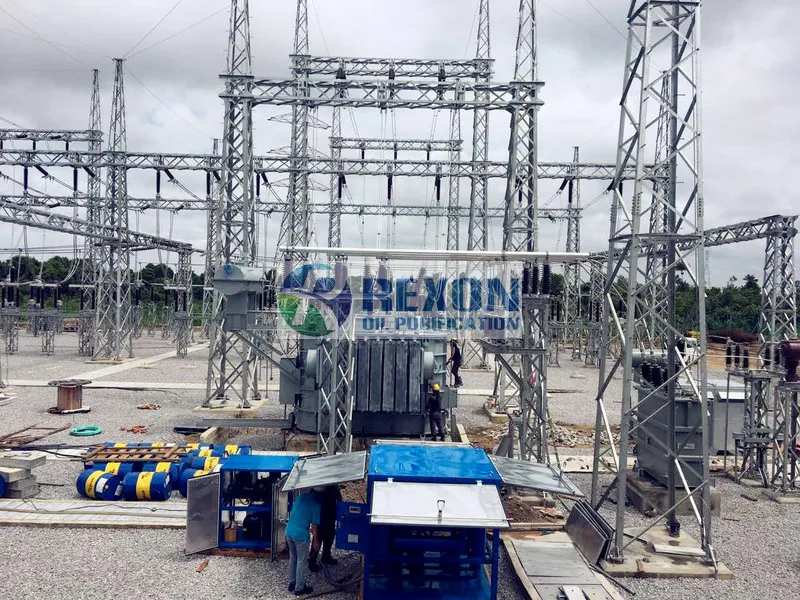

Onsit Project

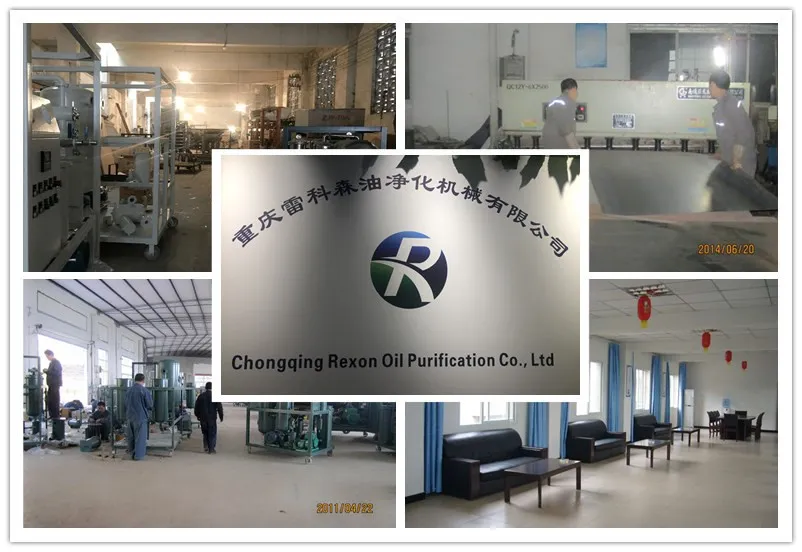

Factory View

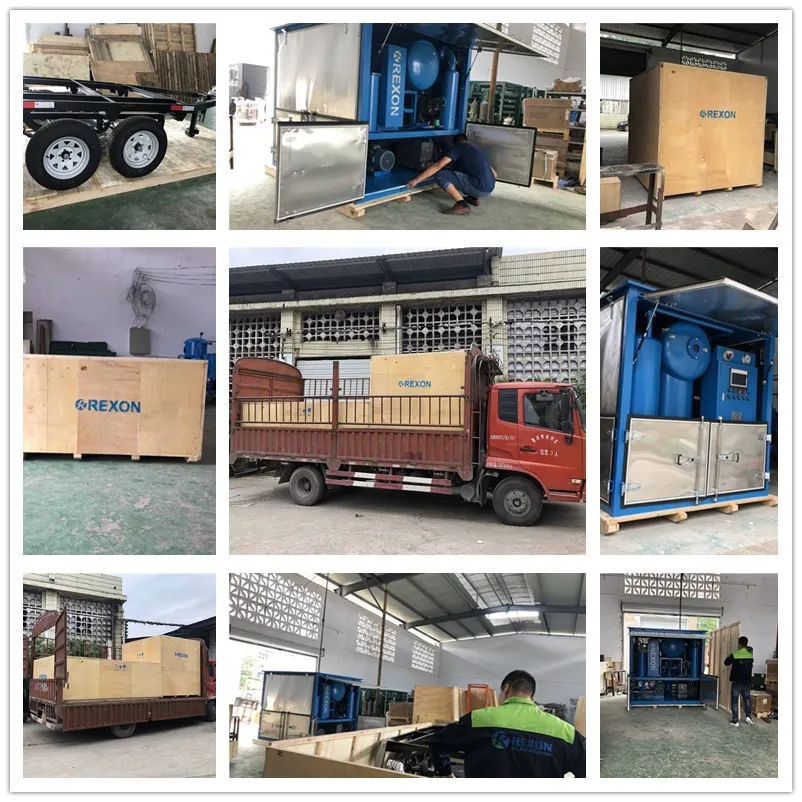

Packing & Delivery
We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.
For more information about any model of our oil purifier's specs, please leave us your Email, Tel, Mobile No. etc. then we can feedback to you immediately.
Or you can contact us directly from our website. Don't hesitate to send us enquiry now! Welcome to visit us!
-Transformer Oil Dehydration
-Transformer Oil Degasification
-Transformer Oil Filtration
Oil Purifier Technical Features:
1. Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa.
2. Being able to remove water and gas fast and effectively under high vacuum and high speed operation status, which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating.
3. Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.
4. The advanced infrared level automatic control system, interlocking control for pressure protection and power heating system ensures long-term safe and reliable operation.
Use:
To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer.
REXON Hi-Vacuum transformer oil treatment, Transformer oil processor, Vacuum dehydrator and degasification
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil
Hi-Vacuum transformer oil treatment is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV,220KV,500KV,750KV,1000KV power transmission equipment insulating oil.
Also it applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.
Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum filling.
Insulating oil performance mainly decided by oil's water content, If the water is not saturation in the oil, it appears as the molecular states; If the water is saturation in the oil, it appears as the liquid states and stay at the bottom of container.
Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump.
The higher vacuum value(Close to 0 Pa),the higher speed of water molecular volatilization(The latest technology, the vacuum oil purifier can reach to 1 Pa working vacuum value).
The gas and water which dissolved in the oil will become degassed and exhausted by vacuum pump.
The oil temperature affects vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular.
But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad.
So we don't suggest the oil temperature excess 80°C. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.
Application:
Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil, Dielectric Oil Purifiation System is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500-1000 meters. It can deal with contaminted transformer oil, mutual oil, switch oil, insulating oil, dielectric oil and so on. It can remove the free and dissolved water, gas and particles from oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The dielectric value of treated oil is higher than 75~85KV. It is very suitable for the large electric&insulation equipments.
Feature:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa.
2. Big capacity of moisture ands gas separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, which can purify oil high efficient and make oil highly pure.
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system and foaming elimination system to ensure machine operating easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. It can be operated both online and offline of transformers.
9. Can be used independent device for vacuuming transformers which are above 110KV and can vacuum oil filling for power equipment.
10. Can work online for 150 hours continuously, high reliable and long time running.
11. Can be installed by PLC programming control system to achieve machine working fully automatically.
Advantage:
REXON Vacuum Processing Dielectric Oil Purification Machine Dewater and Degas from Oil, is a high capacity oil treatment machine for onsite transformer oil processing. It can deal with 18000liters oil per hour, to achive a fast oil dehyration, oil degassing process. It can quickly remove water, trace water, dissolved gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil's dielectric strength highly, and effectively making sure electric equipments working safely and normally. ZYD-150 sytem also can be used an independent vacuum power supply, which can vacuuming and oil injecting tranformers and other electric insulation devices.
Technical Parameters:
| Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
| Working Vacuum | Mpa | -0.08 ~-0.099 | |||||||
| Working Pressure | Mpa | ≤ 0.3 | |||||||
| Temp Range | ºC | 20 ~80 | |||||||
| Power Supply | 380V, 50Hz, 3Phase( As per required) | ||||||||
| Working Noise | Db | 60 - 80 (Depended on the configuation) | |||||||
| Heating Power | KW | 30 | 30 | 48 | 72 | 72 | 90 | 120 | |
| Total Power | KW | 33 | 35 | 55 | 80 | 82 | 102 | 135 | |
| Inlet/Outlet Diam | MM | 25 | 32 | 42 | 50 | 50 | 60 | 60 | |
| Weight | KG | 450 | 550 | 750 | 950 | 1200 | 1850 | 2000 | |
| Size | Length | MM | 1450 | 1450 | 1750 | 1850 | 1950 | 2050 | 2150 |
| Width | MM | 950 | 1000 | 1250 | 1300 | 1350 | 1400 | 1450 | |
| Height | MM | 1700 | 1750 | 1950 | 2000 | 2050 | 2100 | 2150 | |
| AFTER TREATMENT | |||||||||
| Dielectric Strength | KV | ≥ 75-85 | |||||||
| Water Content | PPM | ≤ 3 | |||||||
| Gas Content | % | ≤ 0.1 | |||||||
| Particle Size | μ | ≤ 3 | |||||||
| Cleanliness ≤NAS 1638 Grade 5 | |||||||||
Our Transformer Oil Purification and Maintenance Machines can bring you:
→Purifying your transformer oil high efficiently
→Maintain your transformer oil always in good status
→Save your old transformer oil replacement cost
→Solve your waste transformer oil disposal problem
→Guarantee your transformers working normally with qualified oil property
→Protect your transformers and power equipment from oil pollution problems
→Reduce your maintenance time, energy and invest on transformers and power plant
→Create a safety and cleaning oil use environment for your transformers of power station
→Bring a green oil ideal to the world and save oil energy for all of our generations
Customer Visit
Onsit Project
Factory View
Packing & Delivery
We are the biggest leading manufacture of oil purifiers for all kinds of used or new oils in China. We supply best quality machines and offer professional technical support, A-class after-sales-service for customers. Our price is competitive and we take responsibility to guarantee any quality uncertainty. We design and produce our oil purifier machines with high quality raw materials and mature-technology by lots of well qualified technicians and skilled workers.
For more information about any model of our oil purifier's specs, please leave us your Email, Tel, Mobile No. etc. then we can feedback to you immediately.
Or you can contact us directly from our website. Don't hesitate to send us enquiry now! Welcome to visit us!
