Product Description

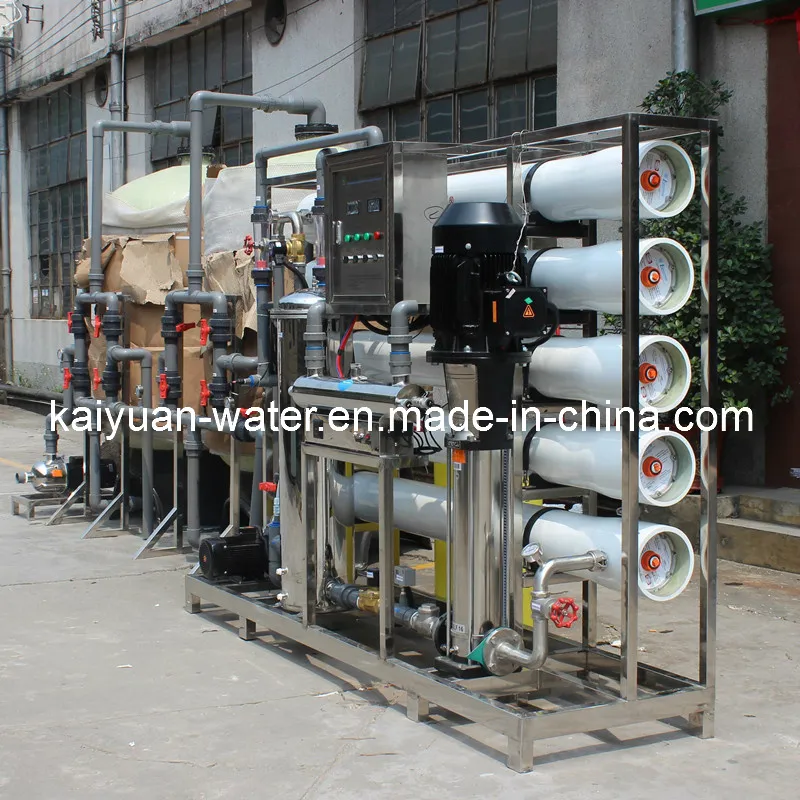

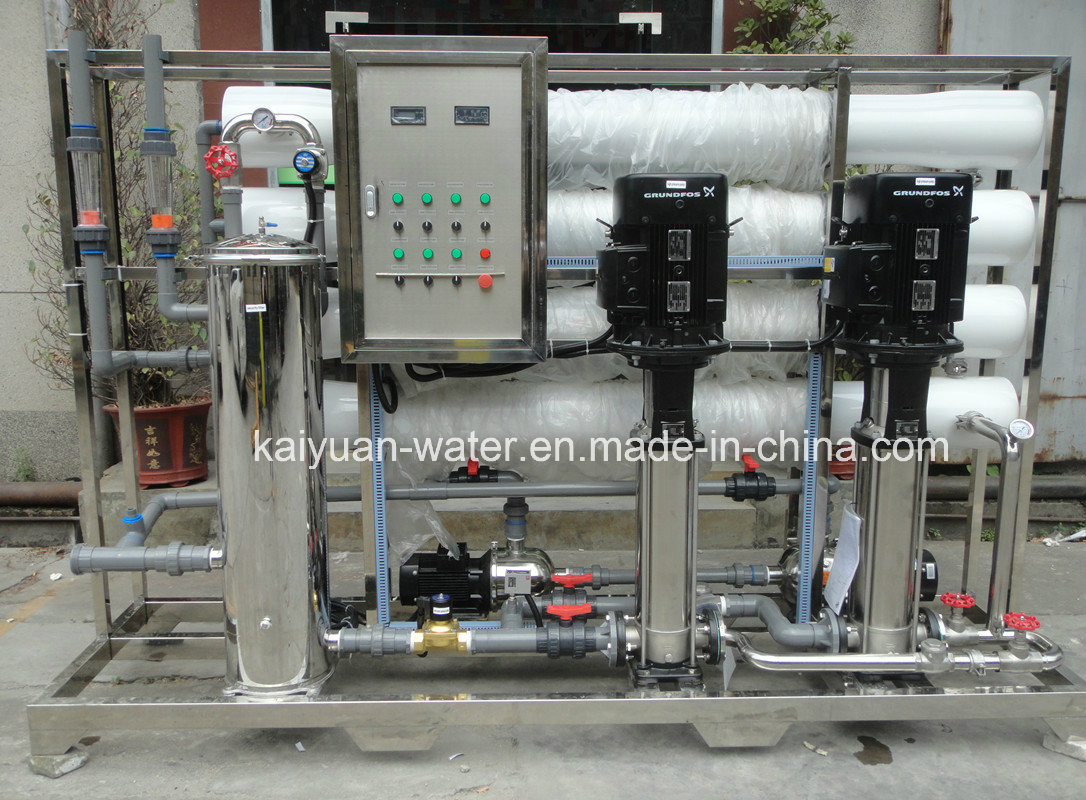

8T/H industrial reverse osmosis system/ water treatment plant with price

We're a professional manufacturer and exporter concentrating on designing, studying and developing and producing reverse osmosis water treatment equipments. Our water treatment machines can be used for purifying sea water, borehole salty water, underground water, well water, lake water, river water, tap water

The purified water can be used for drinking water, bottled water, electric power industry, cosmetic products, food industry, hotel, school, hospital, laboratory

Working process
Raw water tank → Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV light(optional)→pure water tank(or bottled water filling production line)

Main parameters

Model	KYRO-8000
Production capacity	8000 L/Hr
Power	13.5kw
Power supply	AC 380V 50Hz
Reverse osmosis (RO)membrane	BW30-400 8pcs USA DOW
Membrane housing	8080 FRP 4pcs
Raw water pump	CHL12-30 1.8kw
Quartz sand filter, activated Carbon filter	φ1200×2300 FRP 2pcs
Security filter	40 "× 5μm , 10pcs
High pressure pump	CDL12-16/11KW 1set Nanfang
Activated carbon	500kg
Quartz sand	1800kg

Function of each part of water treatment plant
1.Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump-- Provide the high pressure to RO membrane
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator--- kill bacteria

Production capacity we can provide as below

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension L X W X H(mm)
KYRO-250	250	1.5	≥ 15%	4040	1550X620X1670
KYRO-500	500	1.5	≥ 50%	4040	1650X630X1800
KYRO-750	750	2.5	≥ 50%	4040	1870X 630 X 1850
KYRO-1000	1000	2.5	≥ 50%	4040	1870X 650 X 1850
KYRO-2000	2000	3.5	≥ 50%	4040	2440X650X1750 (host machine)
KYRO-3000	3000	4	≥ 50%	4040	2440X620X1850 (host machine)
KYRO-5000	5000	7.5	≥ 50%	8040	2000X900X1800 (host machine)
KYRO-6000	6000	9.5	≥ 60%	8040	3000X900X1800 (host machine)
KYRO-8000	8000	13.5	≥ 60%	8040	3000×900×1800 (host machine)
KYRO-9000	9000	14	≥ 60%	8040	4000X900X1800 (host machine)
KYRO-10T	10T/H	19	≥ 60%	8040	3000X900X1800 (host machine)
KYRO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800 (host machine)
KYRO-15T	15T/H	23	≥ 60%	8040	4000X900X1950 (host machine)
KYRO-20T	20T/H	28	≥ 60%	8040	5000X900X1950 (host machine)
KYRO-30T	30T/H	55	≥ 60%	8040	7000X900X1950 (host machine)
