Home > Products > Reverse Osmosis System > Manufacturer of 250LPH (1500GPD) RO Water Purification System

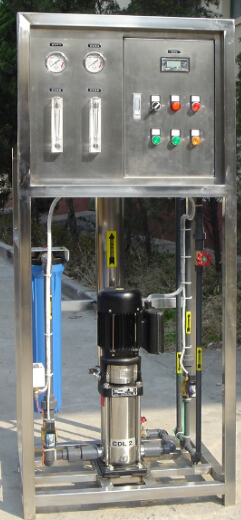

Manufacturer of 250LPH (1500GPD) RO Water Purification System
500LPH Reverse Osmosis SystemAuto Series:1. Stainless Steel 304 Frame2. Sand Filter FRP Tank with Auto Control Valve3. Carbon Filter FRP Tank with Auto Control Valve4. Water Softener FRP Tank with Auto Control Valve5. Thin Film Composite Membranes6. Stainless Steel 304 RO Vessels Seamless7. Horizont......
Send Inquiry
Product Description

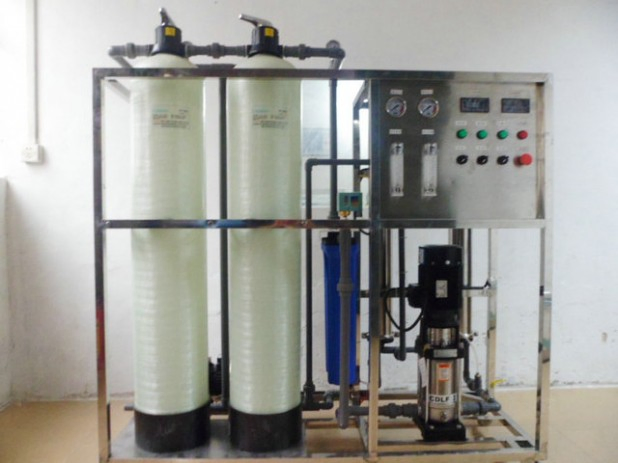

500LPH Reverse Osmosis SystemAuto Series:
1. Stainless Steel 304 Frame
2. Sand Filter FRP Tank with Auto Control Valve
3. Carbon Filter FRP Tank with Auto Control Valve
4. Water Softener FRP Tank with Auto Control Valve
5. Thin Film Composite Membranes
6. Stainless Steel 304 RO Vessels Seamless
7. Horizontal Feed Pump
8. Vertical High Pressure Pumps
9. PLC Control
10. Power On/Off Switch
11. 5 Microns Pre-filter
12. Product Water Flow Meter
13. Concentrate Water Flow Meter
14. High Pressure Pump Inlet Pressure Gauge
15. High Pressure Pump outlet Pressure Gauge
16. Concentrate Outlet Pressure Gauge
17. Low Pressure Switch
18. High Pressure Switch
19. Heavy-duty PVC Piping
20. Level Control On/Off
21. Automatic Flush
22. Low Pressure Shut-Off
23. Optional UV Sterilizer , Ozone and SS Jacket
| Product Code | Capacity (Minimum) | Membrane Quantity | Inlet Pipe | Motor | Multi-media Filter / AC Filter /Softner | DIMENSION LxWxH (CM) | Ship Weight |
| (KG) | |||||||
| HP3-1500 | 1500 GPD (250L/hr) | 4040 x1 | 3/4" | 1.0 HP | AUTO RUNXIN Control Valve | 170X90X185 | 180 |
| HP3-3000 | 3000 GPD (500L/hr) | 4040X2 | 3/4" | 1.0 HP | AUTO RUNXIN Control Valve | 170X90X185 | 200 |
| HP3-4500 | 4500 GPD (750L/hr) | 4040X3 | 1" | 2.0 HP | AUTO RUNXIN Control Valve | 170X90X185 | 220 |
| HP3-6000 | 6000 GPD (1000L/hr) | 4040X4 | 1" | 2.0 HP | AUTO RUNXIN Control Valve | 190X100X210 | 280 |
| HP3-9000 | 9000 GPD (1500L/hr) | 4040X6 | 2001/1/4 | 3.0 HP | AUTO RUNXIN Control Valve | 190X100X210 | 370 |
| HP3-12000 | 12000 GPD (2000L/hr) | 4040X8 | 2001/1/2 | 3.0 HP | AUTO RUNXIN Control Valve | 220X120X210 | 450 |
