Stainless/Fiber Glass Steel Water Treatment/Filter/Purifier/Purification//Purificacion De Agua System/Machine Equipment
RO Water Treatment / Purification SystemA. Product Description:Model: ES-10000 ROAFProduction Capacity: 10000L/HReverse osmosis mineral water purification plant / RO pure water purification system / river water purification machine includes silica sand filter, active carbon filter, sodium ion exchan......
Send Inquiry
Product Description
Model: ES-10000 ROAF
Production Capacity: 10000L/H

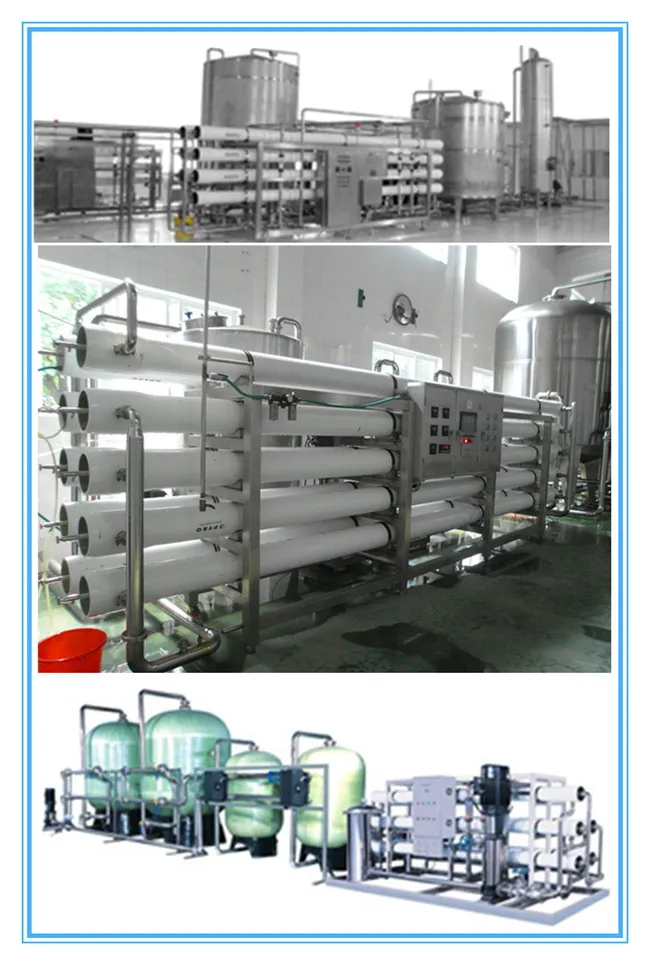

Reverse osmosis mineral water purification plant / RO pure water purification system / river water purification machine includes silica sand filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage.
Function Description:
The system uses mechanical filter & active carbon as pre-filtration, which will effectively remove the suspend substance, sand particle, organic colloid, organic colloid, organic compound, odor and odd Cl2 etc; And a softener will be used to exchange the Ca or Mg hydronium from the water; Finally the RO membrane will act as pre-desalination filter, to remove large majority of dissolved salt, bacterium etc; and use ozone sterilization system and ozone fresh keeper to assure the water quality to reach our water requirement.
Design Foundation:
- Water source: City tap water ≤1000 us
- Water output capacity:10000L/H(25ºC)
- Water treatment requirement: Correspond with water quality analysis report from clients;
- Water utilization rate: 50-75%;
- Operation: Full automatic PLC control, flux & water quality will display automatically;
- Water temperature: 5-35ºC;
- Station power4KW/220V/50Hz
- Chemical medicine: supplied by clients;

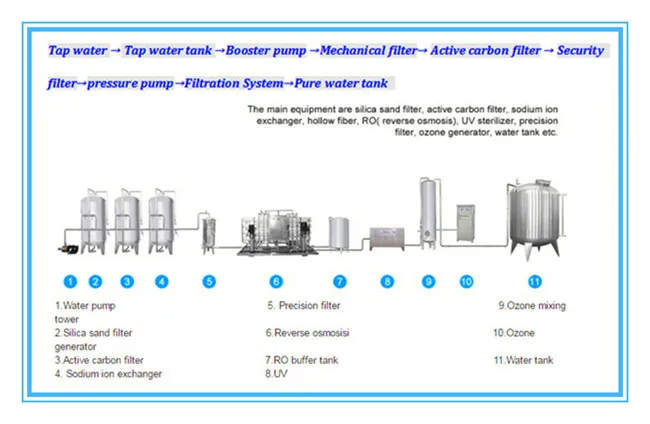

Flow Chart:
Commercial RO Water Filtration System :
| Item | Description | Quantity | Remark |
| Tap Water Tank | 2 m³ | 1 PC | Supplied by clients |
| Input valve | ND20 | 1 PC |
|
| 5um filter | 40"×10cm(H*D) | 1 pcs | Including 5 pcs filter |
| Mechanical Filter | 2000*300mm(H*D) | 1 PC |
|
| Manganese sand filter | 2000*300mm(H*D) | 1PC |
|
| Active Carbon Filter | 2000*300mm(H*D) | 1 PC |
|
| Security Filter | 10us | 5 SETS | / |
| Re-generator valve | DN25 (Diameter) | 2 PC |
|
| High Pressure Pump | Model: CDL4-14 | 2PC |
|
Booster pump | Model: CHL4-30 | 1PC |
|
| RO Membrane | Model: BW30HRLE8040 | 6 PCS |
|
| Pressure Container | 4040 x 2m | 3 Sets |
|
| Flux Meter | 35GPM | 2 PCS | / |
| Pipes | / | / |
|
| Electric Ball Valve | DN40 (Diameter) DN50 (Diameter) | 1 PC for each | / |
| Operation Panel | / | 1 SET |
|
| Body Frame | / | 1 PC |
|
| Electricity Conduction Rate Meter | Model: CM230 | 2PCS | / |
| Meter | 1MPa, 2.5Mpa | 2 PCS for each | / |
| Pressure Control Valve | DN25, DN20 | 1 PC for each | / |
| 0.22UM filter | 20"×1 | 3pcs |
|
| Pure water tank | 1T | 1pcs | S.S 304 supply by customer |
Working flow:
STEP<1>. Sand Filter: Use quartz sand media with a diameter of 2-4mm to remove some big suspended solids like colloids, rust, mud, impurity etc.
STEP<2>. Carbon Filter: Active carbon can absorb some organism, dissolved air, odor & color matter etc.
STEP<3>. Softener: Use cation exchange resin to remove Calcium, Magnesium etc. to make soft water.
STEP<4>. Security Filter: Use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment, so that to ensure the safety of the entrance of RO system.
STEP<5>. Reverse Osmosis: The nanometer RO membrane can intercept the inorganic salt, heavy metal ions, organic matter, colloid, bacteria, viruses and other impurities but H2O of the source water, so it can produce the pure water.

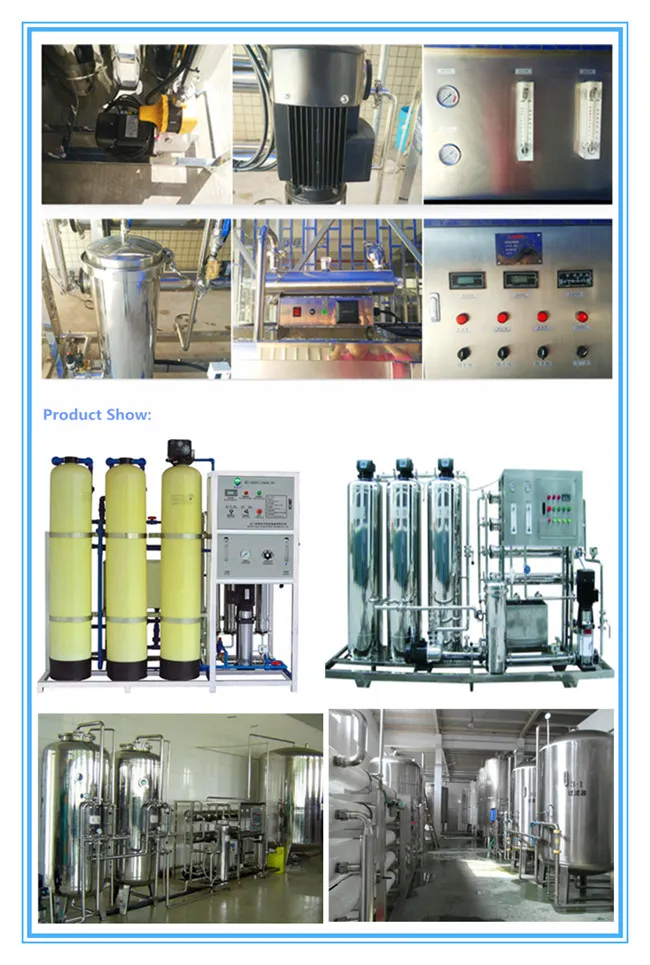

System components:
Filter:
--Silica Sand filter
When the water through the machine, it machine will stop suspend substance through the good quality silica sand. and also protect the following machines and also clean the water this machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine also.
-- Active carbon filter
This Active carbon filter is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army, station and dock. All in all, it is a really good water supply device for both industry and living.
--Sodium ion exchanger
This machine we also called softner , that Soften theory is Exchanging Na++ of resin itself instead of Ca++Mg++ of water resource with Ion to make water resource soften and become soft water.

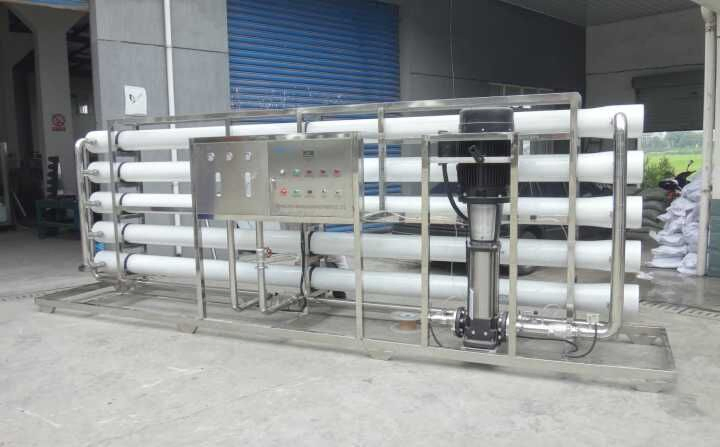

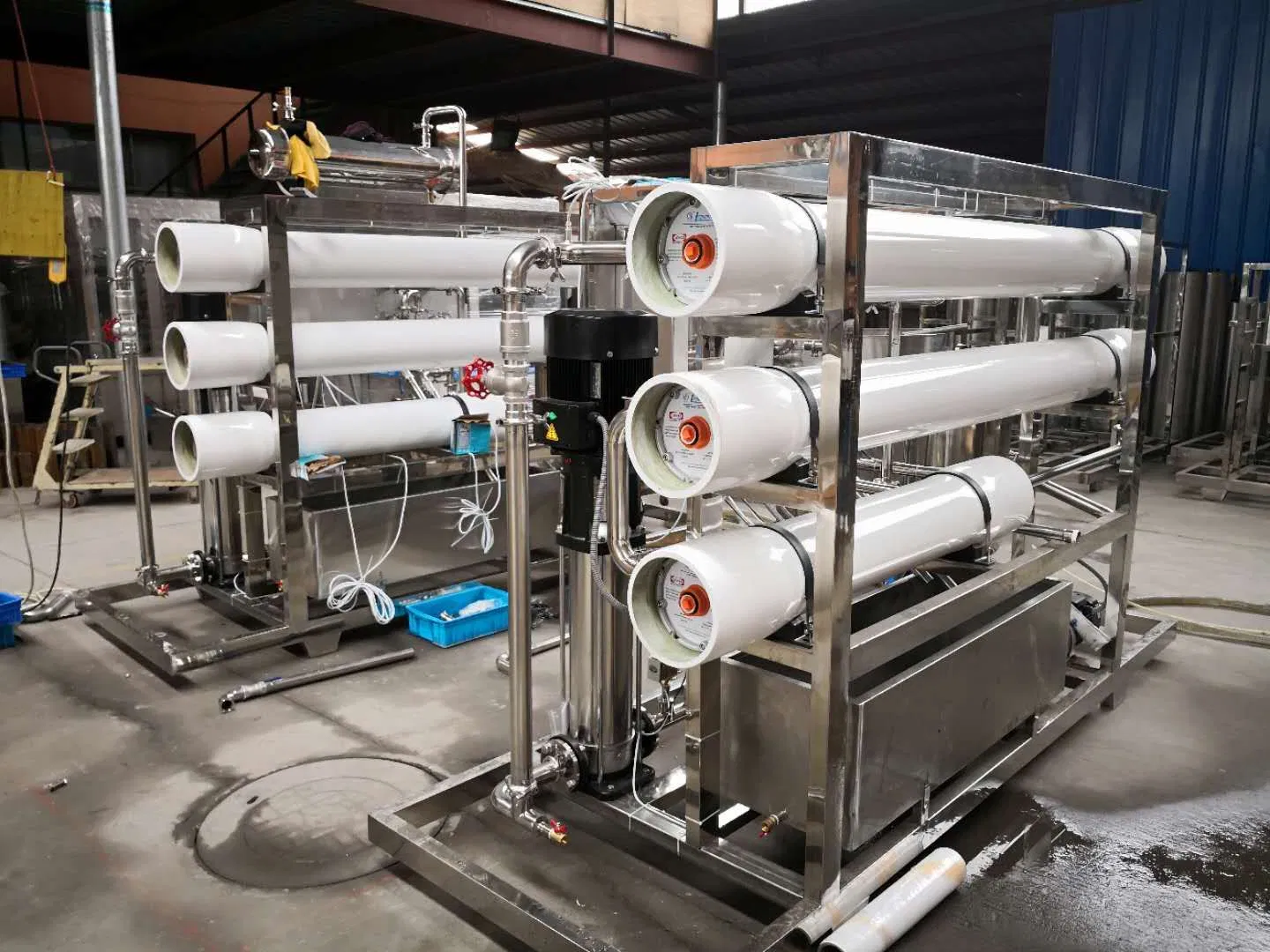

Reverse Osmosis:
The Reverse osmosis mineral water purification plant / RO pure water purification system / river water purification machine's key part is reverse osmosis membranes that is from the America, it has a good performan Drinking water making machine to eliminate salts and the high pressure pump is from a high quality pump producer in China, it's easy to handle for its simple structure. The source water, in the case that the conductivity is less than 300us/CM, can reach the national standards totally after treatment by this device, it's the most ideal equipment for water treatment.
UV sterilizer machine:
The Reverse osmosis mineral water purification plant / RO pure water purification system / river water purification machine adopt a high-intensity, long-lived UV germicidal lamp, the device is reasonable, compact, and adopts the structure of secondary disinfection, so health indicators completely according to the state standard.
B. Packaging & Shipping:

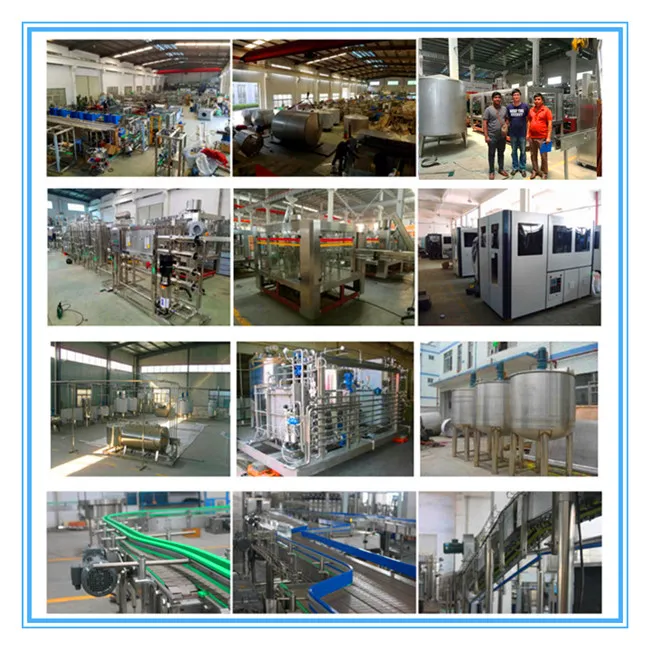

C. Company Information:
ES AQUA LTD is engaged in professionally researches, develops and manufactures beverage-packaging machinery and dairy packaging machinery. We bought several sets numerical control machines from American and Japan. The fixed assets of ESAQUA exceed USD 50 million. Since its foundation, ES AQUA has concentrated on a single area of beverage and water product packaging machinery. Recently, we already finished some researches and were going on some project, including "automatic high speed aseptic filling machine of liquid food", which is the state torch program, "mono-block filling machine of juice with pulp", "liquid milk & beverage continuous high-speed packing robot" etc. We took part in national standard making, and then we became the leader in the industry. Moreover, we cooperated with foreign and domestic famous enterprises, such as Pepsi, Bright Dairy, Robust, etc, also our products are exported to all over the world. The company always hold the philosophy of "the quality wins the market, the brand forms the success". We, full of enthusiasm and sincerity, warmly welcome domestic and overseas customers.
Main product of ES AQUA:
- The capacity is from 2000BPH to 36000BPH for hot filling, mid-temp filling, and aseptic cold filling lines.
- The capacity is from 2000BPH to 36000BPH for mineral water and pure water product line.
- The capacity is from 2000BPH to 20000BPH for carbonated beverage product line.
- The capacity is from 8000 to 15000 packs per hour for brick pack of aseptic milk packaging product line.
- The capacity is from 2000BPH to 30000BPH for beverage with particle product line.
- There are water treatment equipments.
- PET blow molding machine
- Beverage pre-blending and sterilizing system
D. Our Services:
What service ES AQUA LTD can offer you?
Your inquiry related to our product & price will be replied within 12 hours.
Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
Working time: 8:00am ~10:00pm, Monday to Saturday(UTC+8).
OEM & ODM projects are both available.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.
After Sales Service
One year warranty for the whole system .
Free equipment installation and debugging.
After one year , we can help you to maintain the machine and the accessories are provided
only one the cost price.
We can provide internship service and help you train the operator and mechanic.
Free production technology and process configuration.
We can help you to design the product line , workshop and provide turn-key project.
E. FAQ:
1.Do you supply Free samples (preform or cap)?
A: Yes, we can provide you free sample if there are in stock,but we don't include the delivery charge.
2. Can your factory provide the whole plant from A to Z?
A: Yes, we can provide a complete plant from blowing plant , water purification plant to filling & packing plant.
3. Are all machinery your factory made?
A: Yes, Our factory made the water purification plant and filling & packing plant, we do not make the bottle making machine, but we have good quality bottle making machine partner, and we can provide to customer same long warranty time and good after service.
4. How can I know the machinery quality before I order?
A: Firstly, we will invite you visiting our factory to cherk the machines quality, and show the machines running for you in our factory
5. What certification you can provide?
A: Our factory can provide the CE,ISO,ETC,which will according to some counties, we also can provide Pvoc,Coc,Soncap…and so on.
6. Can you factory make the bottle drawing, factory layout and label designs for us?
A: We can help customers design their owner bottle shape, workshop and label drawing, there jobs are free charge. (Workshop need customer to provide the size of factory )
7. Installation and Training time
A: We have professional engineer for oversea installation and training who have much experience oversea work.
